Honeywell TC-MUX021 Serial Interface 2 Channel

Overview

The TC-MUX021 Serial Interface Module is a double slot-width module designed for robust industrial communication. With two configurable communication ports, it supports multiple interfaces and protocols, offering flexible connectivity for various automation needs.

Features

• Module Type: Double slot-width for efficient installation.
• Ports: Two communication ports, configurable per Field Termination Assembly (FTA).
• Interface Options: EIA RS-232D (DB-25) or EIA RS-422/485D (5-terminal compression).

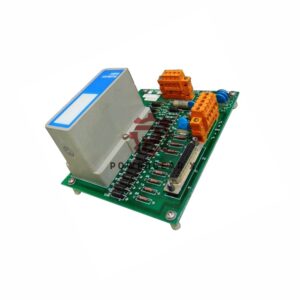

• Compatibility: Supports FTAs including MU-TSIM12 (Modbus) and MU-TSIA12 (Allen-Bradley DF1).
• Power Efficiency: Consumes 10 watts with detailed backplane current data available.
• Rugged Design: Resists vibration (10–50 Hz, 5 g), shock (30 g, 11 ms), and electrostatic discharge (up to 15 kV).
• Noise Resistance: Operates reliably under 10 v/meter interference.
• Dielectric Strength: Withstands 500 V to ground.
• Connection: Pairs with the TC-KSM003 power adapter cable.

Technical Specifications

• Model Number: TC-MUX021
• Brand: Honeywell
• Maximum Communication Speed: 19.2 kb/s per FTA.
• Electro-static Discharge (ESD): 2–15 kV on case, 10 kV on RS port lines.
• Noise Resistance: Operates reliably with 20 MHz–100 MHz interference.

For more detailed information, please check official datasheet: C200-introduction
