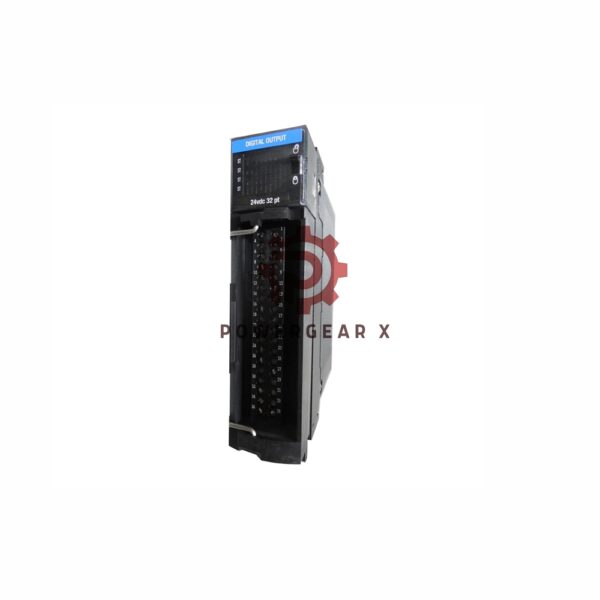

Honeywell TC-ODD321 32-Point Discrete Output Module

Overview

The Honeywell TC-ODD321 24 VDC 32-Point Discrete Output Module delivers high-performance capabilities for industrial automation systems. Designed for reliability, it accommodates diverse applications requiring precise digital output control. With advanced features and robust specifications, it integrates seamlessly into critical control environments.

Technical Specifications

• Brand: Honeywell
• Model: TC-ODD321
• Output Voltage Range: 10–31.2 VDC @ 50°C, 10–28 VDC @ 60°C.
• Output Current Rating:
  • Per Point: 0.5A @ 50°C, 0.35A @ 60°C.
  • Per Module: 16A @ 50°C, 10A @ 60°C.
• Fusing: Not internally protected; fused IFM recommended.
• Reverse Polarity Protection: None (incorrect wiring may damage outputs).
• Isolation Voltage: 2546V DC for 1 second, tested between user and system.
• Power Dissipation: 6.1W.
• Off-State Leakage: Maximum 0.5 mA per point (1 mA for IEC 1131-2).
• Connection: TC-TBCH, 36-position terminal block.

FAQ

1. What type of connection is used with the TC-ODD321?
It uses a TC-TBCH 36-position terminal block for efficient wiring.

2. Is the module protected against reverse polarity?
No, incorrect wiring may damage the module outputs.

3. What fault states are configurable?
Each point can be configured to Hold Last State, ON, or OFF, with OFF as the default.

4. What is the power dissipation of the module?
The module dissipates 6.1W during operation.

5. What is the isolation voltage rating?
The module supports a maximum continuous isolation voltage of 250V AC between groups.

For more detailed information, please check official datasheet: C200-introduction
