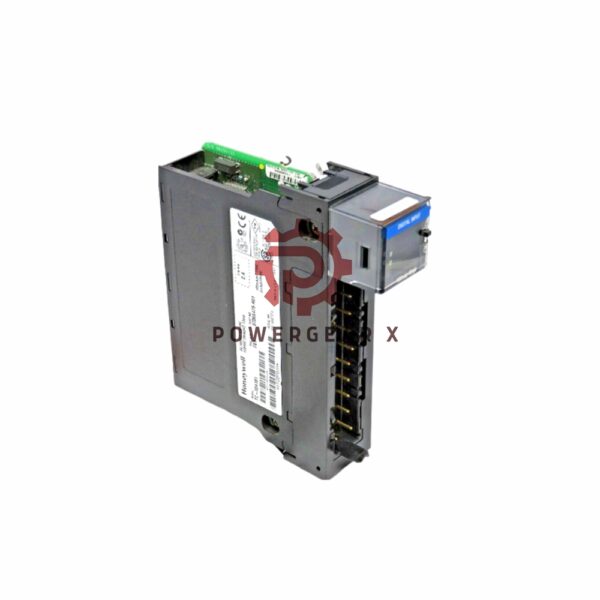

Honeywell TC-ODK161 Isolated Discrete Output Module

Overview

The TC-ODK161 is a 16-point isolated discrete output module designed for applications requiring precise and reliable output control. Capable of handling 120/220 VAC with a wide output voltage range (74-265 VAC, 47-63 Hz), this module provides robust performance across various industrial automation systems. It is widely used in sectors such as manufacturing, process control, and industrial automation.

Technical Specifications

• Model: TC-ODK161
• Output Voltage Range: 74-265 VAC, 47-63 Hz
• Current Rating:
  • Per Point: 2.0 A max at 30°C, 2.0 A max at 60°C
  • Per Module: 5.0 A max at 30°C, 4.0 A max at 60°C
• Surge Current: 20 A for 43 ms, repeatable every 2 seconds at 60°C
• Off-State Leakage Current: 3 mA per point (maximum)
• On-State Current Minimum: 10 mA per output
• Maximum Inhibit Voltage: 60 V peak
• Output Signal Delay:
  • Off to On / On to Off: 9.3 ms @ 60 Hz, 11 ms @ 50 Hz
• Power Dissipation: 9.6 W (maximum)
• Isolation Voltage:
  • Channel to Channel: 100% tested at 2546 VDC for 1s
  • User to System: 100% tested at 2546 VDC for 1s
• Connection Terminal Blocks: TC-TBCH, 36-position terminal block
• Mix-and-Match Voltage: Supports both 120 VAC and 220 VAC connections, allowing flexible configuration.

Frequently Asked Questions (FAQ)

1. Can the TC-ODK161 module handle both 120 VAC and 220 VAC simultaneously?
2. Yes, this module supports a mix of both 120 VAC and 220 VAC outputs, providing flexibility in configuring your system.
3. What is the maximum current rating per output point?
4. Each output point can handle up to 2.0 A at 30°C and up to 2.0 A at 60°C.
5. How does the isolation feature benefit my system?
6. The TC-ODK161 module provides isolation between channels and the system, helping to protect your equipment from electrical faults and ensuring safe, reliable operation.
7. What is the surge current rating for this module?
8. The module can withstand a surge current of up to 20 A for 43 ms, repeatable every 2 seconds at 60°C.
9. How is the TC-ODK161 module connected to the system?
10. The module uses a TC-TBCH, 36-position terminal block for secure and reliable connections.

For more detailed information, please check official datasheet: C200-introduction
