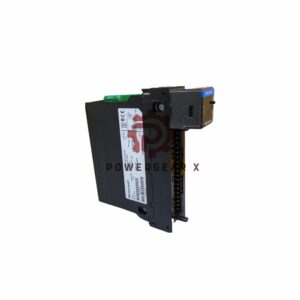

Honeywell TC-ODX161 Diagnostic Discrete Output Module

Overview

The TC-ODX161 is a 16-point diagnostic discrete output module designed for industrial applications. It operates with a 10-30 VDC power supply and features advanced diagnostic capabilities. With thermal overload, short/trip detection, and output verification, the module ensures reliable performance even under demanding conditions.

Features

• Voltage Range: 19.2-30 VDC on-state
• Current Rating:
  • Per Point: 2.0 A max @ 30°C & 1.0 A max @ 60°C
  • Per Module: 8.0 A max @ 30°C & 4.0 A max @ 60°C
• Surge Current: 4 A for 10 ms (repeatable every 1 second)
• Diagnostic Functions: Thermal overload, short/trip, no load detection, output verification, and pulse testing
• Pulse Test: Supports 6 A for 350 ms, 8 A for 180 ms, and 10 A for 120 ms
• Fault State: User definable On or Off
• Off-State Leakage: 1.0 mA max per point

Technical Specifications

• Model: TC-ODX161
• Power Dissipation: 5.1 W max
• Output Signal Delay:
  • Off to On: 1.0 ms max
  • On to Off: 5.0 ms max
• Isolation Voltage: 1500 VAC (RMS) output to backplane and between commons
• Connection Terminal Blocks: TC-TBCH, 36-position terminal block
• Brand: TC
• Product Type: Discrete Output Module
• On-State Voltage Drop: 1.2 VDC at 2.0 A

FAQ

1. What is the maximum output current per point?
   The maximum output current is 2.0 A at 30°C and 1.0 A at 60°C per point.
2. What is the function of the diagnostic features?
   The module includes thermal overload, short/trip detection, and output verification for enhanced system safety.
3. Can the fault state be configured?
   Yes, the fault state is user-definable as either On or Off.
