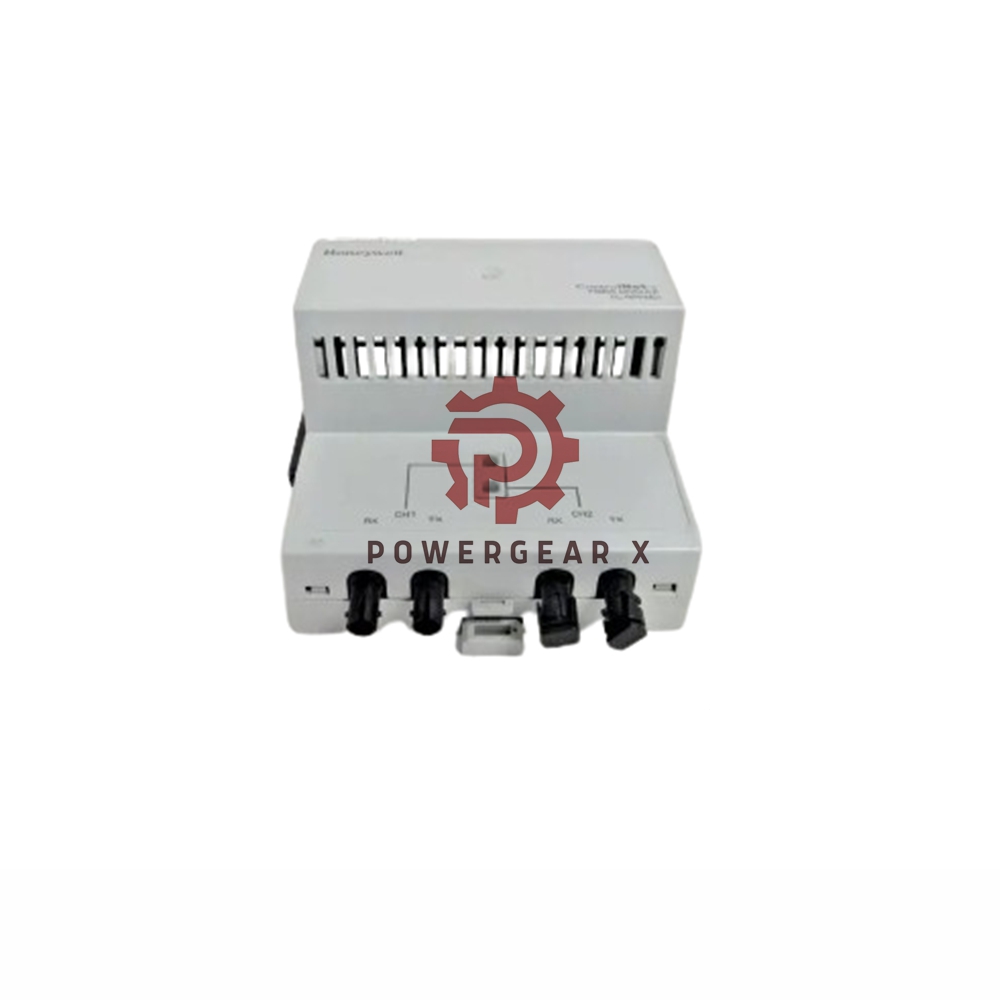

Honeywell TC-RPFM01 ControlNet Fiber Module

Overview:

The TC-RPFM01 Fiber Module is designed for use in non-hazardous locations and facilitates communication over ControlNet networks via fiber optic connections. It includes a repeater adapter module, providing high-quality and reliable data transmission with excellent isolation and power budget.

Features:

• High-Performance Communication: Supports up to 3 km (9,842 ft) fiber optic transmission distance.
• Optimized for ControlNet: Ideal for applications requiring robust data communication over long distances.
• Compatibility: Works seamlessly with the included Repeater Adapter module and vendor-specific TTL bus.
• Durability: Built to withstand industrial conditions with excellent shock and vibration resistance.

Technical Specifications:

• Brand: Honeywell
• Model: TC-RPFM01
• Power Supply: Powered through the Repeater Adapter module.
• Input Voltage: Power supplied via Repeater Adapter module.
• Fiber Optic Specifications:
  • Type: 62.5/125 micron
  • Termination: ST (Plastic or Ceramic)
  • Wavelength: 1300nm
  • Power Budget: 13.3 dB
• Transmission Distance: Up to 3 km (9,842 ft)
• Communication Rate: 5 Mbit/s
• Internal Bus: 30-pin male and female connectors for vendor-specific TTL Bus
• Galvanic Isolation: Per DIN EN 50 020 (TTL Bus / ControlNet)

Operating Conditions:

• Ambient Temperature: –20°C to 70°C (–4°F to 158°F)
• Storage Temperature: –20°C to 100°C (–4°F to 212°F)
• Humidity: 95% max, non-condensing
• Shock Test: 15g peak (11ms)
• Vibration Test: 2g (10Hz to 500Hz), IEC 68-2-6

Physical Specifications:

• Weight: 0.147 kg (0.32 lb)
• Dimensions:
  • Millimeters: 94 x 94 x 87
  • Inches: 3.7 x 3.7 x 3.4

For more detailed information, please check official datasheet: C200-introduction
