Housing Assemblies | Proximity Probe 21000-28-05-15-028-04-02

Overview

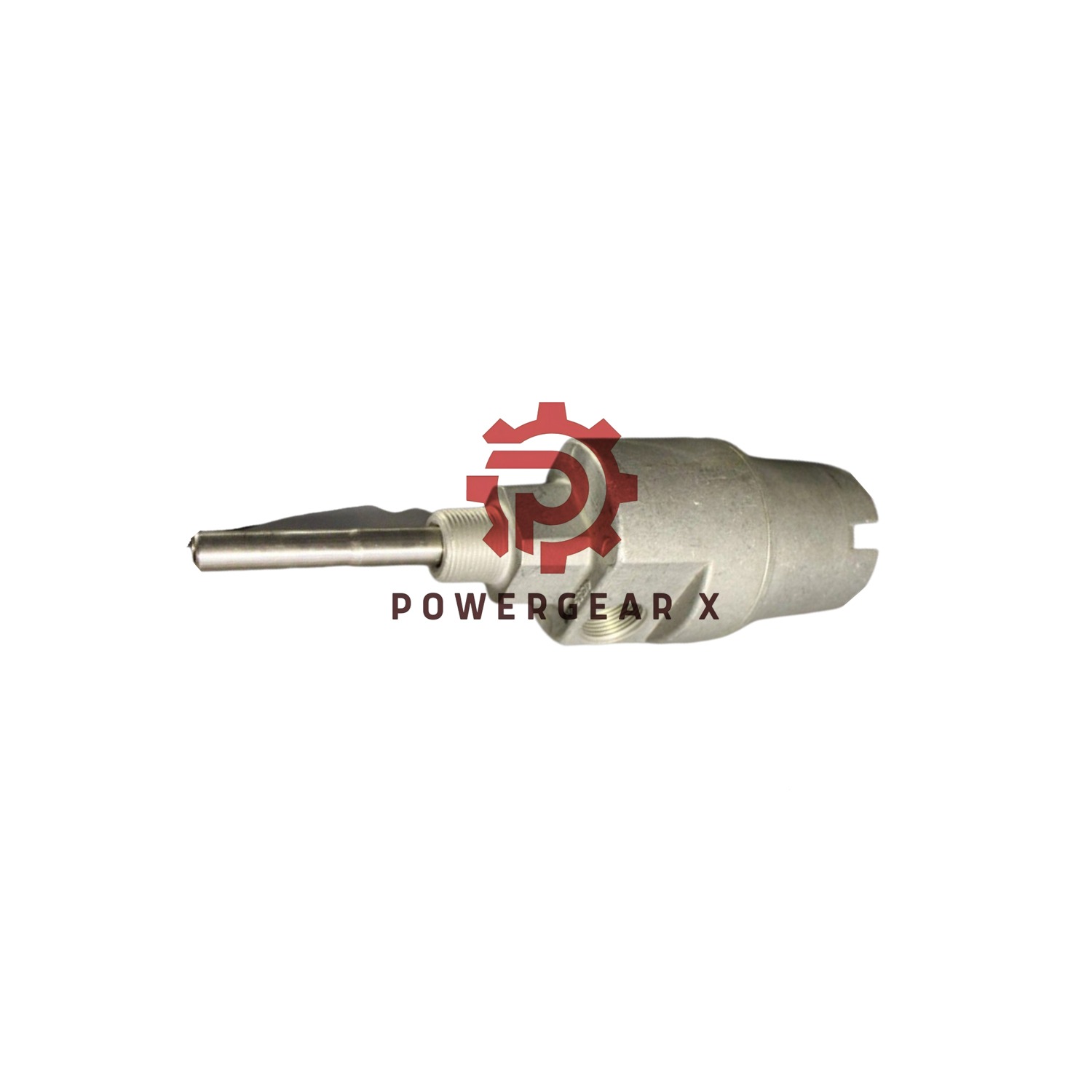

The Bently Nevada 21000-28-05-15-028-04-02 Proximity Probe Housing Assemblies are designed for precise vibration measurement and protection in industrial applications. Known for their robust build and versatility, these assemblies offer an explosion-proof housing suitable for hazardous environments. The aluminum body and 304 stainless steel sleeve provide superior durability and protection, ensuring the reliability of the probe in demanding conditions. These housings can be customized with various options, making them ideal for a wide range of industrial monitoring systems.

Technical Specifications

• Brand: Bently Nevada
• Model: 21000 Proximity Probe Housing Assemblies
• Part Number: 21000-28-05-15-028-04-02
• Condition: New & Original in Factory Packing
• Warranty: 12 Months
• Material: Aluminum body with 304 stainless steel sleeve
• Weight: 1.1 kg (2.4 lb), typical (without fittings)
• Certification: CSA Type 4 Enclosures, API 670 Standard compliant, explosion-proof for hazardous areas

Ordering Information

The ordering code for the Proximity Probe Housing Assemblies follows the format 21000 – AA-BB-CC-DDD-EE-FF, where each suffix represents different configuration options:

• A: Probe with Connector: 28 3300 XL 8 mm probe, hazardous area approvals
• B: Probe Cable Length: 05 (0.5 m / 20 in)
• C: Standoff Adapter Length: 15 (1.5 in / 38 mm)
• D: Probe Penetration: -028 (2.8 in)
• E: Fittings Option: 04 (One 3/4-14 NPT plug only)
• F: Mounting Thread Option: -02 (3/4-14 NPT)

Note: Probe penetration lengths between 1.0 and 2.0 inches may require counter boring the machine case to minimize side/rear view effects.

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
