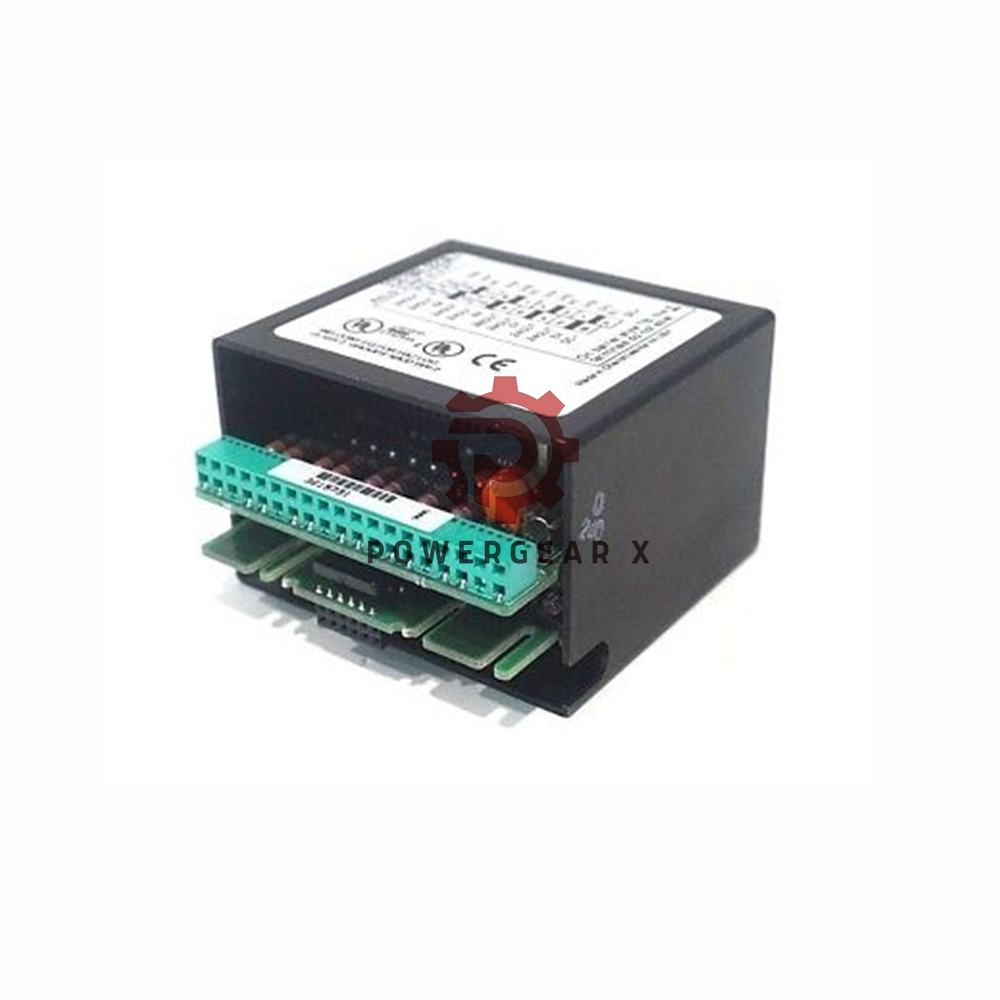

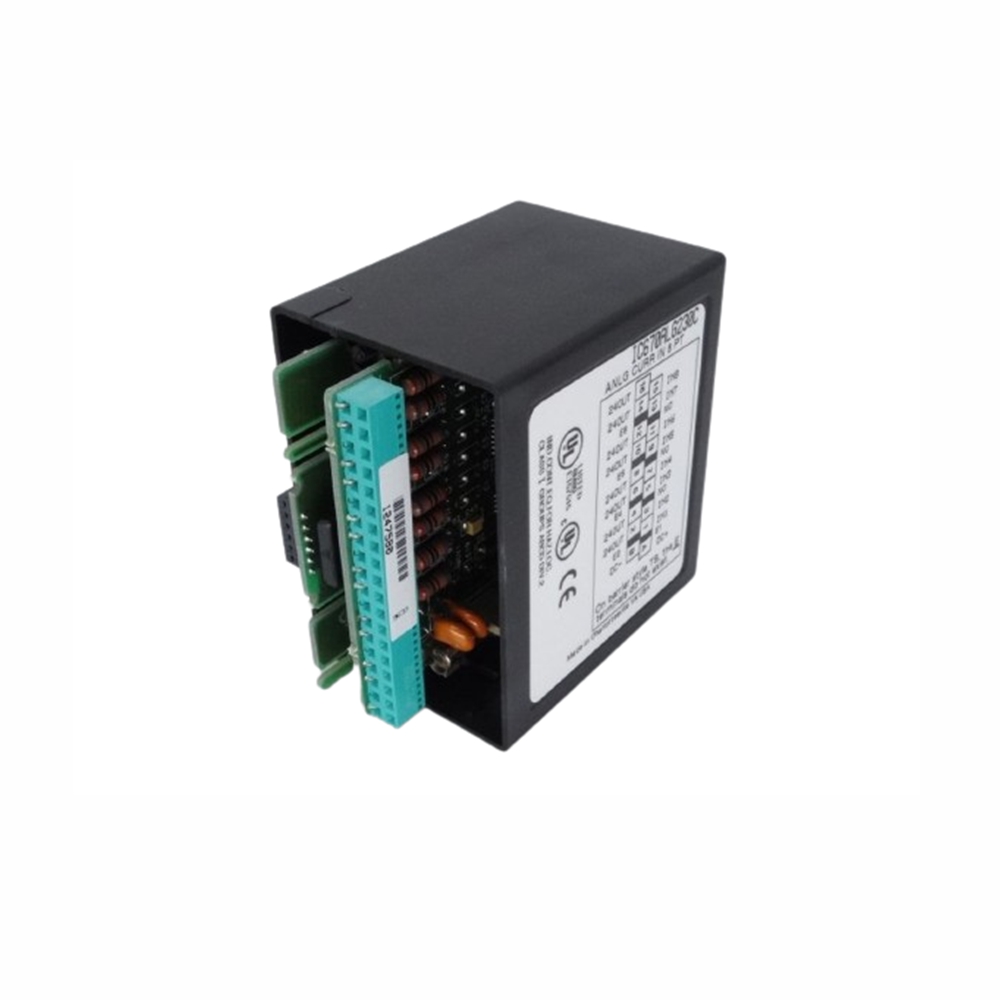

IC670ALG310 GE Fanuc 8 Point Isolated Analog Output Module

Overview

The GE Fanuc Rx7i PACsystem IC670ALG310 is a high-performance isolated analog output module designed for industrial applications. With its open architecture, it provides excellent flexibility for various control systems and automation environments. This module offers precise analog signal generation, ideal for systems requiring isolated outputs and high resolution.

Technical Specifications:

• Brand: GE Fanuc
• Model: Rx7i PACsystem IC670ALG310
• Suffix Meaning: The module does not have any specific suffix for its configuration, meaning it’s standardized.

Input Characteristics:

• Number of Output Channels: 8 (single-ended)
• Power Supply Range: 18V to 30V DC (24V DC typical), 5% maximum ripple
• Operating Temperature Range: 0°C to 55°C
• Isolation: 1500 VAC peak for 1 minute, 250 VAC continuous
• Current Draw:
  • From BIU power supply: 170 mA maximum
  • From external power: 275 mA maximum at 18V

Output Characteristics:

• Resolution: 14 bits
• Magnitude Data Size: 14 bits
• Accuracy:
  • At 25°C: 0.15% of full scale (maximum)
  • From 0°C to +55°C: 0.25% of full scale (maximum)
• Output Range: -10.25V to +10.25V
• Analog Resolution: Maximum resolution is in millivolts per count.
• Output Load Capacitance: 1 μF maximum
• User Load: 5000 Ohms minimum
• Update Time: 1.5 ms typical

For more detailed information, please check official datasheet. PACSYSTEMS RX7I
