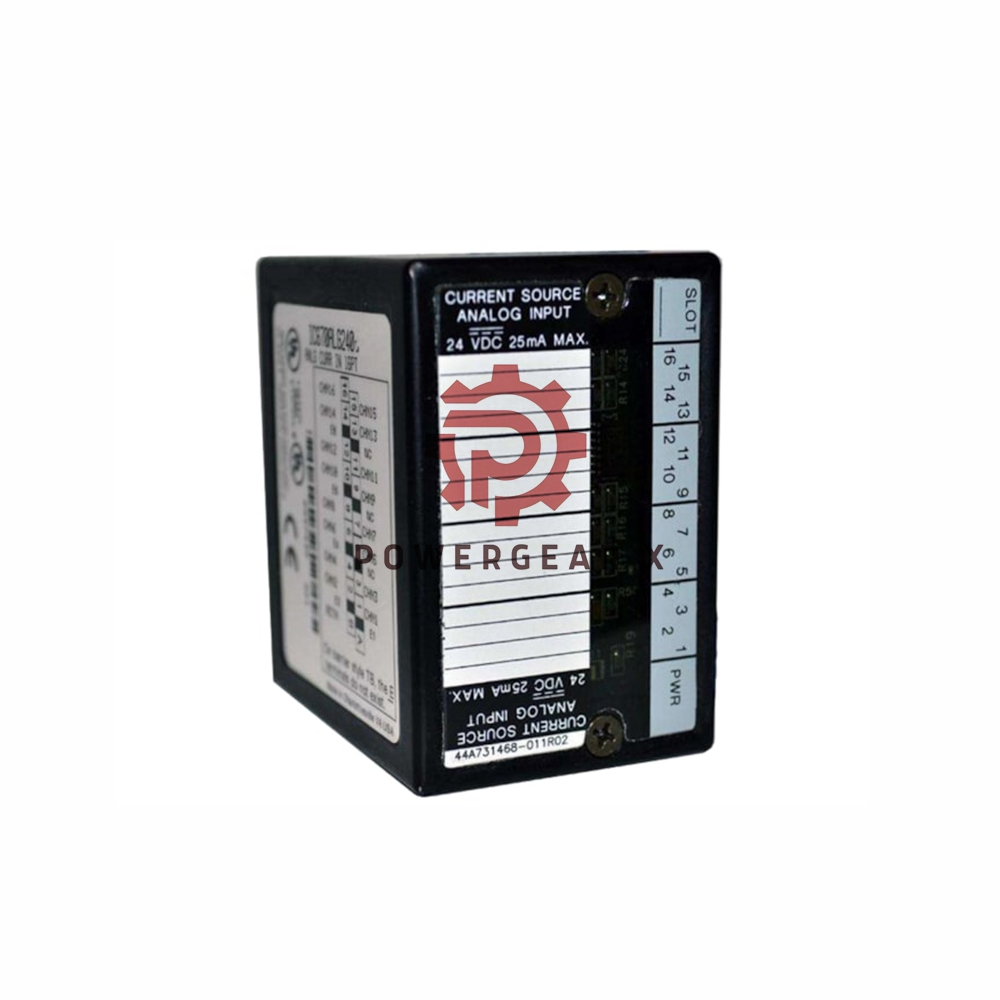

IC670ALG320 GE Fanuc Analog Output Module

Overview

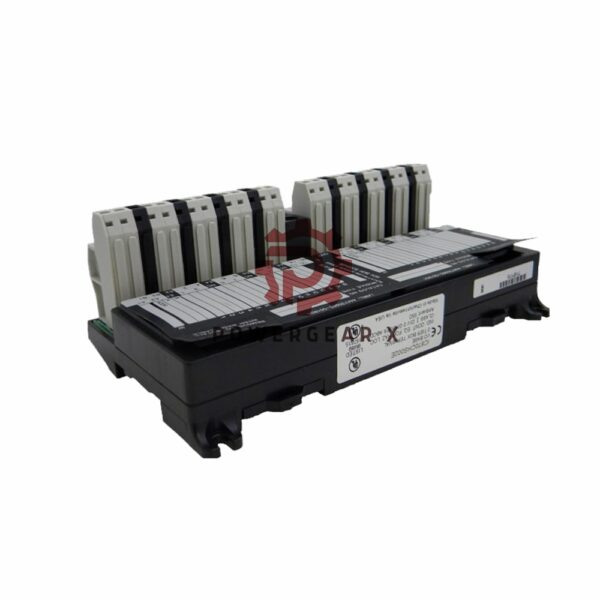

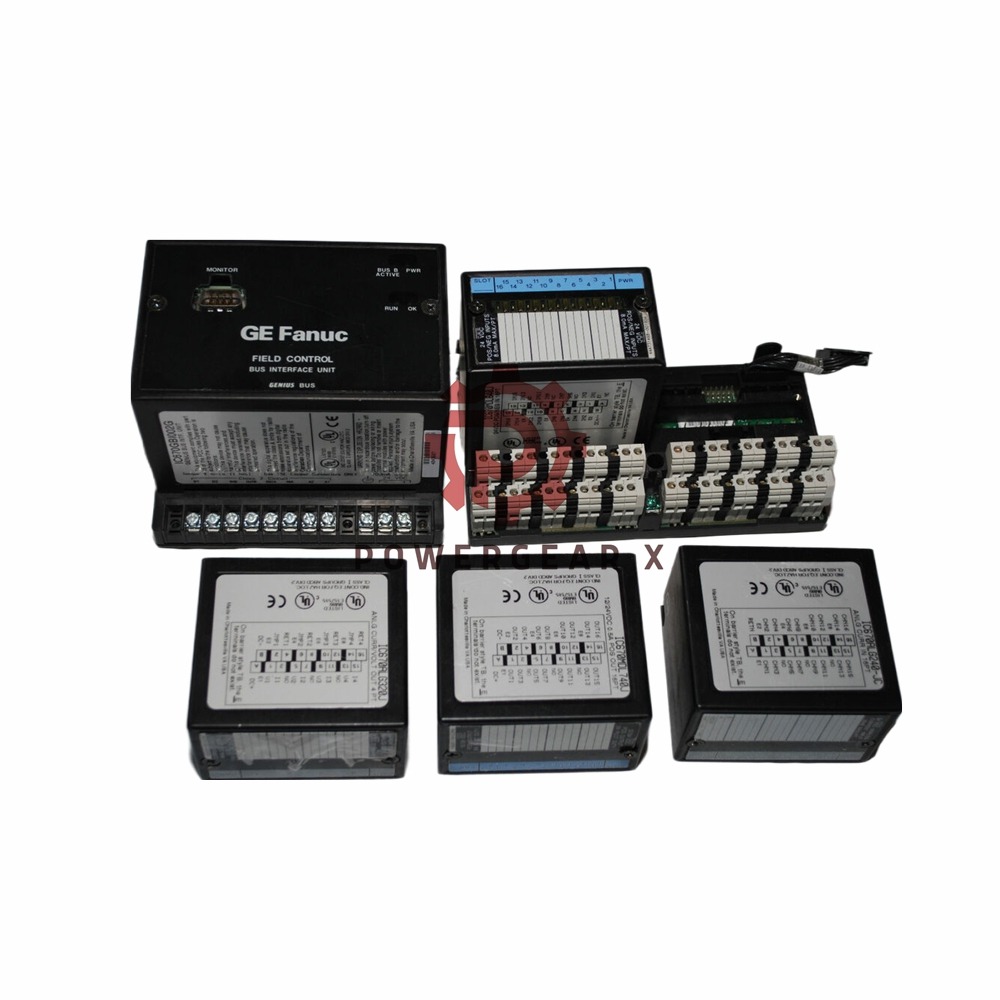

The IC670ALG320 is a 4-point analog output module from the Field Control series of GE Fanuc. It provides versatile output options, including 0-20 mA, 4-20 mA, and 0-10 VDC, with 12-bit resolution and a compact design. This module is suitable for various industrial applications that require precise analog output control.

Features:

• Four (4) single-ended output channels, configurable for current and voltage signals.
• Supports output signals of 0-20 mA, 4-20 mA, and 0-10 VDC.
• 12-bit analog-to-digital conversion resolution.
• Linearity of 1 LSB (Least Significant Bit) across all output ranges.
• Requires an external power supply with a typical voltage of 24 VDC.
• Isolation of 1500 VAC for 1 minute, ensuring protection against electrical surges.
• Compact, high-performance design for reliable signal output in industrial systems.

Technical Specifications:

• Brand: GE Fanuc
• Model: IC670ALG320
• Series: Field Control
• Channels: 4-point analog output
• Output Signals: 0-20 mA, 4-20 mA, 0-10 VDC
• Resolution: 12-bit ADC conversion, 4.0 µA (for 4-20 mA), 5.0 µA (for 0-20 mA), 2.5 mV (for 0-10 VDC)
• Power Supply: 20-29 VDC, typical 24 VDC, 5% maximum ripple
• Current Consumption: Standby: 80 mA, Operating: 180 mA
• Temperature Coefficient: ±0.002% of value per °C (typical)
• Wiring Configuration: Single-ended
• Isolation: 1500 VAC for 1 minute, 250 VAC continuous
• Module Power Dissipation: 1.4 to 4.3 Watts (min to max)

For more detailed information, please check official datasheet. PACSYSTEMS RX7I
