Product details
Overview

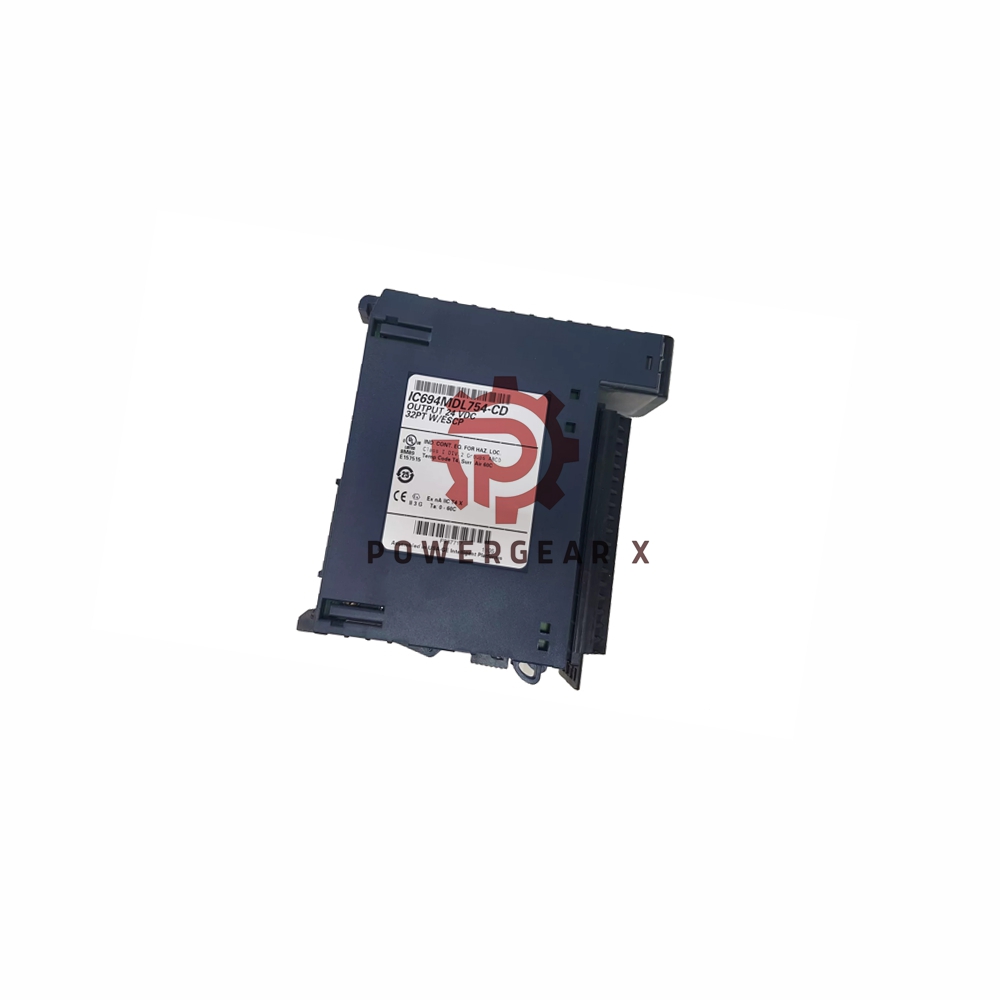

The IC694MDL754 is an advanced High-Density Discrete Output Module designed for use within the PACSystem RX3i platform. It features extensive electronic protection and enables seamless operation in various industrial applications. Originally developed by GE Intelligent Platforms and now managed by Emerson Automation, this module offers reliable performance and robust functionality for controlling various output devices.
Technical Specifications
- Brand: GE Fanuc
- Model: IC694MDL754
- Product Type: High Density Discrete Output Module
- Output Channels: 32
- Output Groups: 2 (each with 16 channels, isolated)
- Operating Voltage: 12 / 24 VDC
- Output Voltage Range: 10.2 – 30.0 VDC
- Output Current per Channel: 0.75 Amperes
- Response Time (Max): 0.5 ms
- Wiring Configuration: Positive Logic
- Short-Circuit Protection: Yes (with auto-recovery)
- Overcurrent Protection: Yes (up to 5 A trip)
- Overtemperature Protection: Yes (with auto-recovery)
- Inrush Rating: 3.0 Amps (for 10 ms)
- Backplane Current Draw: 300 milliamps (max)
- LED Indicators: 32 status LEDs
- Isolation (Field to Backplane): 250 VAC continuous; 1500 VAC for 1 minute
- Compatible Terminal Blocks: Box-style (IC694TBB032) / Spring-style (IC694TBS032)
- Location: RX3i PACSystems I/O slot
- Lifecycle Status: Active
FAQ
- What is the operating voltage for the IC694MDL754?
The module operates at 12/24 VDC, accommodating a variety of industrial power supply configurations. - How does the IC694MDL754 handle short circuits?
This module has integrated short-circuit protection that allows for auto-recovery, ensuring reliability and reducing downtime. - Where can I install the IC694MDL754?
The module can be installed in any vacant slot on the RX3i PACSystems controller rack. - What types of loads can it switch?
It is designed to switch positive logic outputs, allowing control over a range of external devices and systems.
Check official datasheet for more detailed information: IC694MDL754
