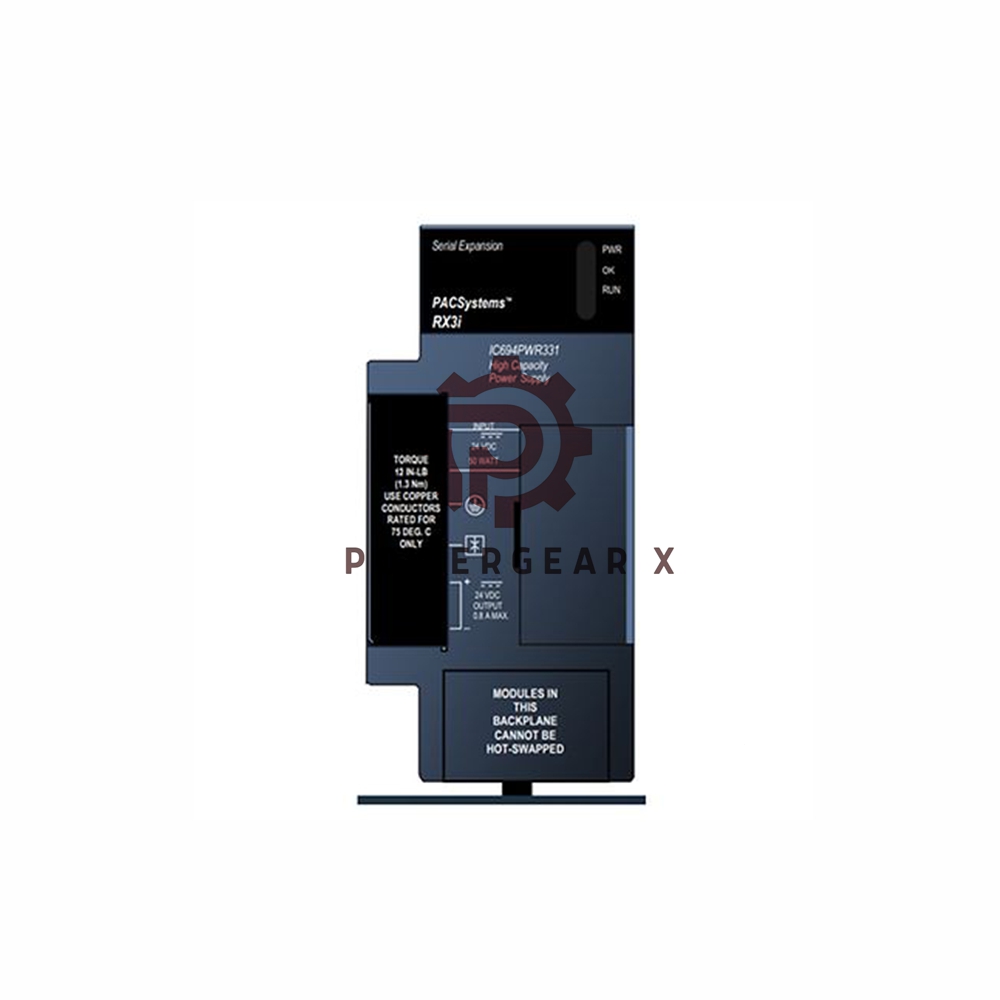

IC694PWR331 GE Fanuc | Power Supply Module

Overview

The IC694PWR331 is a robust power supply module designed for GE Fanuc’s RX3i PacSystems series PLCs. It provides reliable and stable power to ensure smooth operations in industrial automation environments.

Key Features:

• Power Supply Type: High-Capacity Power Supply
• Current Rating: 5 Amps
• Load Capacity:
  • 30 Watts at 5V DC
  • 20 Watts at 24V DC isolated output
  • 15 Watts at 24V DC relay output
• LED Indicators:
  • PWR: Indicates power is applied to the module.
  • OK: Shows whether the PLC is operating correctly.
  • RUN: Indicates the PLC is in the run mode.
• Fuses Supported: Bussman GMC-5-R fuse and 44A724627-114 fuse.
• Compatible Backplane: Serial Expansion Backplane.
• Input to Backplane Isolation Rating: 1500 Volts AC for 1 minute.

Technical Specifications:

• Brand: GE Fanuc
• Model: IC694PWR331
• Series: RX3i PacSystems
• Current Rating: 5 Amps
• Maximum Power: 30 Watts
• Output Voltages:
  • 5V DC, 24V DC isolated, and 24V DC relay outputs
• Copper Conductors: Must be rated for 75°C
• DIP Switch Configuration: Proper rack number selection for installation

Installation Guidelines:

Before installing, ensure that the expansion backplane’s rack number selection DIP switch is correctly set. It is essential to disconnect power before installation to avoid potential hazards.
