Overview

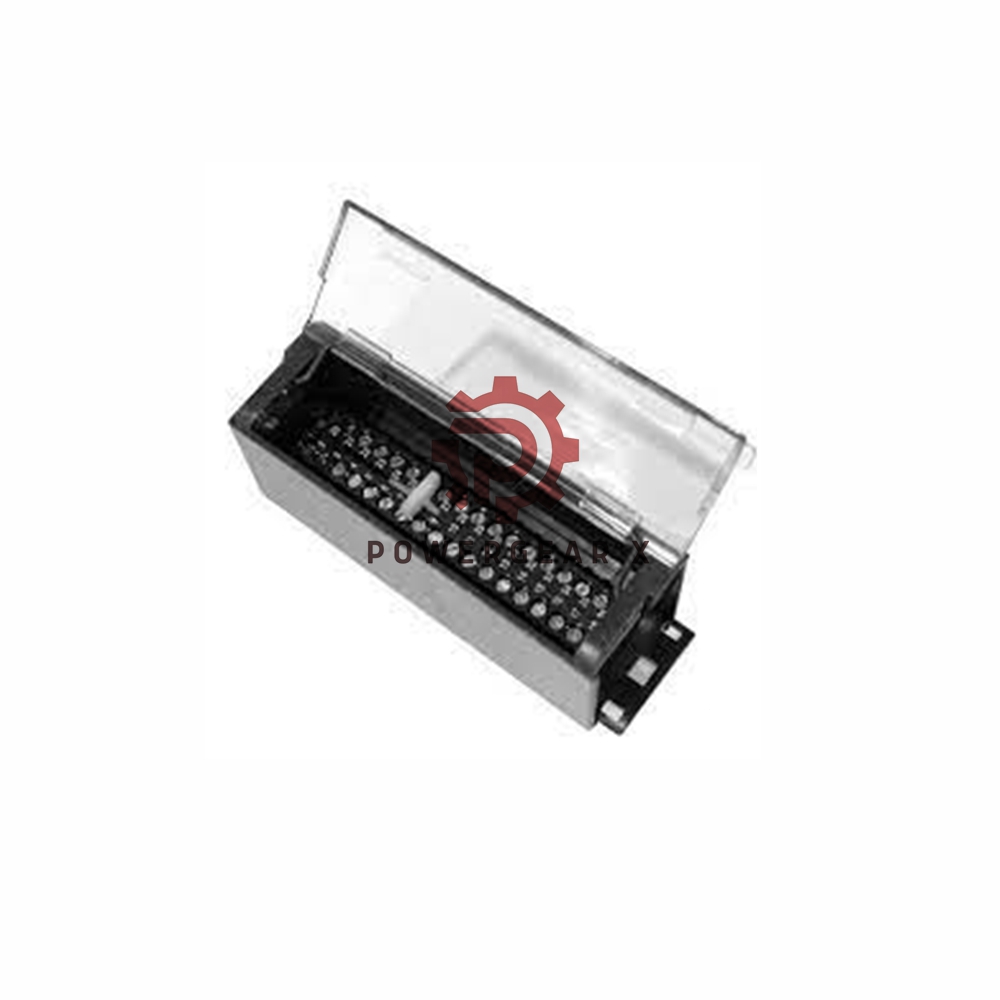

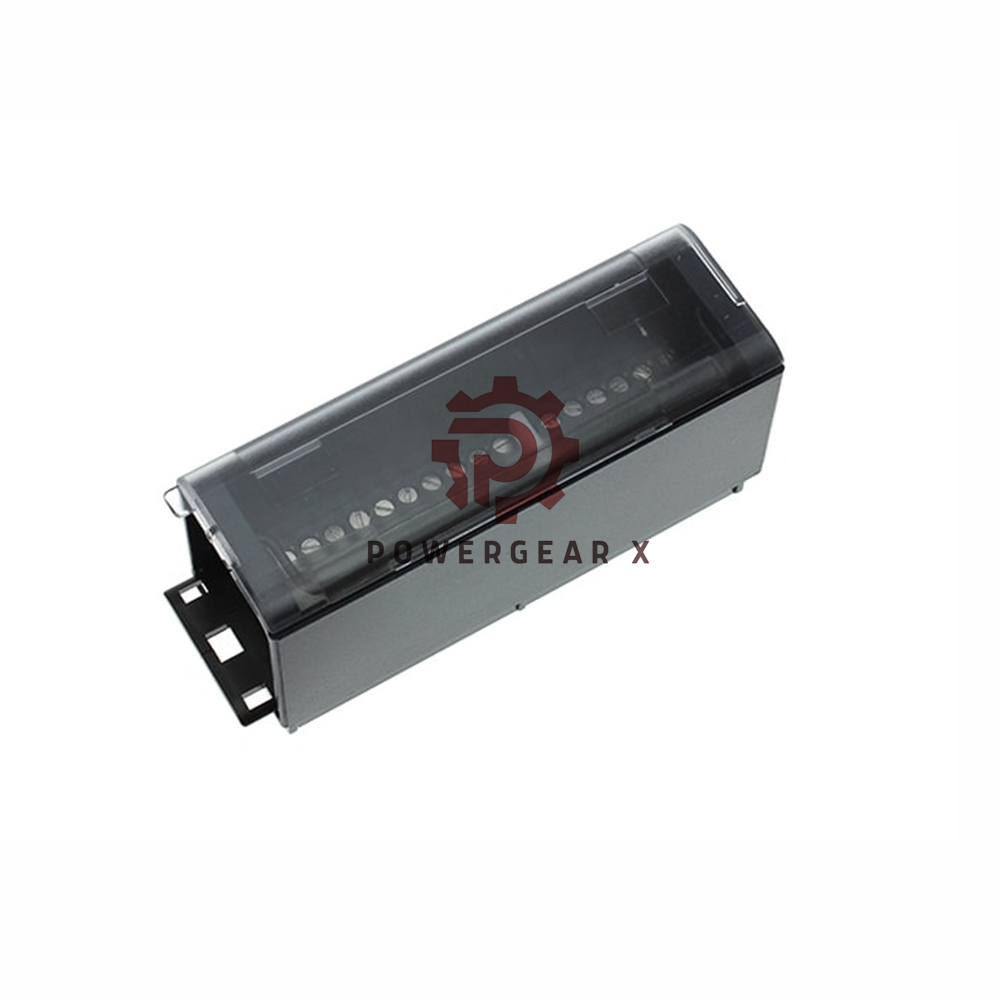

The IC694TBB032 is a high-density, box-style terminal block designed for use with GE Fanuc’s PACSystem RX3i series, now under Emerson Automation. This terminal block is specifically engineered for high-density I/O modules, providing secure and efficient wiring connections. It features 36 screw-type terminals and is compatible with RX3i and Series 90-30 I/O modules. The terminal block’s compact design simplifies installation and maintenance, ensuring robust connections and modularity for system upgrades.
Technical Specifications
- Brand: GE Fanuc (now under Emerson Automation)
- Series: PACSystem RX3i
- Part Number: IC694TBB032
- Terminal Type: Screw-type
- Size: 0.5 inches depth
- Number of Terminals: 36
- Compatible Modules: RX3i High-Density I/O Modules, Series 90-30 equivalent modules
- Wire Size: #14-26 AWG (solid or stranded copper wire)
- Stripping Length: 0.310 inches (7.87 mm)
- Torque Requirement: 7 lb-in
- Mounting: Chassis mount
- Removal and Insertion: Supported under power
- Weight: 0.35 lbs
- Product Lifecycle: Active
- Connection Type: Screw type
- Wire Type: Solid or stranded
- Removal Detection: Module-based detection
- Modularity: Removable for ease of maintenance and troubleshooting
- Depth: Same as other PACSystem RX3i and Series 90-30 modules
