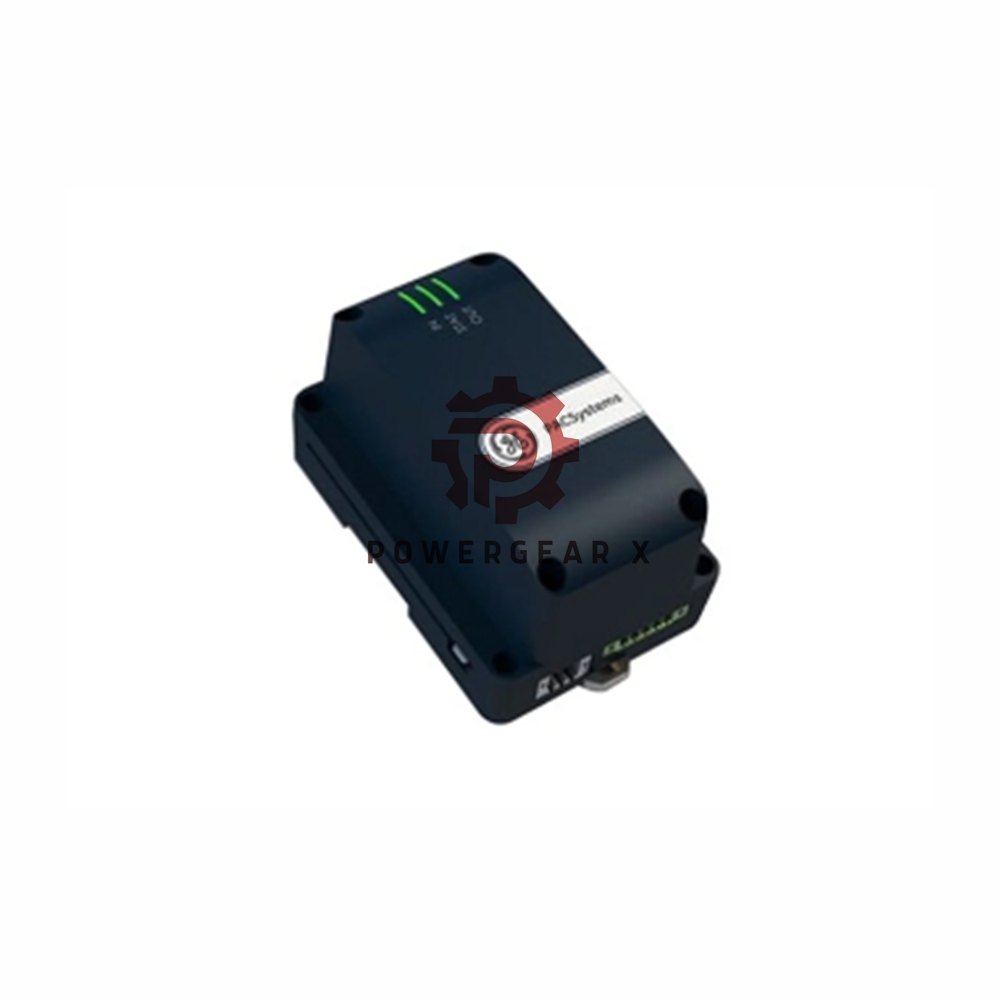

IC695ACC402 GE Fanuc PACSystem RX3i Energy Pack

Overview

The IC695ACC402 is an advanced energy pack module part of the PACSystem RX3i series, which was initially developed by GE Intelligent Platforms and is now under Emerson Automation. This module is specifically designed for use with the CPE330 CPU, ensuring data integrity during power interruptions by facilitating memory transfers from RAM to non-volatile storage.

Technical Specifications

• Brand: GE Fanuc / GE Intelligent Platforms / Emerson Automation (Current)
• Model: IC695ACC402
• Type: CPU Energy Pack
• Compatible Controllers:
  • RX3i CPE330 CPU
• Power Source:
  • PLC Backplane
• Input Voltage Range:
  • 20-30 VDC
• Output Voltage Range:
  • 18-30 VDC
• Maximum Input Power:
  • 36 watts (including connected devices)
• Maximum Output Power:
  • 45 watts
• Maximum Output Current:
  • 2.25 A
• Backup Trip Voltage:
  • 16.7 VDC ± 4%
• Capacitor Pack Life Expectancy:
  • 5 years
• Operating Temperature:
  • -25 to 60°C (-13°F to 140°F)
• Storage Temperature:
  • -40 to 85°C (-40°F to 185°F)
• Relative Humidity:
  • 5% to 95% (non-condensing)
• Mounting Options:
  • DIN rail / Panel
• Cable Compatibility:
  • IC695CBL002 Cable (36” / 1 m)
• Dimensions:
  • 114.05 mm (4.49”) H x 77.47 mm (3.05”) D x 63.75 mm (2.51”) W
• LED Indicators:
  • IN, STAT, OUT
• Product Lifecycle:
  • Active
• Replacement Cap Pack Module:
  • IC695ACC412
• Shipping Package Includes:
  • Base, ground strap, CPU connector cable, and cap pack module.

FAQ

• What is the purpose of the IC695ACC402?
  The IC695ACC402 is used to provide backup power to the RX3i CPE330 CPU, allowing it to save critical data during power failures.
• How is the IC695ACC402 installed?
  This energy pack is DIN rail-mounted and connects to the CPE330 CPU via the dedicated IC695CBL002 cable.
• What happens during a power failure?
  Upon power loss, the IC695ACC402 activates to supply power long enough for the CPU to transfer data from RAM to non-volatile memory.
• What is the expected lifespan of the IC695ACC402?
  The capacitor pack within the IC695ACC402 has a life expectancy of approximately 5 years.
