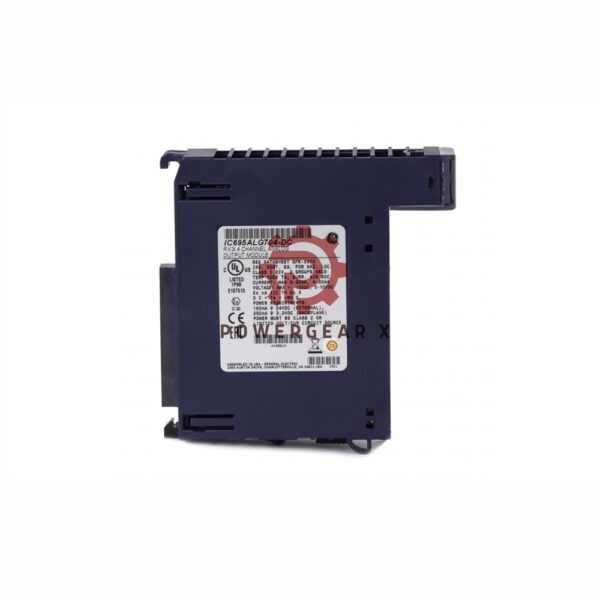

IC695ALG704 GE Fanuc RX3i Analog Output Module

Overview:

The GE Fanuc IC695ALG704 is a versatile analog output module designed for use within the PACSystem RX3i platform, now part of Emerson Automation. This non-isolated module offers four configurable output channels, each capable of generating a variety of signals such as +/- 10 VDC, 0-10 VDC, and 0-20 mA or 4-20 mA outputs. Widely used in industrial automation, it serves to modulate and control field devices like control valves, positioners, and dampers. The IC695ALG704 is suitable for applications requiring precise signal conditioning and output, including interfacing with data loggers, isolators, and panel meters.

Technical Specifications:

• Brand: GE Fanuc (now Emerson Automation)
• Model: IC695ALG704
• Module Type: Analog Output
• Number of Channels: 4 non-isolated output channels
• Output Signals:
  • Voltage Range: +/- 10 VDC, 0-10 VDC
  • Current Range: 0-20 mA, 4-20 mA
• Resolution:
  • +/- 10 VDC: 15.9 bits
  • 0-10 VDC: 14.9 bits
  • 0-20 mA: 15.9 bits
  • 4-20 mA: 15.6 bits
• Power Consumption: 375 mA at +3.3V DC, 160 mA at +24V DC (isolated)
• Data Format: Configurable between floating-point IEEE 32-bit or 16-bit integer (32-bit field)
• Update Rate: 8 ms (approximate for all channels)
• Overvoltage Protection: -30V for 60 seconds, +30V for one hour
• External Power Supply Voltage Range: 19.2V to 30V (24V nominal)
• Accuracy: 0.15% of full scale at 25°C; 0.30% of full scale at 60°C
• Compatible CPU Version: RX3i CPU v3.0 or later

FAQ:

• Q: Can the IC695ALG704 be used with older RX3i CPUs?
  A: No, it requires a compatible RX3i CPU with firmware version 3.0 or later for proper operation.
• Q: What is the power supply requirement for the IC695ALG704?
  A: The module requires an external power supply with a voltage range of 19.2V to 30V (24V nominal).
• Q: What types of terminal blocks are compatible with this module?
  A: The module is compatible with Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), and Extended Spring-style (IC694TBS132) terminal blocks.
• Q: What is the update rate for the output channels?
  A: The module has an output update rate of 8 milliseconds for all channels.
