Overview

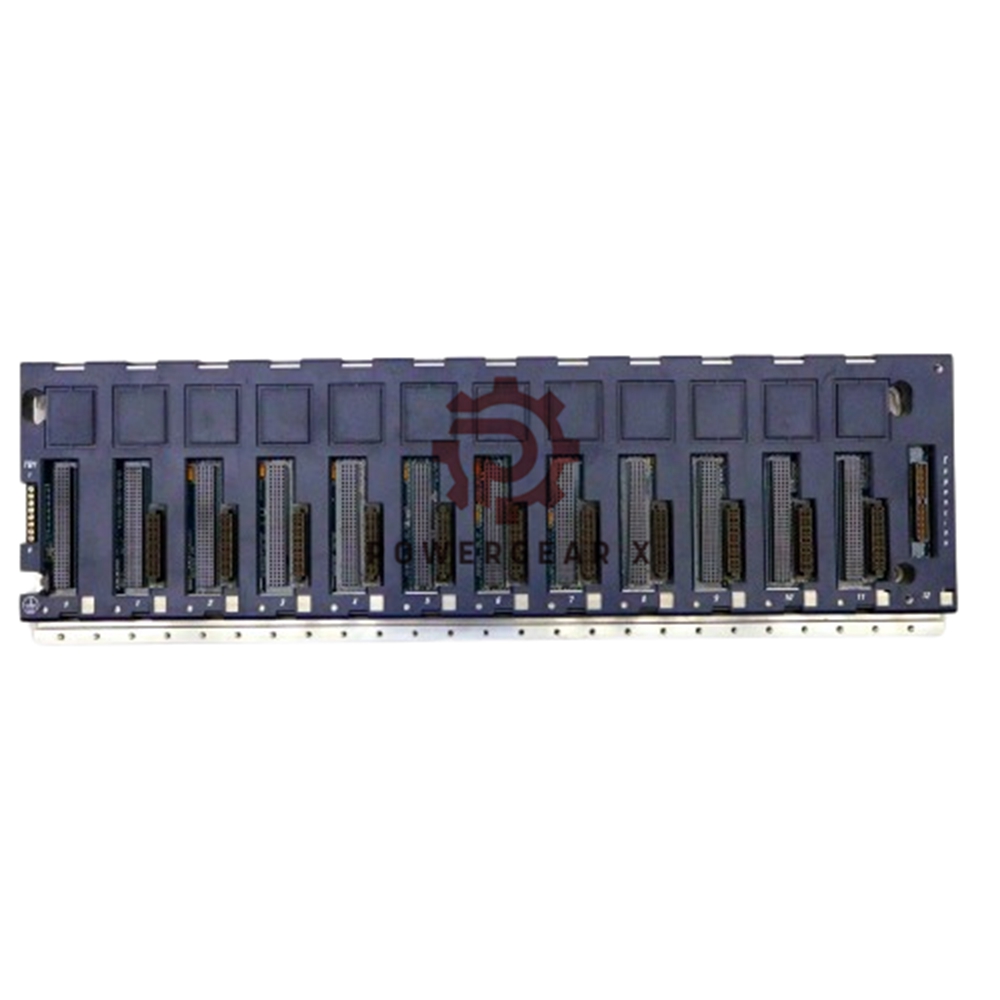

The IC695CHS012 is a universal backplane designed for the PACSystem RX3i series by GE Fanuc / Emerson Automation. This backplane accommodates up to 12 high-speed modules and supports advanced communication buses, making it essential for effective modular automation systems. Notably, it features hot-swapping capabilities, which allow for module replacement without interrupting operational efficiency.
Technical Specifications
- Brand: GE Fanuc
- Model: RX3i PACSystem
- Part Number: IC695CHS012
- Number of Slots: 12
- Compatibility: RX3i PACSystem, Series 90-30 modules, and optional modules
- Type: Universal backplane
- Orientation: Horizontal
- Dimensions (HxWxD): 141.4 x 457.2 x 147.3 mm (5.5 x 18 x 5.8 in)
- Power Consumption:
- 600 mA @ 3.3 VDC
- 240 mA @ 5 VDC
- Input Voltage: +24 Volts
- Internal Power Rating:
- 240 mA at 5 VDC
- 600 mA at 3.3 VDC
- Hot Swap Support: Yes
- Required Protection Class for Installation: NEMA/UL Type 1 (IP20)
- Minimum Clearance Needed: 102 mm (4 inches) on all sides
- Mounting Type: Rack-mounted
- Backplane Support: PCI and High-Speed Serial
- Terminal Block: TB1 for external 24VDC power source (AWG 14-22 recommended)
- ATEX Zone 2 Requirements: Install in IP54 or greater enclosure with mechanical strength to endure 3.5 Joules of impact energy.
FAQ
Q: What is the maximum number of modules the IC695CHS012 can support?
A: The backplane supports up to 12 high-speed modules.
Q: Can I replace a module without shutting down the system?
A: Yes, it supports hot-swapping, allowing module changes without interrupting operations.
Q: What is the required clearance for proper installation?
A: A minimum clearance of 102 mm (4 inches) is required on all sides.
Q: What input voltage does the IC695CHS012 require?
A: The backplane requires an input voltage of +24 Volts.
Q: What type of protection does this backplane require?
A: It needs to be installed in an enclosure offering NEMA/UL Type 1 (IP20) protection.
