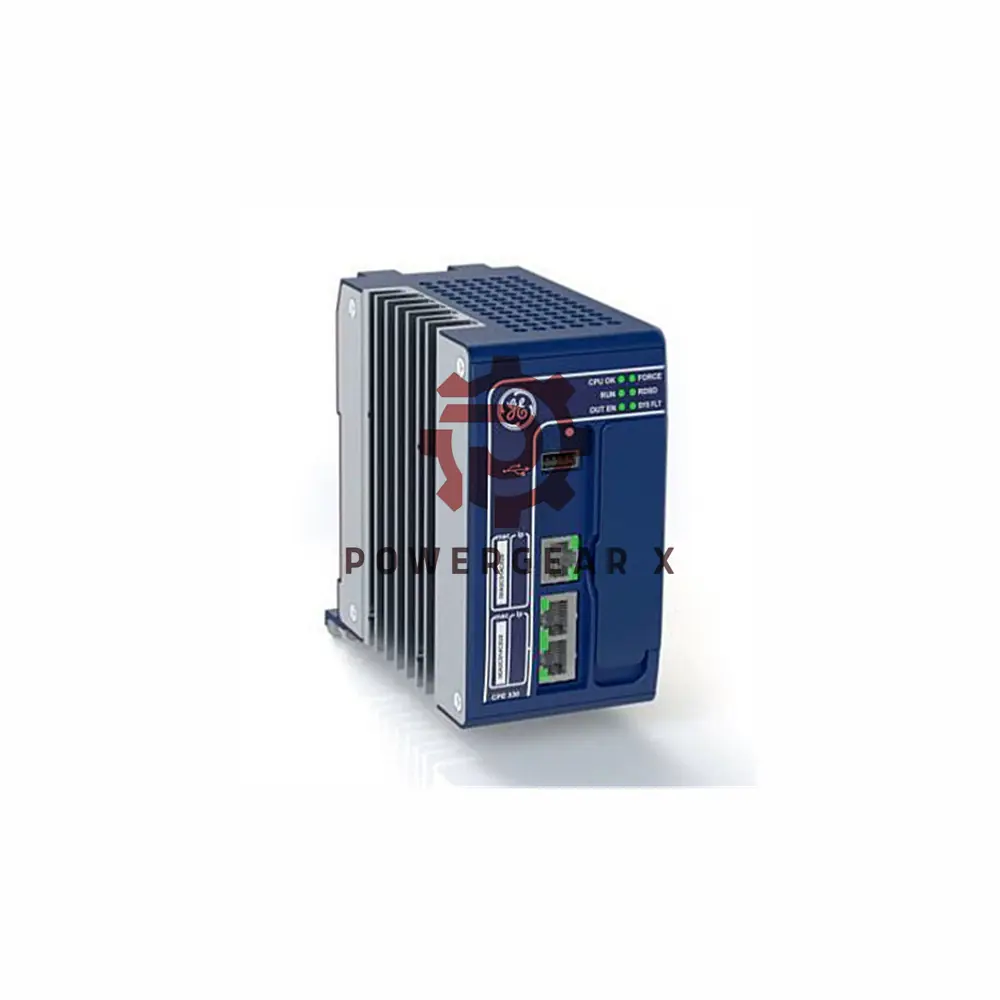

IC695CPE330 GE Fanuc RX3i Redundancy CPU

Overview:

The GE Fanuc / Emerson Automation IC695CPE330 is a robust controller module within the RX3i PACSystem, designed for high-performance industrial automation. It delivers exceptional processing power with its 1 GHz dual-core processor and features modern redundancy options, including support for PROFINET, Ethernet (EGD), and Genius IO. The controller also offers extensive memory, flexible communication protocols, and versatile I/O connectivity, making it ideal for complex and high-availability applications.

Technical Specifications:

• Brand: GE Fanuc / Emerson Automation
• Series: RX3i PACSystem
• Part Number: IC695CPE330
• Product Type: CPU Module
• Processor Clock Speed: 1 GHz Dual-Core Processor
• RAM: 64MB
• Non-Volatile Memory (NVRAM): 64MB
• Program Storage: 64 MB of User Memory
• Maximum I/O Points: 32K (Discrete and Analog I/O)
• Ethernet Ports:
  • 1 Single LAN port (10/100/1000 Mbps)
  • 2 Ports on LAN 2 with embedded switch
• USB Ports: USB 2.0 Master Port
• Controller Redundancy: Supported (Hot-standby via PROFINET, Ethernet, and Genius I/O)
• I/O Protocols Supported: Modbus RTU/TCP, DeviceNet, PROFIBUS, PROFINET, EGD, Genius, Reflective Memory (CMX)
• Maximum Program Blocks: 512
• Maximum Block Size: 128 Kilobytes
• Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
• Power Supply:
  • 0.0 Amps at +5V and +3.3V DC
  • 0.625 Amps at +24V DC
• Energy Pack: IC695ACC402 (Optional)
• Number of Slots: 2
• Number of Local Racks: 8
• Serial Ports: None
• Backplane: Universal backplane compatible with RX3i modules
