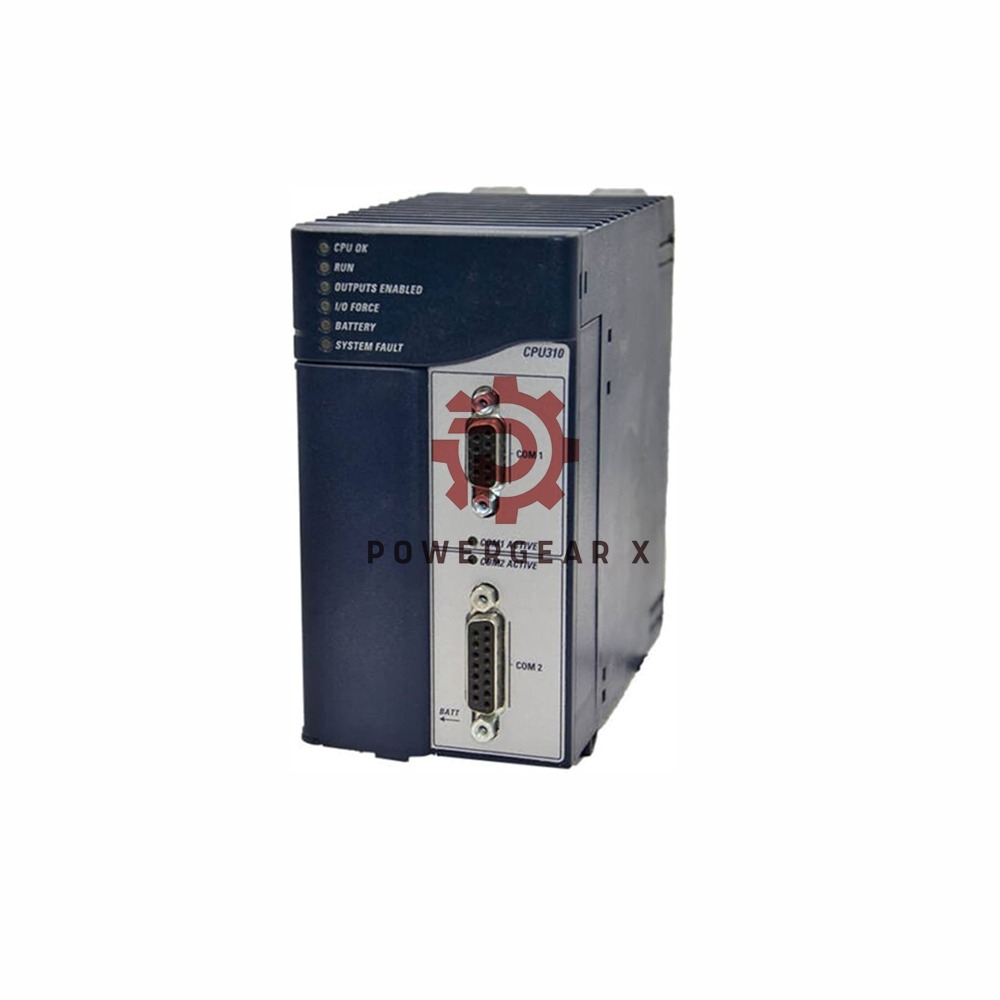

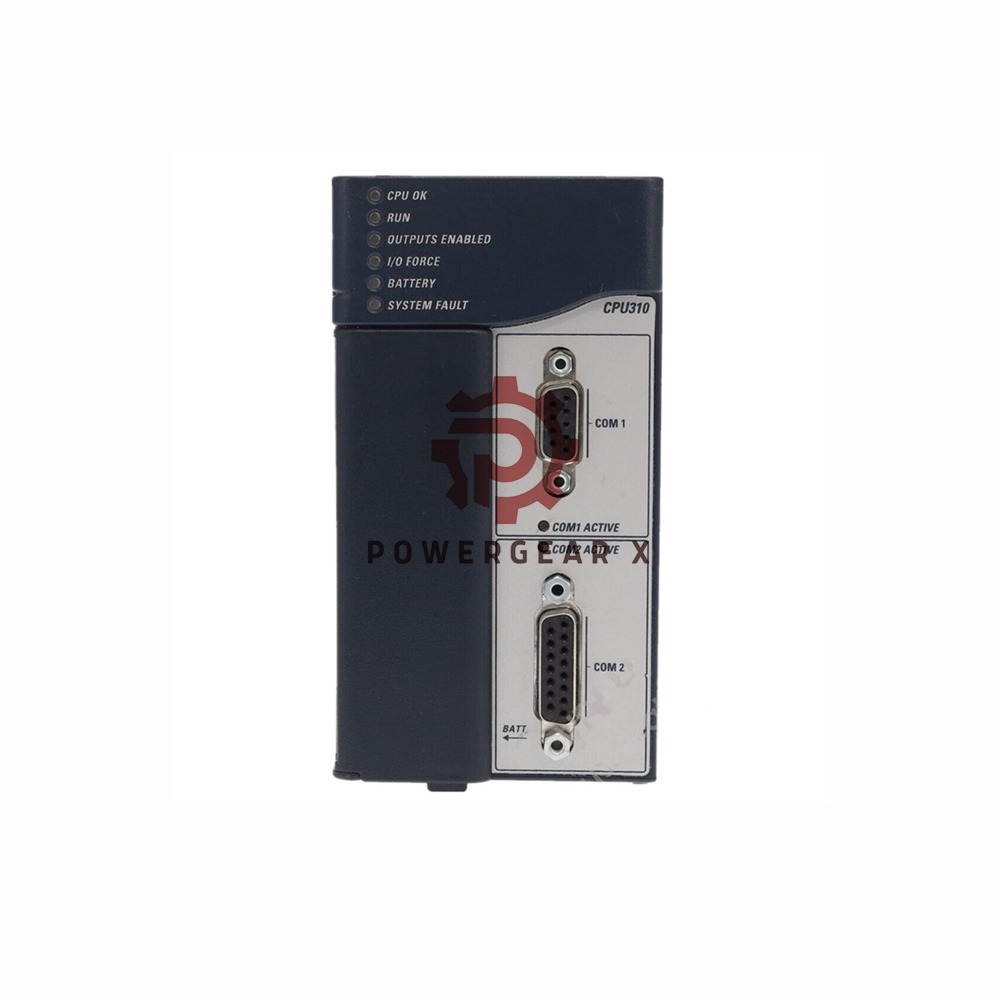

IC695CPU310 GE Fanuc RX3i 300 Mhz CPU Module

Overview

The GE Fanuc IC695CPU310 is a high-performance PACSystem RX3i Processor Module designed for industrial control applications. It features a fast processor speed of 300 MHz and supports advanced communication protocols such as Modbus RTU Slave and SNP.

Technical Specifications

• Brand: GE Fanuc (now Emerson Automation)
• Model: IC695CPU310
• CPU Speed: 300 MHz
• Memory:
  • RAM: 10 MB
  • Non-volatile memory: 10 MB Flash memory
  • Battery-backed RAM: Up to 10 MB
• Battery Type:
  • Lithium Smart Battery: IC695ACC302, IC693ACC302, or IC698ACC701
• Power Requirements:
  • +3.3 VDC: 1.25 Amps nominal
  • +5 VDC: 1.0 Amps nominal
• Temperature Range:
  • Operating: 0 to 60°C (32°F to 140°F)
• Communications:
  • Serial Ports: 2 x RS-232 / RS-485
  • Protocols: Modbus RTU Slave, SNP, Serial I/O
• PCI Compatibility: Compliant with PCI 2.2 standard
• Memory Allocation:
  • %I and %Q: 32Kbits for discrete I/O
  • %AI and %AQ: Up to 32K words for analog I/O
  • %W: Configurable up to available RAM
• Program Block Capacity: Up to 512 blocks, with each block supporting up to 128 KB
• Time of Day Clock: Maximum drift of 2 seconds per day
• Elapsed Time Clock: Accuracy of 0.01%

For more detailed information, please check official datasheet. PACSystems RX3i IC695CPU310
