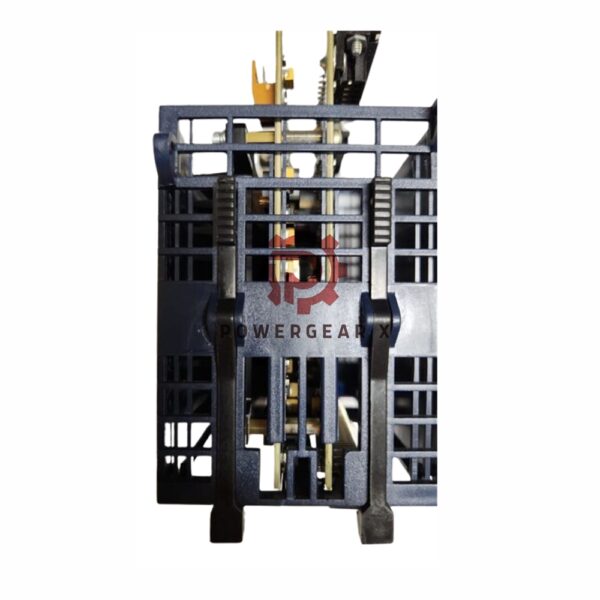

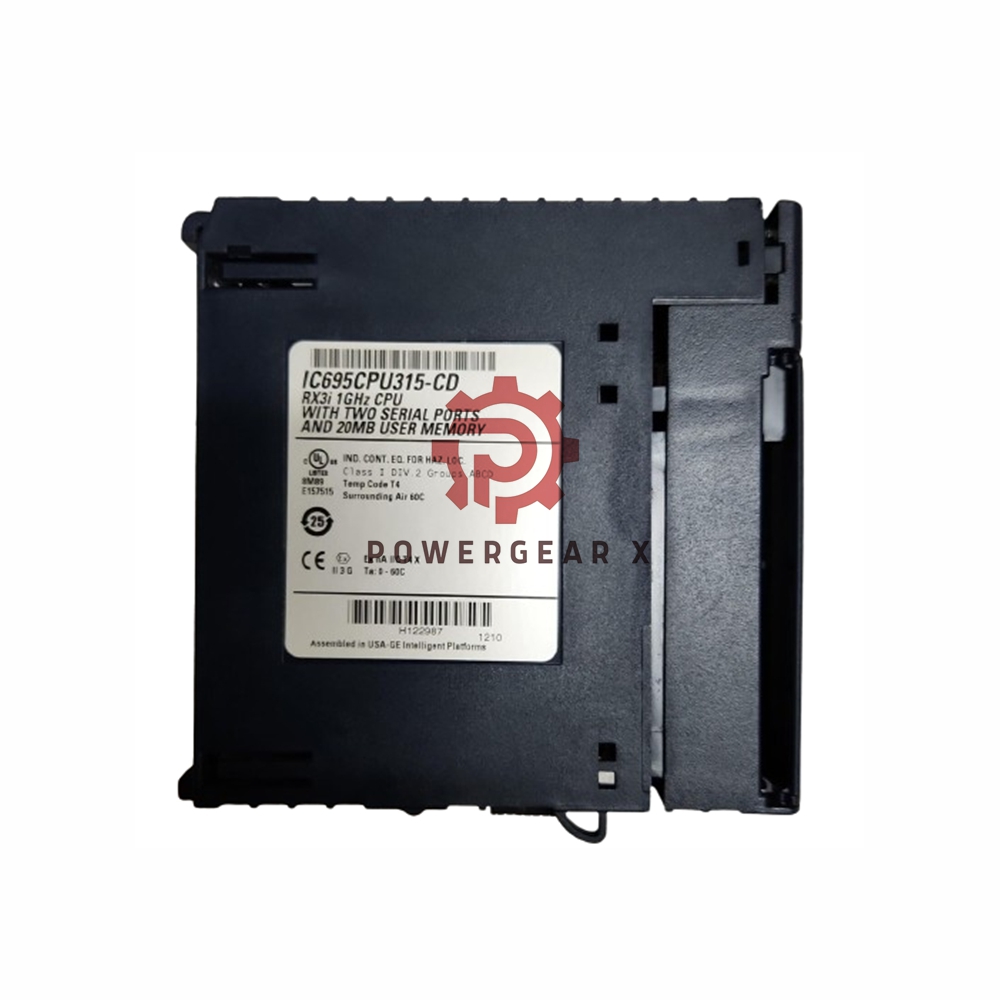

IC695CPU315 GE Fanuc Rx3i Central Processing Unit

Overview

The GE Fanuc IC695CPU315 is a central processing unit (CPU) for the RX3i PACSystem. It is powered by a Celeron M microprocessor running at 1.0 GHz and comes with 20 MB of user memory. This versatile CPU supports a wide range of communication protocols and is designed for real-time control of application processes and machines.

Technical Specifications:

• Brand: GE Fanuc
• Model: PACSystem Rx3i
• Part Number: IC695CPU315
• Product Type: CPU Module for RX3i PACSystem
• Microprocessor: Celeron M
• Clock Speed: 1.0 GHz
• RAM: 20 MB
• NVRAM: 20 MB
• Program Blocks: 512 (128 KB each)
• I/O Discrete Points: 32K
• I/O Analog Points: 32K
• Memory Type: SRAM, Flash
• Built-in Serial Ports:
  • One RS-232 port
  • One RS-485 port
• Protocols Supported: SNP, Serial I/O, Modbus RTU Slave, Modbus Master
• Expansion Racks: Up to 8 local racks
• Bus Support: PCI Bus
• Power Consumption:
  • 1.2A at 5V DC
  • 1.0A at 3.3V DC
• Environmental Conditions:
  • Operating Temperature: 32°F to 140°F
  • Internal clock drift: 2 seconds/day
  • Maximum internal timing accuracy: 0.01%
• Software Programming Support:
  • Proficy Machine Edition Logic Developer (Version 5.6 or above)
  • Supported Languages: Ladder Logic, Function Block Diagram, Structured Text, C
• Communication Options: Serial, Genius, Ethernet, DeviceNet, PROFIBUS DP, PROFINET, Modbus TCP
• Battery Backed Real-Time Clock: Yes
• Lifecycle Status: Active

Applications:

The IC695CPU315 CPU module is ideal for applications requiring high-speed, real-time control, including automation of industrial machinery and processes. It is widely used in systems requiring precise timing, such as manufacturing plants, assembly lines, and control systems for critical infrastructure.
