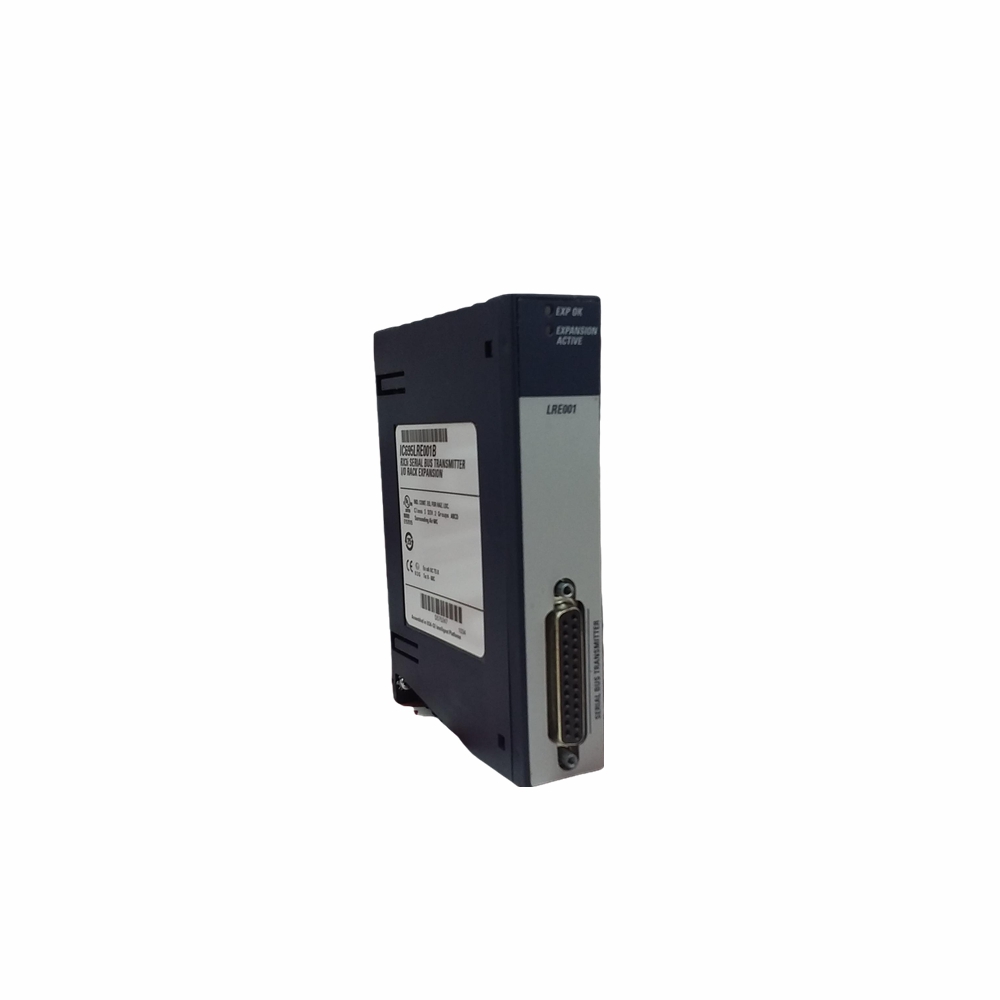

IC695LRE001 GE Fanuc Rx3i Serial Bus Transmitter Module

Overview

The GE Fanuc IC695LRE001 module is a Serial Bus Transmitter for efficient communication within the RX3i PacSystem. This module serves as a crucial link between remote backplanes and serial expansion backplanes, ensuring smooth data transmission to the universal backplane.

Technical Specifications

• Brand: GE Intelligent Platforms/GE Fanuc
• Model: IC695LRE001
• Series: RX3i PacSys
• Module Type: Serial Bus Transmitter
• Part Number: IC695LRE001
• Catalog: IC695
• Number of Slots: 1 (single slot)
• Current Required: 132 mA at 5 V DC
• Communication Interface: RS-232
• Effective Data Rate: 500 kbps
• Maximum Cable Length for Expansion Backplane: 50 ft
• Maximum Cable Length for Remote Backplane: 700 ft
• Electrical Isolation: Non-isolated differential communications
• LED Indicators: 2

Application

The IC695LRE001 module is integral for applications requiring reliable serial communication between PAC Systems and remote equipment. It is commonly utilized in industrial automation, control systems, and monitoring applications.

FAQ

• Q: What is the primary function of the IC695LRE001 module?
  A: The module provides seamless communication between the RX3i universal backplane and remote or serial expansion backplanes.
• Q: How does the module indicate operation status?
  A: It features two LEDs: one indicating “Expansion OK” and the other showing “Expansion Active” status.
• Q: What are the communication specifications?
  A: Communication is conducted via an RS-232 serial interface with an effective data rate of 500 kbps.
