Overview

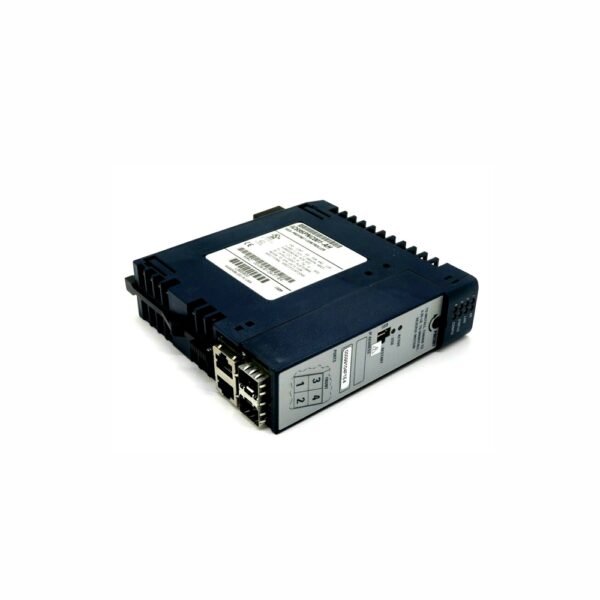

The IC695PNC001 is a PACSystems PROFINET Controller Module from Emerson Automation (formerly GE Intelligent Platforms). It effectively connects PACSystems RX3i controllers to high-speed PROFINET networks, allowing seamless communication between devices. Designed for compatibility with RX3i CPU315 or CPU320 (firmware version 7.0 or higher), the module expands network capabilities significantly.
Technical Specifications
- Brand: Emerson Automation
- Model: RX3i Profinet Controller
- Part Number: IC695PNC001
- Application: PROFINET Controller
- Slot Type: 1 (single slot)
- Backplane Support: Universal only
- Protocol Support: PROFINET Version 2.2 General Class A
- Communication Ports:
- Two RJ-45 connectors
- Two SFP slots
- One Micro USB connector (for diagnostics and system setup only)
- Power Specifications:
- Internal Power:
- 0.5 A @ 3.3 V DC
- 1.5 A @ 5 V DC
- Internal Power:
- I/O Device Capacity:
- Supports up to 64 devices per controller
- Maximum of 128 devices per network (distributed among 8 I/O controllers)
- Update Times: Configurable from 1 ms to 512 ms
- Operating Temperature Range: 0 to 60°C
- Rated Current Draw:
- 0.5 A without SFP devices
- Maximum of 1.2 A with two SFP devices (each SFP device uses 0.35 A)
- Other Features:
- RIUP (Removed and Inserted Under Power) capability
- Internal clock for diagnostics
- Restart pushbutton for manual controller restart
