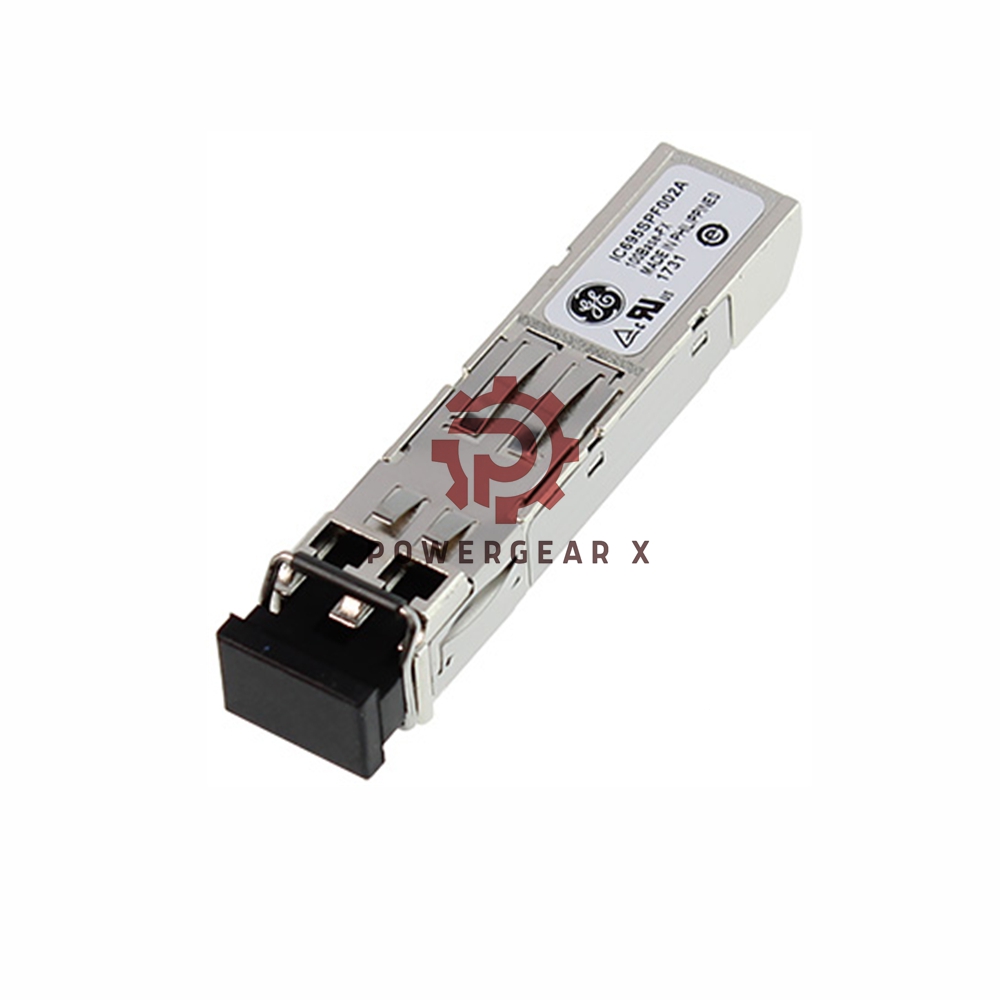

IC695SPF550 GE Fanuc Small Form-Factor Pluggable Module

Overview

The IC695SPF550 module by Emerson is a robust and versatile solution for industrial communication networks. It features a high-speed connection with multiple ports, supporting seamless data transmission for demanding industrial applications.

Key Features and Technical Specifications

Here are the specifications and unique features of the IC695SPF550 module:

• Brand and Model: Emerson RX3i IC695SPF550
• Type: Small Form Pluggable (SFP) communication module
• Fiber Optics: Single Mode, 100 Base-SX (550 m maximum distance)
• Number of Ports: 8 (supports RJ45 and SFP cage interfaces)
• Communication Rate: 100 Mbps or 1000 Mbps for efficient data transfer
• Input/Output Capacity: Accommodates up to 32 connections
• Power Requirements:
  • 1.9 A at 3.3 V
  • 1.1 A at 5 V
• Temperature Rating: Operates reliably within a range of 0°C to 60°C
• Included Component: 550 m RX3i 100Base-SX Fiber SFP Transceiver
• Suffix Meaning:
  • SPF: Small Form Pluggable
  • 550: Maximum transmission distance of 550 meters

Applications

The IC695SPF550 module is ideal for:

• Industrial automation networks requiring high-speed data transfer
• Communication between distributed control systems (DCS) and programmable logic controllers (PLCs)
• Environments needing reliable fiber-optic connectivity for distances up to 550 meters

Frequently Asked Questions (FAQ)

• Q1: What is the primary use of the IC695SPF550 module?
  A1: This module is used for high-speed communication in industrial automation networks, supporting both RJ45 and SFP cage interfaces.
• Q2: Can it operate in harsh environments?
  A2: The module is designed to work efficiently between 0°C and 60°C, making it suitable for typical industrial settings.
• Q3: What communication rates are supported?
  A3: It supports 100 Mbps and 1000 Mbps rates for flexible and reliable data transmission.
