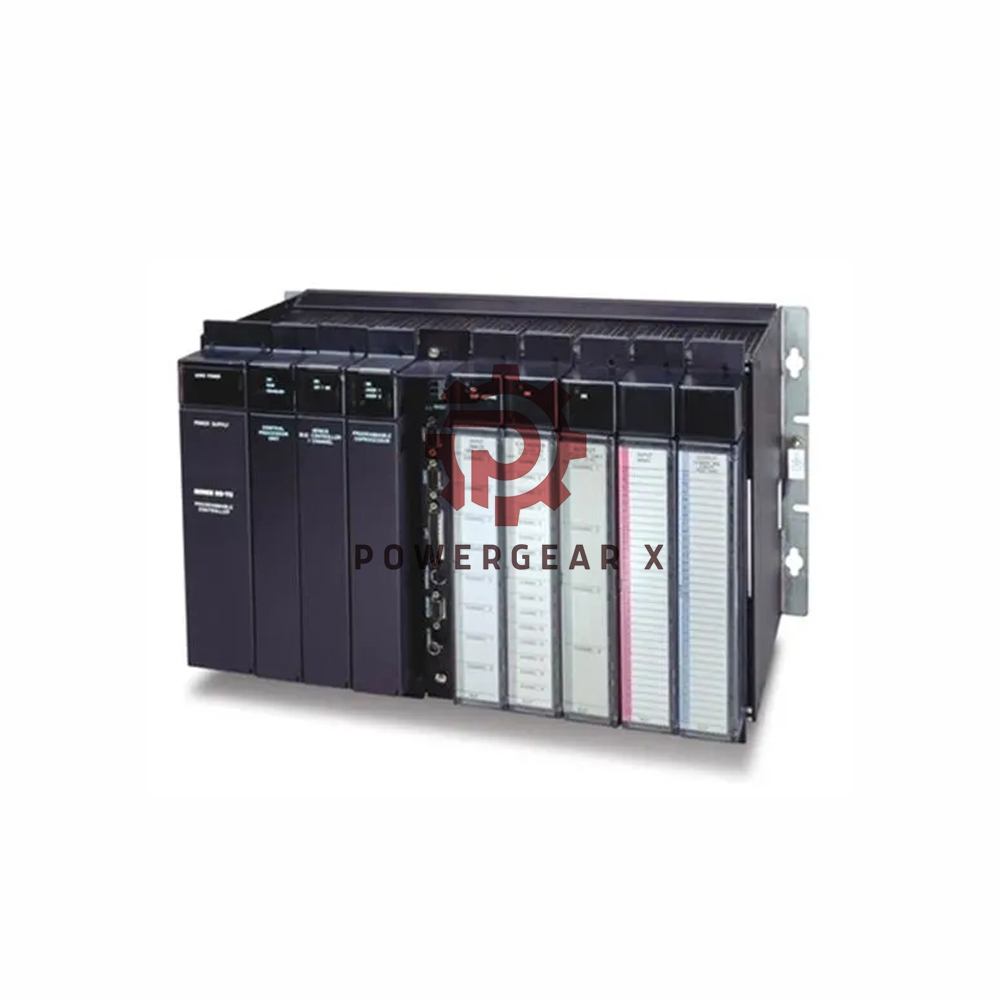

IC697MDL750 GE Fanuc Series 90-70 Discrete Output Module

Overview

The GE Fanuc IC697MDL750 is a reliable discrete output module used in automation systems. With 32 outputs, the module is divided into four groups of eight channels, each capable of handling 0.5 Amps per point and a total of 2 Amps per group. It operates with a nominal voltage range of 24-48 VDC, ideal for controlling various devices such as solenoids, motor starters, and indicators.

Technical Specifications

• Brand: GE Fanuc (now part of Emerson Automation)
• Model: IC697MDL750
• Rated Voltage: 24 to 48 VDC
• Output Voltage Range: 20 to 60 VDC
• Output Current: 0.5 Amps per point; 2 Amps per group
• Number of Outputs: 32 (4 groups of 8 channels)
• Current Required: 0.25 Amps
• Inrush Current: 10 Amps (maximum) for 20 ms
• Response Time (On/Off): 1 ms maximum
• Isolation Voltage: 1500 Volts between field side and logic side; 500 Volts between groups
• Wiring Configuration: Positive Logic
• Nominal Output Voltage: 24 / 48 VDC
• Maximum Output Voltage Drop: 1.0 V
• Off-state Leakage: 1 mA maximum

FAQ

• Q: What is the maximum current each output can handle?
  A: Each output can handle 0.5 Amps, with a maximum of 2 Amps per group.
• Q: How do I configure the IC697MDL750 module?
  A: The module’s configuration can be done through a personal computer using Windows or MS-DOS software, with connections via SNP or Ethernet TCP/IP.
• Q: What does the isolation voltage refer to?
  A: The isolation voltage is 1500 VAC between the field side and logic side, ensuring safe operation in high-voltage environments.
• Q: What is the inrush current?
  A: The inrush current is 10 Amps for 20 milliseconds, allowing for the handling of large input currents during startup.
