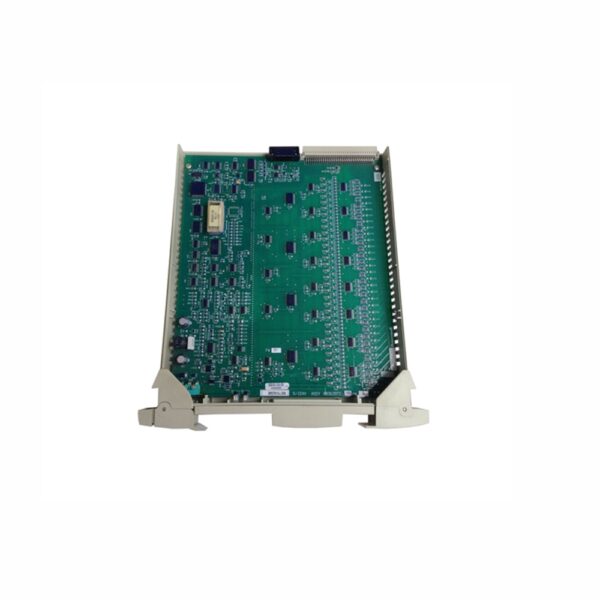

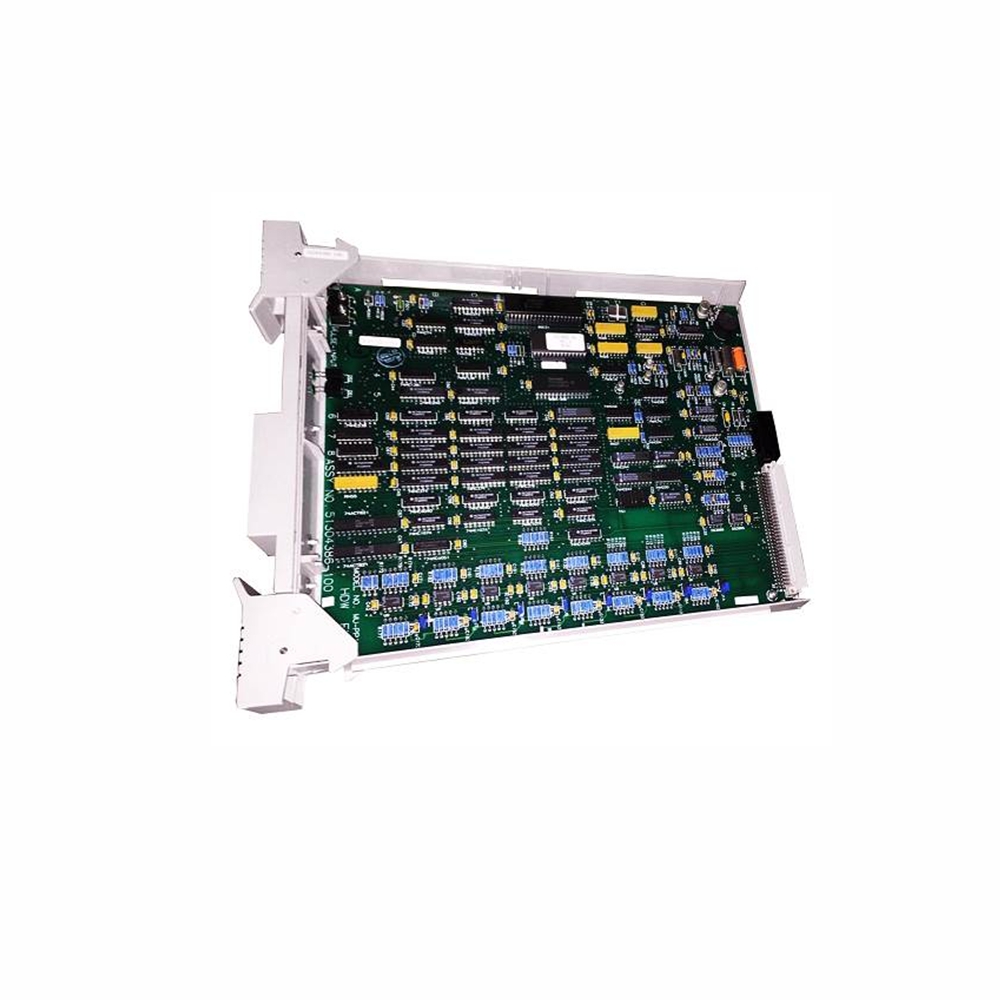

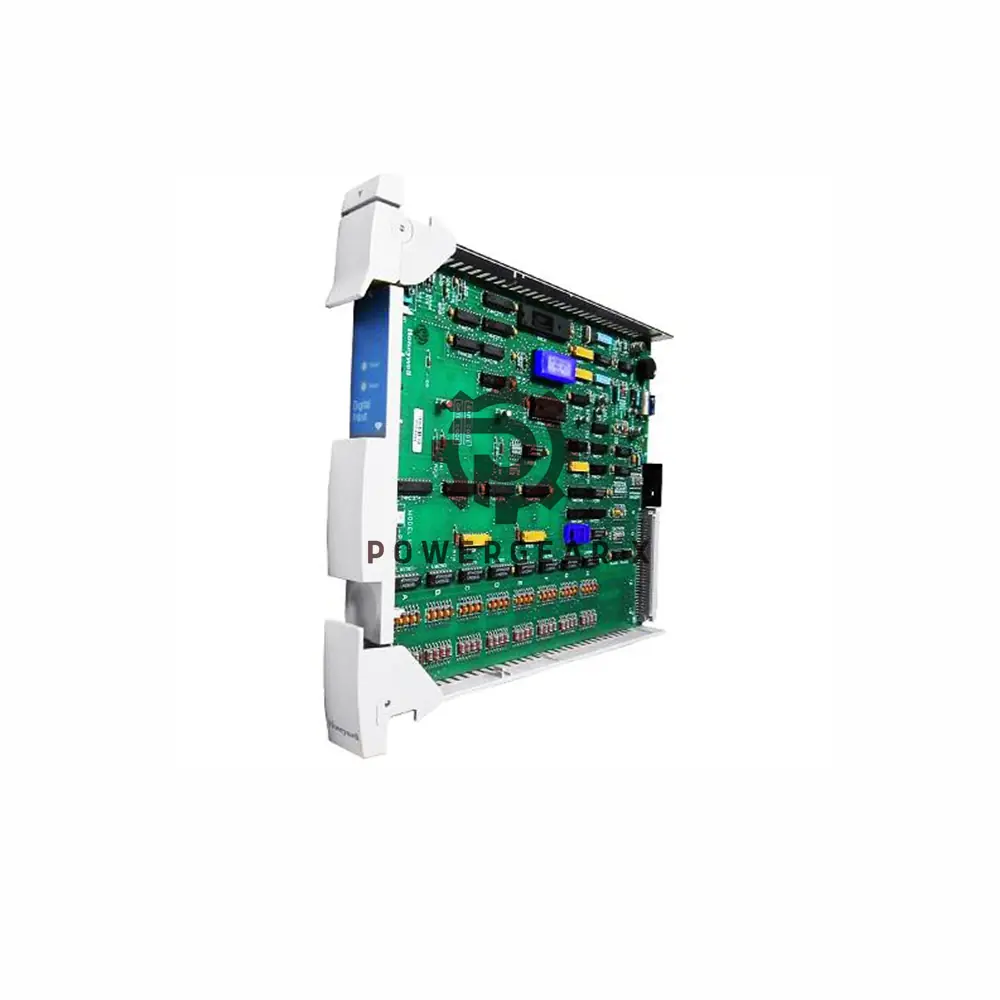

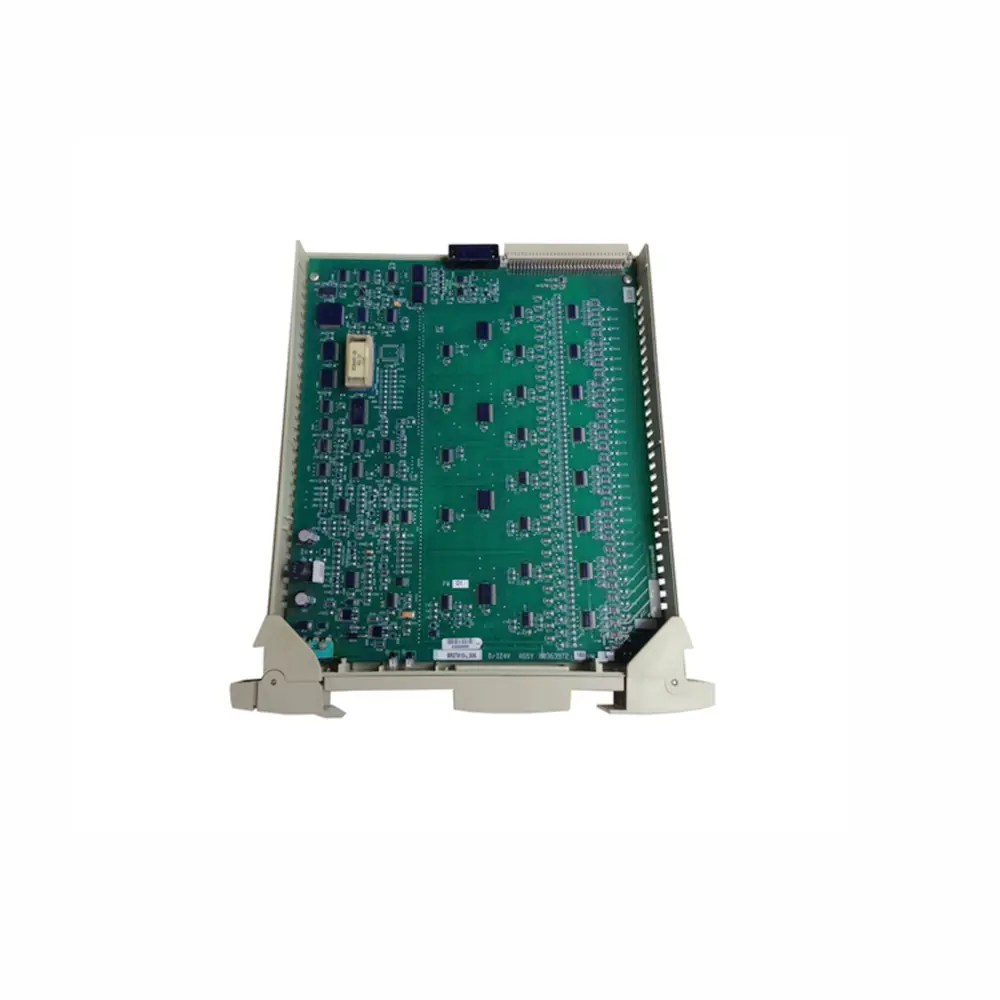

MC-PAIH03 Honeywell | High Level Analog Input Processor

Overview:

The Honeywell MC-PAIH03 (Product No. 51304754-150) is a highly accurate and reliable analog input processor, designed to provide precise measurement and conversion of analog signals in industrial control systems. This module supports both voltage and current inputs, offering 16 differential channels to accommodate a wide variety of sensor types and input configurations. It is compatible with a range of FTA models and delivers exceptional performance in demanding automation applications.

Technical Specifications:

• Brand: Honeywell
• Model Number: MC-PAIH03
• Product No.: 51304754-150
• Input Channels: 16 differential input channels
• Input Types: Voltage (0-5V, 1-5V, 0.4-2V), Current (4-20mA with 250-ohm resistor)
• Common Mode Rejection: 70 dB (dc to 60 Hz)
• Common Mode Voltage Range: -6 to +5V peak
• A/D Converter: 16-bit resolution (14 bits utilized)
• Maximum Input Voltage: ±30V (no damage)
• Crosstalk: 60 dB (dc to 60 Hz)
• Normal Mode Rejection: 32 dB at 60 Hz
• Surge Withstand: ANSI/IEEE C37.90.1-1978 compliance
• Input Impedance (Voltage Inputs): >10M powered
• Scan Rate: 4 samples per second per channel
• Hardware Accuracy: ±0.075% FS at 23.5°C ± 2°C
• Weight: 0.60 kg

FAQ:

Q1: What input types does the Honeywell MC-PAIH03 support?
A1: The MC-PAIH03 supports voltage inputs (0-5V, 1-5V, 0.4-2V) and current inputs (4-20mA via a 250-ohm resistor).

Q2: What is the maximum input voltage that can be applied without damaging the module?
A2: The module can handle differential input voltages of up to ±30V without damage.

Q3: How fast does the MC-PAIH03 sample input data?
A3: The input scan rate is 4 samples per second per channel, with all channels sampled within a 250 ms window.

Q4: What is the common mode rejection ratio of this device?
A4: The common mode rejection ratio is 70 dB from dc to 60 Hz.

Q5: What are the typical applications for the Honeywell MC-PAIH03?
A5: It is commonly used in industrial automation, process control, and energy monitoring applications.

For more detailed information, please check official datasheet: Experion Series-C IO Specification
