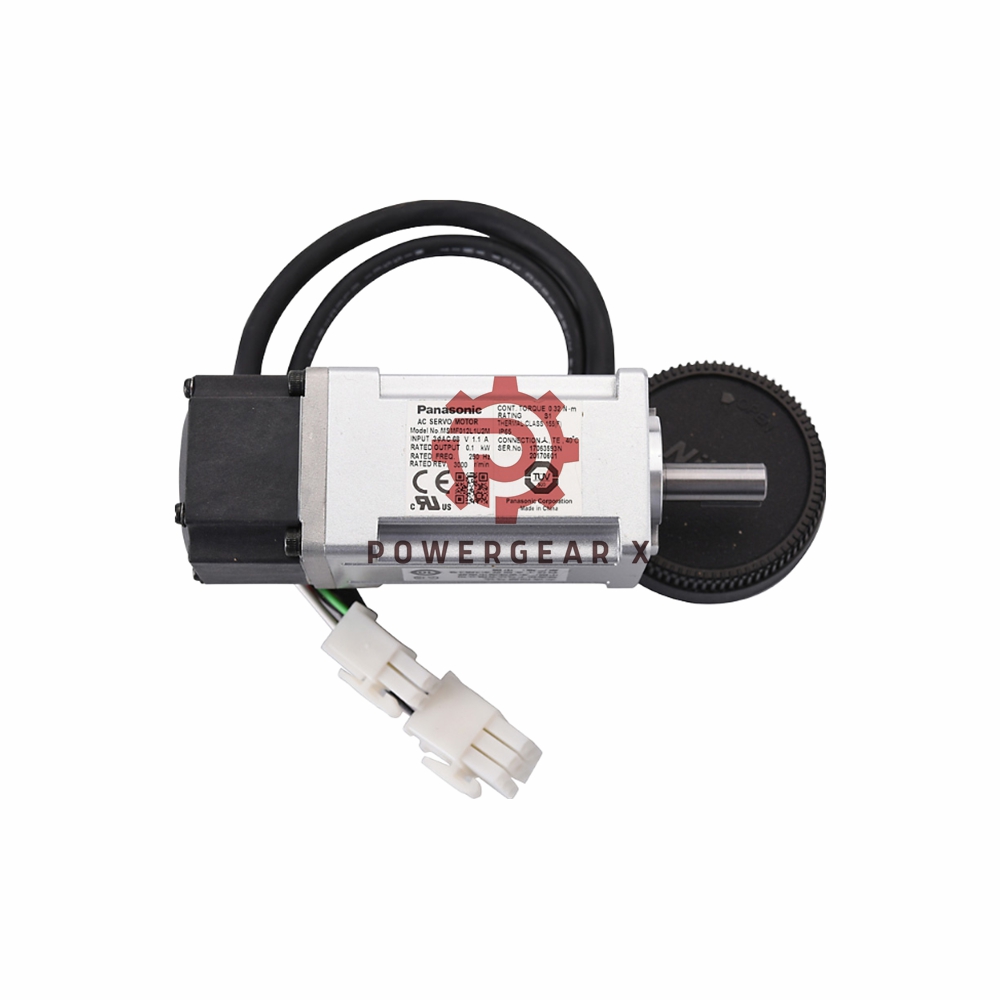

MSMF5AZL1V2M | Panasonic AC Servo Motor MINAS A6 Series

Technical Specifications:

• Brand: Panasonic
• Model: MSMF5AZL1V2M
• Series: MINAS A6
• Motor Rated Output: 50 W (5A)
• Voltage Specifications: 100/200 V (specific to 50 W model)
• Rotary Encoder Specifications: 23-bit Absolute, 8,388,608 Pulse Count, 8388608 Resolution
• Motor Structure: V2 – Keyway threaded shaft, holding brake, oil seal, leadwire type motor I/F
• Encoder Type: 7-wire, Absolute format
• Special Specifications: M – Standard design order
• Design Order: 1 (Standard configuration)

FAQ:

1. What is the difference between MSMF5AZL1V2M and other models in the MINAS A6 Series?
   • The MSMF5AZL1V2M is a 50W model with a keyway threaded shaft, holding brake, and oil seal, designed for applications requiring high precision and compact power output.
2. What applications are best suited for this motor?
   • This motor is best suited for applications such as robotics, CNC machines, and packaging systems where high precision, reliability, and compact size are essential.
3. What is the encoder resolution of this motor?
   • The MSMF5AZL1V2M features a 23-bit absolute encoder with a resolution of 8388608, providing high accuracy and precision.
4. Can this motor be used in environments with high moisture or dust?
   • Yes, the motor is designed with an oil seal to protect against contaminants and ensure long-term reliability in harsh environments.
