Overview

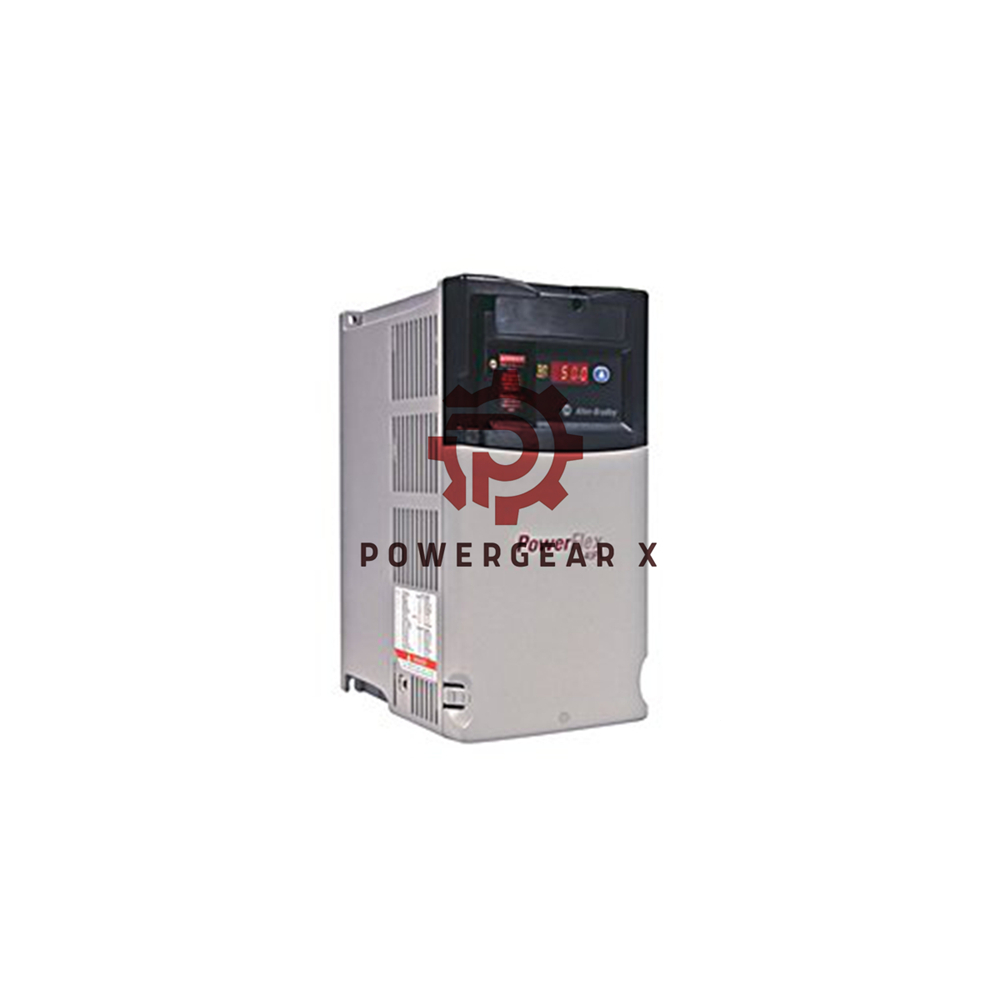

The Allen-Bradley 22D-B2P3H204 is an adjustable frequency drive from the PowerFlex 40P series, designed to provide precise control over 3-phase induction motors in speed-sensitive applications. It is particularly well-suited for industries requiring efficient and reliable motor control, offering a 0.5 horsepower capacity at 2.3 Amps. This drive operates at 240 Volts AC and offers a wide operating frequency range of 50 to 60 Hertz, ensuring flexible integration into various systems.
Technical Specifications
- Manufacturer: Rockwell Automation
- Brand: Allen-Bradley
- Model Number: 22D-B2P3H204
- Product Line: PowerFlex 40P
- Power Rating: 0.5 Horsepower (0.4 kW)
- Amperage Rating: 2.3 A
- Phase: 3-Phase
- Input Voltage: 240 Volts AC
- Enclosure Type: Open NEMA Type (IP20)
- Frame Size: B
- Motor Protection: Class 10 overload, i²t protection
- Control Method: Sensorless vector control
- Frequency Range: 50 to 60 Hertz
- Operating Temperature: 14°F to 104°F (5°C to 40°C)
- Altitude: 1000 meters without derating
- Efficiency: 97.5%
- Overload Capability: 150% for 1 minute, 200% for 3 seconds
- Surge Protection: Metal Oxide Varistor (MOV)
- Communication: RS-485 for programming
FAQ
Q: What is the voltage range for this drive?
A: The 22D-B2P3H204 operates with a nominal input voltage of 240V AC and supports a voltage tolerance range of -10% to +10%.
Q: Can the drive be used at high altitudes?
A: Yes, this drive can operate at altitudes up to 1000 meters without derating.
Q: What communication options are available?
A: It features an RS-485 communication port for easy programming and monitoring.
Q: Does this drive include motor overload protection?
A: Yes, it provides Class 10 motor overload protection using the i²t algorithm for enhanced reliability.
Check official datasheet for more detailed information: PowerFlex 40P
