Overview

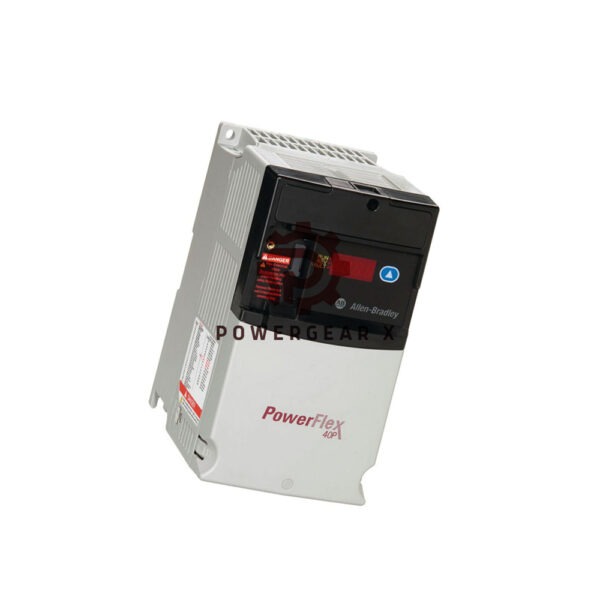

The Allen-Bradley 22D-B033H204 is a high-performance PowerFlex 40P series adjustable frequency drive, designed to deliver optimal control and flexibility in motor-driven applications. With its compact and cost-effective design, this drive offers reliable speed control for various applications such as conveyors, palletizers, packaging machines, and more. Its user-friendly programming and robust features ensure ease of installation and operation, making it a top choice for both OEMs and end-users seeking space-saving and efficient solutions.
Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model: 22D-B033H204
- Power Rating: 10 Horsepower (7.5 kW)
- Amperage: 33.0 Amps
- Voltage: 240 Volts AC
- Frame Size: C
- Phase: Three-Phase
- Enclosure: Open NEMA Type (IP20)
- Filter: No built-in filter
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Overload Protection: 150% for 60 seconds, 200% for 3 seconds
- PWM Frequency: Up to 16 kHz for quiet operation
- Control Method: Sensorless vector control
- Communications: RS485 for multi-drop network configuration
- Programming: External Human-Machine Interface (HMI) or via PC programming tool
- Safety: Integral brake transistor for dynamic braking
FAQ
- What type of enclosure does the 22D-B033H204 have?
The 22D-B033H204 features an open NEMA Type IP20 enclosure for easy plate mounting. - Can the drive be programmed via a PC?
Yes, the drive can be programmed via a PC using a programming tool, or through an external HMI. - What is the power rating of the 22D-B033H204?
The 22D-B033H204 provides 10 HP (7.5 kW) of output power during normal operation. - Is overload protection available?
Yes, it provides 150% overload protection for 60 seconds and 200% overload protection for 3 seconds. - What is the control method for this drive?
The drive utilizes sensorless vector control for smooth operation and precise speed regulation.
Check official datasheet for more detailed information: PowerFlex 40P
