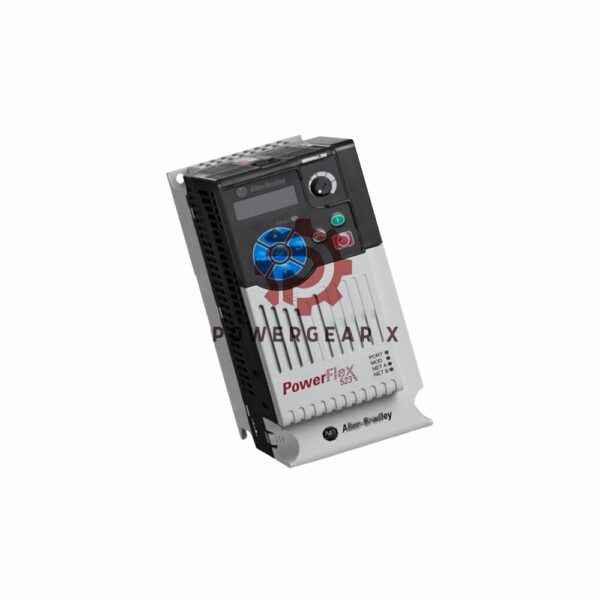

PowerFlex 523 AC Drive 25A-B1P6N104 Allen-Bradley

Overview

The Allen-Bradley PowerFlex 523 AC Drive 25A-B1P6N104 is a versatile adjustable frequency drive for high-performance applications in industrial environments. This drive is ideal for controlling the speed and torque of variable frequency motors in PLC systems, offering exceptional flexibility and control. With a 3-phase voltage input range of 200 to 240 Volts AC and a 1.6A output, this drive ensures smooth operation in a range of settings.

Technical Specifications:

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 25A-B1P6N104
• Series: PowerFlex 523
• Input Voltage: Three-Phase, 240 VAC
• Output Voltage: 0 to 230 VAC
• Output Current: 1.6 Amperes
• Frame Size: Frame A
• Enclosure: IP20 NEMA / Open Type
• EMC Filtering: No Filtering
• Interface Module: Standard
• Cooling: No fan (heatsink only)

Applications:

• Ideal for motor control in industrial PLC systems.
• Used in machinery where speed and torque adjustments are critical.
• Common in applications such as pumps, conveyors, and fans.

FAQ:

1. What is the input voltage of the PowerFlex 523 AC Drive?
   • The input voltage is 200-240 Volts AC, three-phase.
2. Can this drive be used without an EMC filter?
   • Yes, this model does not come with an EMC filter, making it suitable for environments where filtering is not required.
3. What is the output current rating?
   • The output current is 1.6 Amperes.
4. Is this drive suitable for outdoor use?
   • No, the drive features an IP20 NEMA open-type enclosure, which is intended for indoor use.

Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
