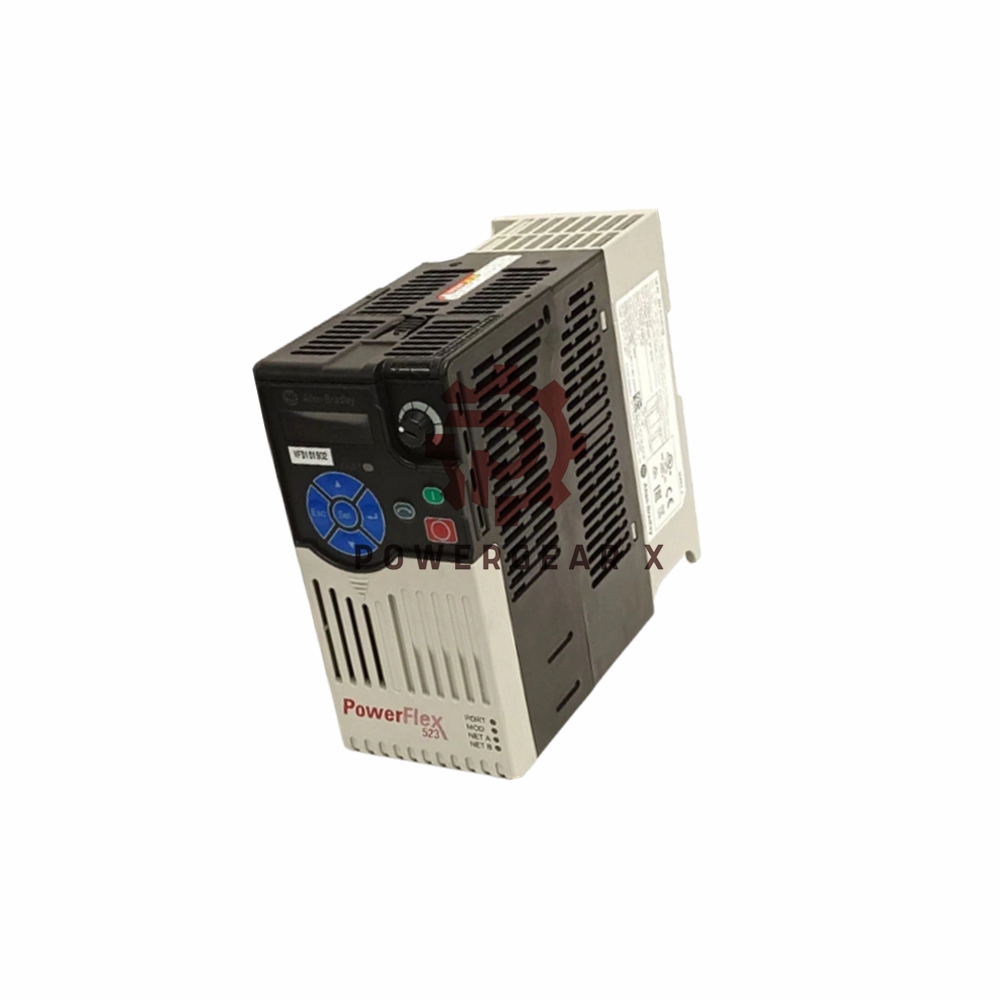

PowerFlex 523 AC Drive 25A-B2P5N104 Allen-Bradley

Overview

The Allen-Bradley PowerFlex 523 AC Drive (Part No. 25A-B2P5N104) is a highly reliable motor control solution designed for industrial applications. This drive is part of the PowerFlex 523 series by Rockwell Automation, delivering optimal performance for controlling 3-phase motors. It operates at a 240 VAC input with a 2.5 Amp output current capacity, providing seamless integration in various control systems. The drive features a Size A frame, an IP20 NEMA/Open Type enclosure, and no EMC filtering.

Key Features

• Brand: Allen-Bradley (Rockwell Automation)
• Frame Size: A
• Output Current: 2.5 Amps
• Input Voltage: 200 to 240 VAC, 3-phase
• Output Voltage: 0 to 230 VAC, 3-phase
• Enclosure Type: IP20 NEMA/Open Type
• Interface Module: Standard
• No EMC Filtering
• Application: Designed for industrial motor control applications in systems requiring 3-phase motor power and speed control.

Technical Specifications

• Manufacturer: Rockwell Automation
• Model: PowerFlex 523
• Part Number: 25A-B2P5N104
• Voltage: 240 VAC, 3-Phase
• Current Rating: 2.5 Amps
• Frame Size: A
• Enclosure: IP20, Open Type
• Filtering: No EMC Filtering
• Application: Ideal for controlling AC motors in a variety of industrial environments.

FAQs

Q: What is the input voltage range for the PowerFlex 523 AC Drive?

A: The input voltage range for this drive is 200 to 240 VAC, 3-phase.

Q: What is the output current of the 25A-B2P5N104 drive?

A: The output current is 2.5 Amps.

Q: Does the 25A-B2P5N104 have EMC filtering?

A: No, this model does not include EMC filtering.

Q: What is the enclosure type of the drive?

A: The enclosure is IP20, Open Type (NEMA rated).

Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
