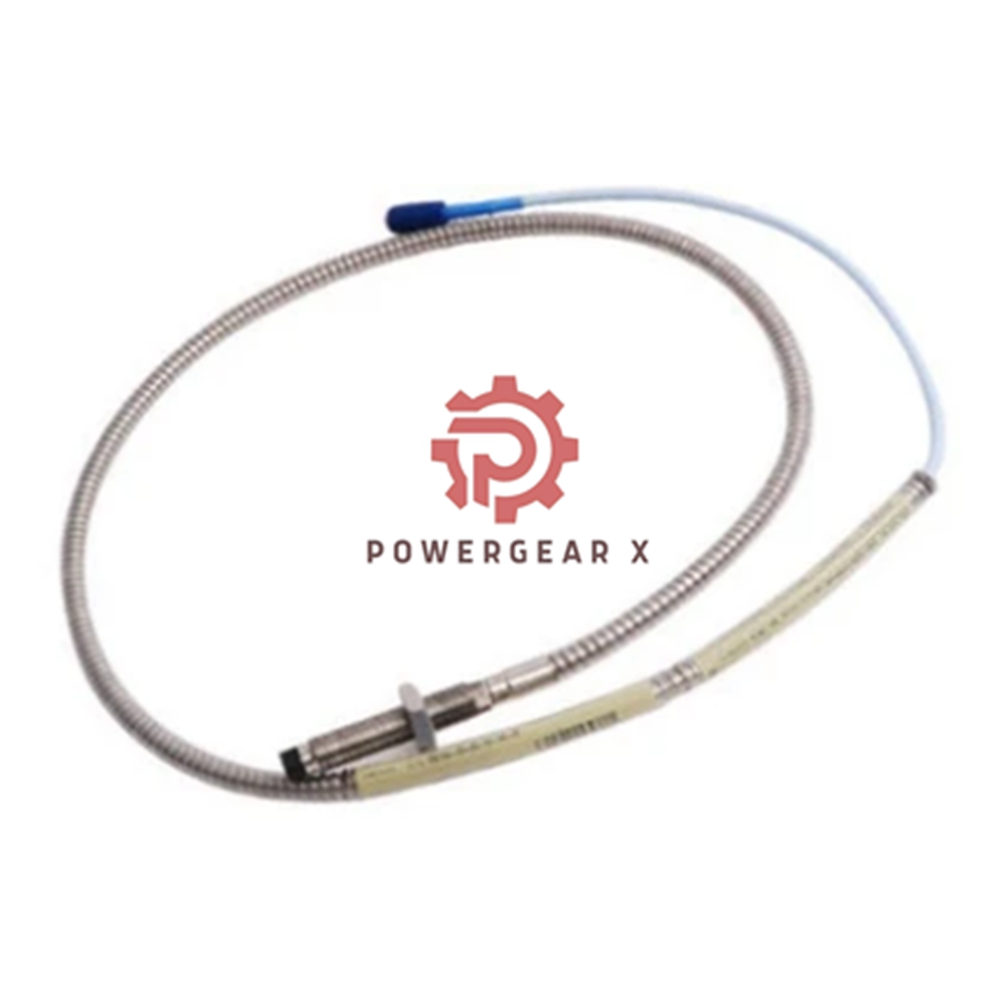

Proximity Probe 330104-00-18-10-02-05 Bently Nevada With Armor

Overview

The Bently Nevada 330104-00-18-10-02-05 Proximity Probe is a state-of-the-art sensing device designed for high-performance measurement in industrial applications. Manufactured in the U.S.A, this advanced probe is known for its durability, accuracy, and innovative design features, ensuring reliable operation in demanding environments.

Technical Specifications

• Brand: Bently Nevada
• Model Number: 330104-00-18-10-02-05
• Product Type: 3300 XL 8 mm Proximity Probe
• Made in: U.S.A
• Certificate of Origin (COO): Can be provided upon request
• Unthreaded Length Option: 00 = 0 mm
• Overall Case Length Option: 18 = 180 mm
• Total Length Option: 10 = 1.0 meter (3.3 feet)
• Connector and Cable-Type Option: 02 = Miniature coaxial ClickLoc connector, standard cable
• Agency Approval Option: 05 = CSA, ATEX, IECEx Approvals
• Weight: 0.323 kg
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)

Performance and Capabilities

• Probe Pressure: Seals differential pressure between probe tip and case using a Viton® O-ring, ensuring integrity under operational conditions. Probes are not pressure tested prior to shipment.
• Extended Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range Probe: -52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to +500°F) for the probe cable and connector.
• Relative Humidity: Demonstrates less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity for up to 56 days in accordance with IEC standard 68 2 3.
• Operating Power: Requires -17.5 Vdc to -26 Vdc with 12 mA maximum consumption.
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
• Output Resistance: 50 Ω

Advanced Design Features

• Robust Bonding: Incorporates a patented TipLoc molding method for improved bonding between the probe tip and body.
• Secure Attachments: The CableLoc design provides 330 N (75 lbf) pull strength to securely attach the probe cable and probe tip.
• Optional Features: Also available with FluidLoc cable option to prevent liquid leakage from machines.

FAQ

What is the operational temperature range of the 3300 XL probe?

The standard probe operates between -52°C to +177°C (-62°F to +350°F), while the extended version can handle temperatures up to +218°C for the probe tip.

How does the probe maintain pressure integrity?

The probe utilizes a Viton® O-ring to seal the differential pressure between the probe tip and the case, ensuring proper functioning in demanding environments.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
