Overview

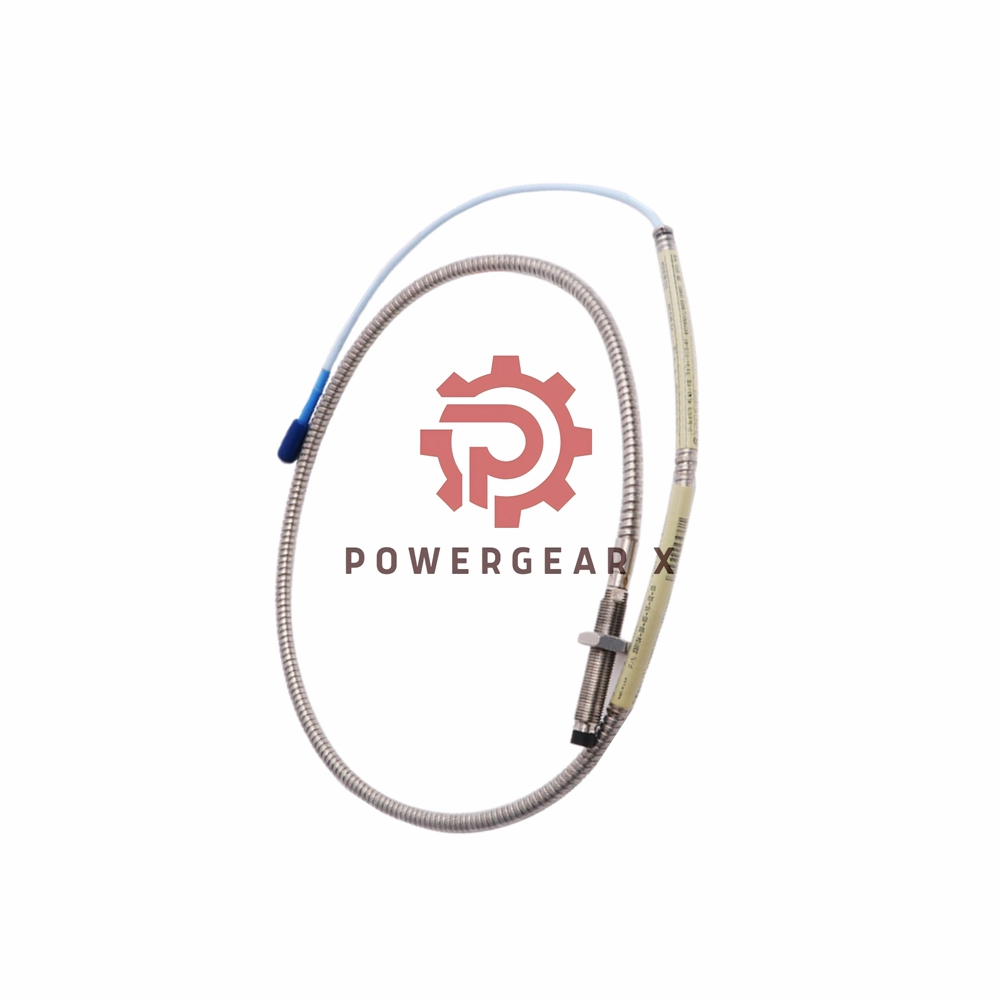

The Bently Nevada 330104-00-08-50-12-00 3300 XL 8 mm Proximity Probe is a high-performance sensor designed for precision measurement applications in industrial environments. This probe features advanced technology that enhances reliability and performance. Notably, it is manufactured in the U.S.A. and is available with a Certificate of Origin (COO).
Technical Specifications
- Manufacturer: Bently Nevada
- Product No.: 330104-00-08-50-12-00
- Model: 3300 XL 8 mm Probe, M10 x 1 thread, with armor
- Type: 8 mm Proximity Probe
- Unthreaded Length: 00 (0 mm)
- Overall Case Length: 08 (80 mm)
- Total Length: 50 (5.0 meters or 16.4 feet)
- Connector and Cable-Type:
- 12 (Miniature coaxial ClickLoc connector, FluidLoc cable)
- Agency Approval: 00 (Not required)
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 303 or 304 stainless steel (SST)
- Weight: 0.323 kg
- Probe Pressure:
- Designed to seal differential pressure between the probe tip and case.
- Utilizes a Viton® O-ring for sealing; not pressure tested prior to shipment.
- Operational Temperature:
- Standard Probe: -52°C to +177°C (-62°F to +350°F)
- Extended Temperature Range for Probe Tip: -52°C to +218°C (-62°F to +425°F)
- Extended Temperature Range for Probe Cable and Connector: -51°C to +260°C (-60°F to +500°F)
- Relative Humidity: Less than 3% change in Average Scale Factor (ASF) at 93% humidity for up to 56 days, in accordance with IEC standard 68 2 3.
- Power Requirements:
- Requires -17.5 Vdc to -26 Vdc with a maximum consumption of 12 mA.
- Operation with barriers needs -23 Vdc to -26 Vdc.
- Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
- Output Resistance: 50 Ω
Applications
The 3300 XL Proximity Probes are ideally suited for rotating machinery, offering enhanced measurement accuracy and reliability in environments that demand stringent performance metrics.
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
