Proximity Probe Bently Nevada 330104-00-12-10-02-CN

Overview

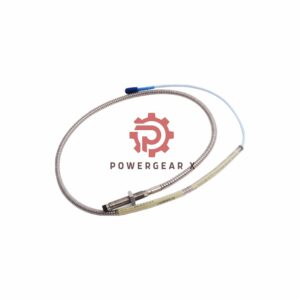

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model No. 330104-00-12-10-02-CN) is an advanced sensing solution designed for high-precision monitoring applications. Manufactured in the USA, this probe ensures reliable performance with its robust construction and innovative design features.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Probe, M10 x 1 thread, with armor
• Product No.: 330104-00-12-10-02-CN
• Type: 8 mm Proximity Probes
• Unthreaded Length: 0 mm
• Overall Case Length: 120 mm
• Total Length: 1.0 meter (3.3 feet)
• Connector and Cable-Type: Miniature coaxial ClickLoc connector, standard cable
• Agency Approval: CN (Country Specific)
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Probe Pressure: Designed to seal differential pressure using a Viton® O-ring
• Weight: 0.323 Kg

Extended Specifications

• Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range Probe: -52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to +500°F) for the probe cable and connector
• Power Supply Requirements:
  • Requires -17.5 Vdc to -26 Vdc with a maximum of 12 mA
  • More positive voltage may reduce linear range
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Probe Humidity Performance: Less than a 3% change in Average Scale Factor (ASF) when tested under 93% humidity for up to 56 days in accordance with IEC standard 68 2 3

Applications

The Bently Nevada 3300 XL 8 mm probes are ideal for various industrial applications requiring precise vibration monitoring and condition-based maintenance. Their robust design ensures reliability in challenging environments.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
