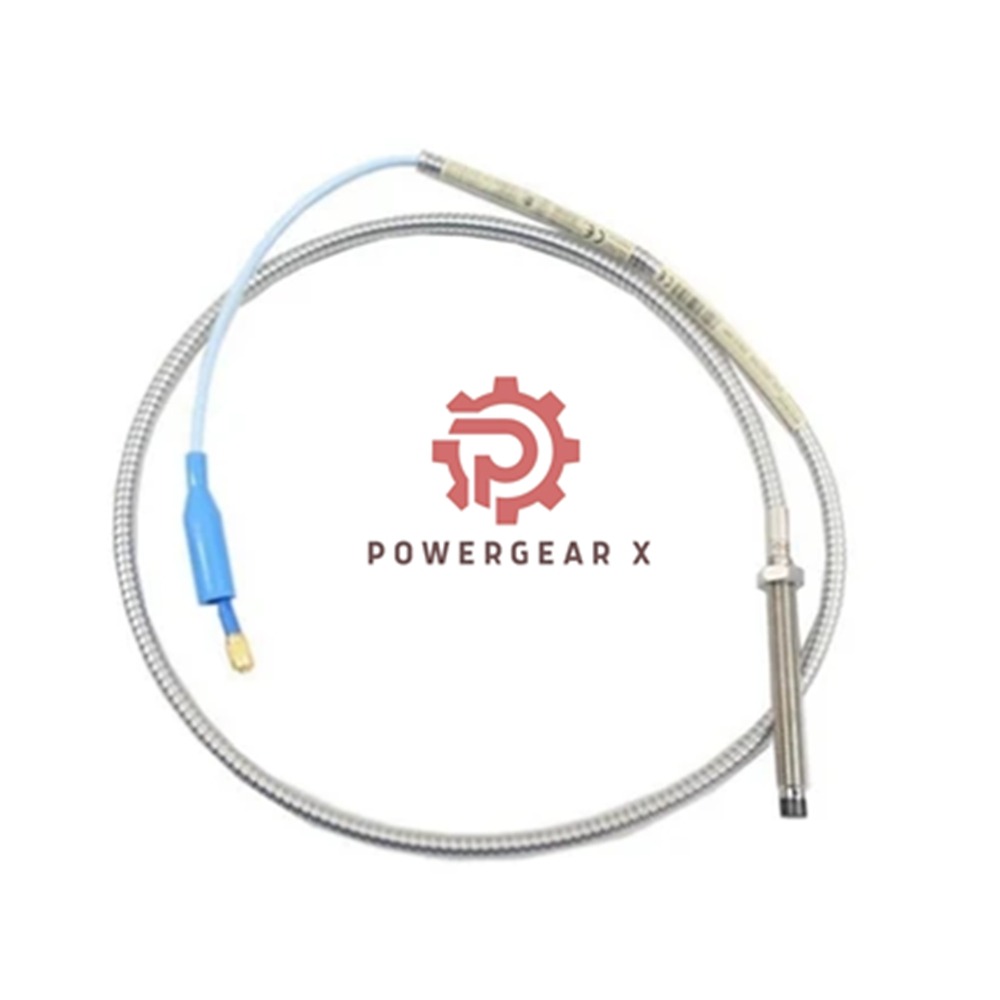

Proximity Probe Bently Nevada 330104-00-15-10-02-05 With Armor

Overview

The Bently Nevada 3300 XL 8 mm Proximity Probe (Part No. 330104-00-15-10-02-05) is a high-performance sensor designed for industrial applications, ensuring accurate distance measurements in various conditions. This robust device is manufactured in the USA and features advanced materials and technologies for reliable operation.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL
• Product Type: 8 mm Proximity Probe
• Product Number: 330104-00-15-10-02-05

  Options Breakdown:

  • Unthreaded Length:
    • 00 = 0 mm (Unthreaded)
  • Overall Case Length:
    • 15 = 150 mm
  • Total Length:
    • 10 = 1.0 meter (3.3 feet)
  • Connector and Cable Type:
    • 02 = Miniature coaxial ClickLoc™ connector, standard cable
  • Agency Approval:
    • 05 = CSA, ATEX, IECEx approvals
• Materials:
  • Probe Tip Material: Polyphenylene sulfide (PPS)
  • Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Weight: 0.323 kg
• Pressure Sealing:
  • Designed to seal differential pressure using a Viton® O-ring
  • Not pressure tested prior to shipment
• Performance Characteristics:
  • Operating temperature range: -52°C to +177°C (-62°F to +350°F)
  • Extended temperature range for the tip: -52°C to +218°C (-62°F to +425°F)
  • Extended temperature range for cable and connector: -51°C to +260°C (-60°F to +500°F)
  • Relative humidity resistance: less than a 3% change in Average Scale Factor (ASF) at 93% humidity for up to 56 days
• Power Requirements:
  • Requires -17.5 Vdc to -26 Vdc for normal operation
  • 12 mA maximum consumption
  • Output resistance: 50 Ω
  • Sensitivity: less than 2 mV change in output voltage per volt change in input voltage
• Cable Design: Features CookieCall™ for enhanced strength, ensuring secure attachment.

FAQs

1. What are the environmental conditions for the 3300 XL probes?
   • They operate best between +18˚C and +27˚C at altitudes up to 2000 meters.
2. Can the probes be customized for different applications?
   • Yes, custom designs can be requested for specific pressure testing needs.
3. What approvals do these probes have?
   • The probes have CSA, ATEX, and IECEx approvals for safe operation in hazardous areas.
4. What is the purpose of the FluidLoc cable option?
   • This option helps prevent oil or liquids from leaking through the cable, ensuring a clean and safe monitoring environment.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
