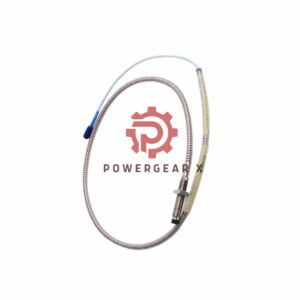

Proximity Probe Bently Nevada 330104-03-12-10-02-00 With Armor

Overview

The 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probes by Bently Nevada are engineered for high-performance monitoring of rotating machinery. With robust construction and innovative design features, these probes provide accurate measurements in challenging environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL
• Product No.: 330104-03-12-10-02-00
• Suffix Meaning:
  • 03: Unthreaded Length Option = 30 mm
  • 12: Overall Case Length Option = 120 mm
  • 10: Total Length Option = 1.0 meter (3.3 feet)
  • 02: Connector and Cable-Type Option = Miniature coaxial ClickLoc connector, standard cable
  • 00: Agency Approval Option = Not required
• Material:
  • Probe Tip Material: Polyphenylene sulfide (PPS)
  • Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Weight: 0.323 kg
• Design Pressure:
  • Probes are designed to seal differential pressure using a Viton® O-ring.
  • They are not pressure tested before shipment.
• Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range Probe:
    • Tip: -52°C to +218°C (-62°F to +425°F)
    • Cable & Connector: -51°C to +260°C (-60°F to +500°F)
• Relative Humidity: Change in Average Scale Factor (ASF) remains less than 3% when tested in 93% humidity according to IEC standard 68 2 3 for 56 days.
• Power Supply Requirements:
  • Requires -17.5 Vdc to -26 Vdc with a 12 mA maximum consumption; operates with barriers at -23 Vdc to -26 Vdc.
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
