Proximity Probe Housing Assemblies | 21000-16-10-00-066-03-02

Overview

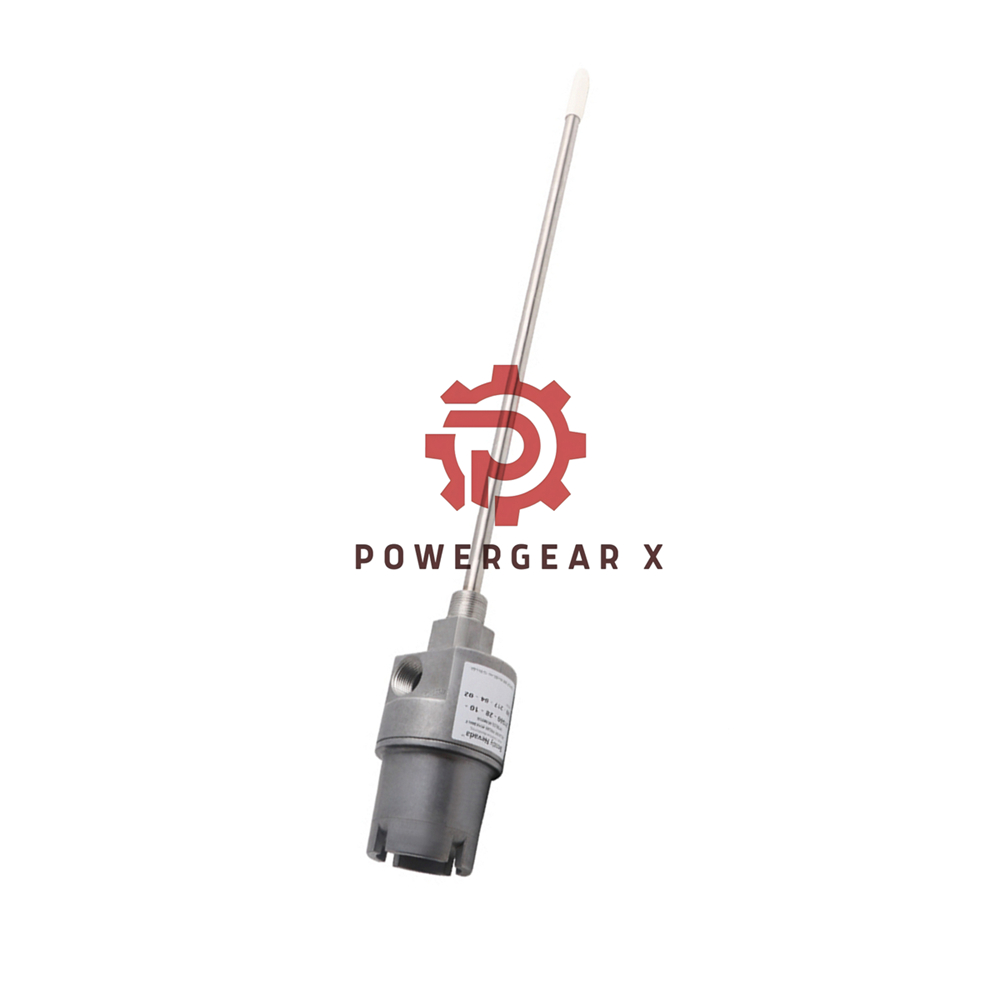

The Bently Nevada 21000-16-10-00-066-03-02 Proximity Probe Housing Assembly offers robust protection and functionality for your industrial machinery. Designed for hazardous areas, this housing assembly is explosion-proof and fully compliant with CSA and API 670 standards. It features a durable aluminum body with a 304 stainless steel sleeve for added strength and corrosion resistance. Ideal for applications requiring high precision, the 21000 series provides secure mounting and reliable protection for proximity probes, making it suitable for various industries, including oil and gas, power generation, and manufacturing.

Technical Specifications

• Brand: Bently Nevada
• Model: 21000
• Material: Aluminum body with a 304 stainless steel sleeve
• Weight: 1.1 kg (2.4 lb) typical, without fittings
• Maximum Dimensions:
  • 0.5 m Cable Length, Not visible probe: 13.5 in (34.3 cm)
• Warranty: 12 months (Factory Warranty)
• Condition: New & Original in Factory Packing

Ordering Information

The 21000-16-10-00-066-03-02 Proximity Probe Housing Assemblies are available with several configuration options to suit your specific needs.

• Probe Option:
  • -16: 3300 XL 8 mm probe
• Probe Cable Length:
  • -10: 1.0 m (39 in)
• Standoff Adapter:
  • 00: No standoff adapter
• Probe Penetration:
  • -066: 6.6 in
• Fitting Option:
  • -03: Includes one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with grommets for multiple cable sizes
• Mounting Thread Option:
  • -02: 3/4-14 NPT (Must be ordered if Standoff Adapter Length Option is not -00)

FAQ

1. What is the maximum probe cable length for the 21000 housing assembly?

2. The maximum probe cable length is 1.0 m (39 in).

3. Can I use the 21000 series in hazardous environments?

4. Yes, the 21000 Proximity Probe Housing is explosion-proof and rated for hazardous areas.

5. Is the 21000 compatible with intrinsically safe probes?

6. Yes, the 21000 is suitable for use with intrinsically safe probes, with CSA certifications.

7. What are the material options for the housing?

8. The housing features an aluminum body and a stainless steel sleeve for added strength.

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
