Proximity Probe Housing Assemblies | 21000-16-10-00-144-03-02

Overview:

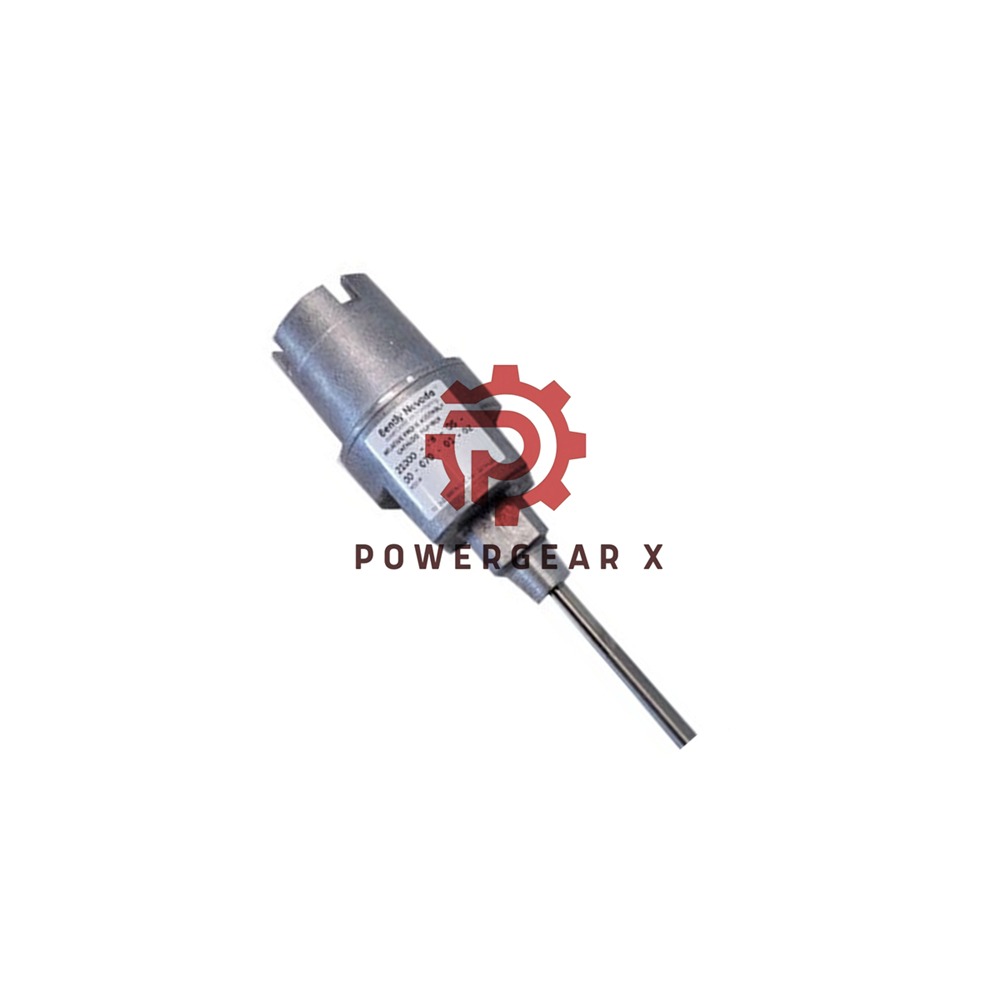

The Bently Nevada 21000-16-10-00-144-03-02 Proximity Probe Housing Assembly is designed for industrial applications requiring reliable and secure probe mounting. It is an explosion-proof housing unit that ensures safety in hazardous areas, meeting CSA and API 670 standards. The assembly consists of a durable aluminum body with a stainless steel sleeve, a dome cover, threaded ports for conduit connections, and a reverse mount proximity probe. This housing is ideal for use with the 3300 XL 8 mm probe, providing seamless integration for precise monitoring.

Technical Specifications:

• Brand: Bently Nevada
• Model: 21000 Proximity Probe Housing Assembly
• Part Number: 21000-16-10-00-144-03-02
• Material: Aluminum body with 304 stainless steel sleeve
• Weight: 1.1 kg (2.4 lb) typical, without fittings
• Probe Cable Length: 1.0 m (39 in)
• Probe Penetration: 14.4 in (36.5 cm)
• Fitting Options:
  • One 3/4-14 NPT plug
  • One 3/4-14 to 1/2-14 NPT reducer
  • Cable seal grip with grommets for multiple cable sizes (1/8-3/16 in, 1/4-5/16 in, 5/16-3/8 in)
• Mounting Thread Option: 3/4-14 NPT
• CSA Approval: Explosion-proof for hazardous areas
• Compliance: API 670 Standard for externally mounted proximity probes

FAQ:

• Q1: What is the probe compatibility for this housing assembly?
  The 21000 assembly is designed for use with the 3300 XL 8 mm proximity probe.
• Q2: What cable lengths are available?
  The standard cable length option is 1.0 m (39 in), but custom options may be available upon request.
• Q4: Can I order custom fittings with this assembly?
  Yes, the assembly comes with several fitting options, including NPT plugs and reducers.

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
