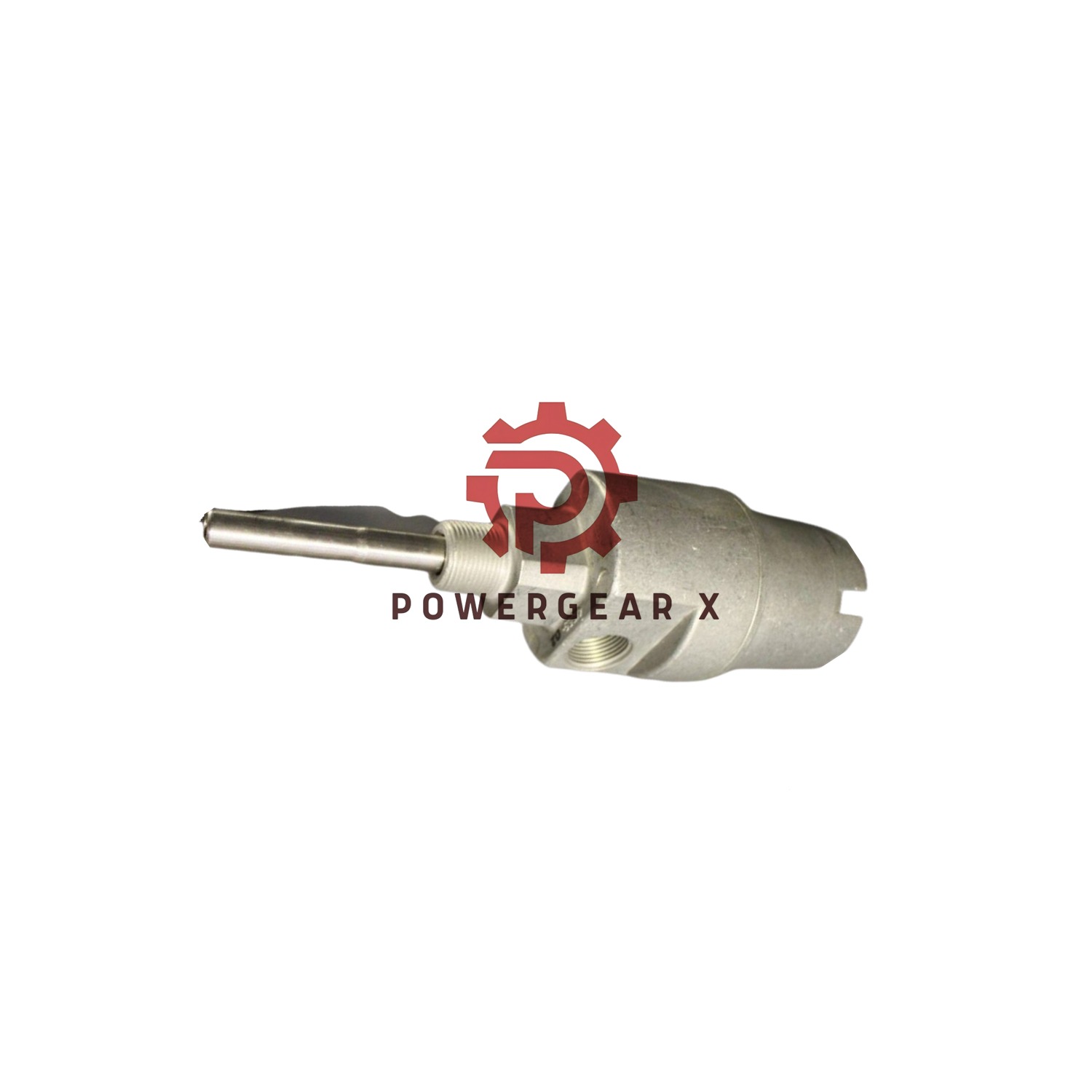

Proximity Probe | Housing Assemblies 21000-28-05-00-040-03-02

Overview:

The Bently Nevada 21000-28-05-00-040-03-02 Proximity Probe Housing Assembly is designed to provide reliable protection for proximity probes in various industrial environments. These housings are built to withstand hazardous conditions and ensure long-lasting performance, making them ideal for use in both regular and explosion-proof applications. Constructed with an aluminum body and 304 stainless steel sleeve, the assembly offers durability and flexibility, with CSA approvals for hazardous areas.

Technical Specifications:

• Brand: Bently Nevada
• Model: 21000 Proximity Probe Housing Assemblies-21000-28-05-00-040-03-02
• Material: Aluminum body with 304 stainless steel sleeve
• Weight: 1.1 kg (2.4 lbs) typical (without fittings)
• Approvals: CSA Type 4 (Explosion Proof)
• Operating Environment: Hazardous and explosive areas
• Temperature Range: Suitable for harsh industrial environments

Ordering Information:

To customize the Proximity Probe Housing Assembly (21000 – AA-BB-CC-DDD-EE-FF), use the following suffix codes:

• AA: Probe with Connector – 28 3300 XL 8 mm probe
• BB: Probe Cable Length – 05 (0.5 m / 20 in)
• CC: Standoff Adapter Length – 00: No standoff adapter
• DDD: Probe Penetration Length – 040 (4 in)
• EE: Fittings – 03 (Includes plugs, reducers, and cable seals)
• 3/4-14 NPT plug
• 3/4-14 to 1/2-14 NPT reducer
• Cable seal grip with grommets for 1/8 to 3/8 inches cable sizes
• FF: Mounting Thread – 02 (3/4-14 NPT)

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
