Proximity Probe Housing Assemblies | 21000-28-05-20-035-04-02

Overview

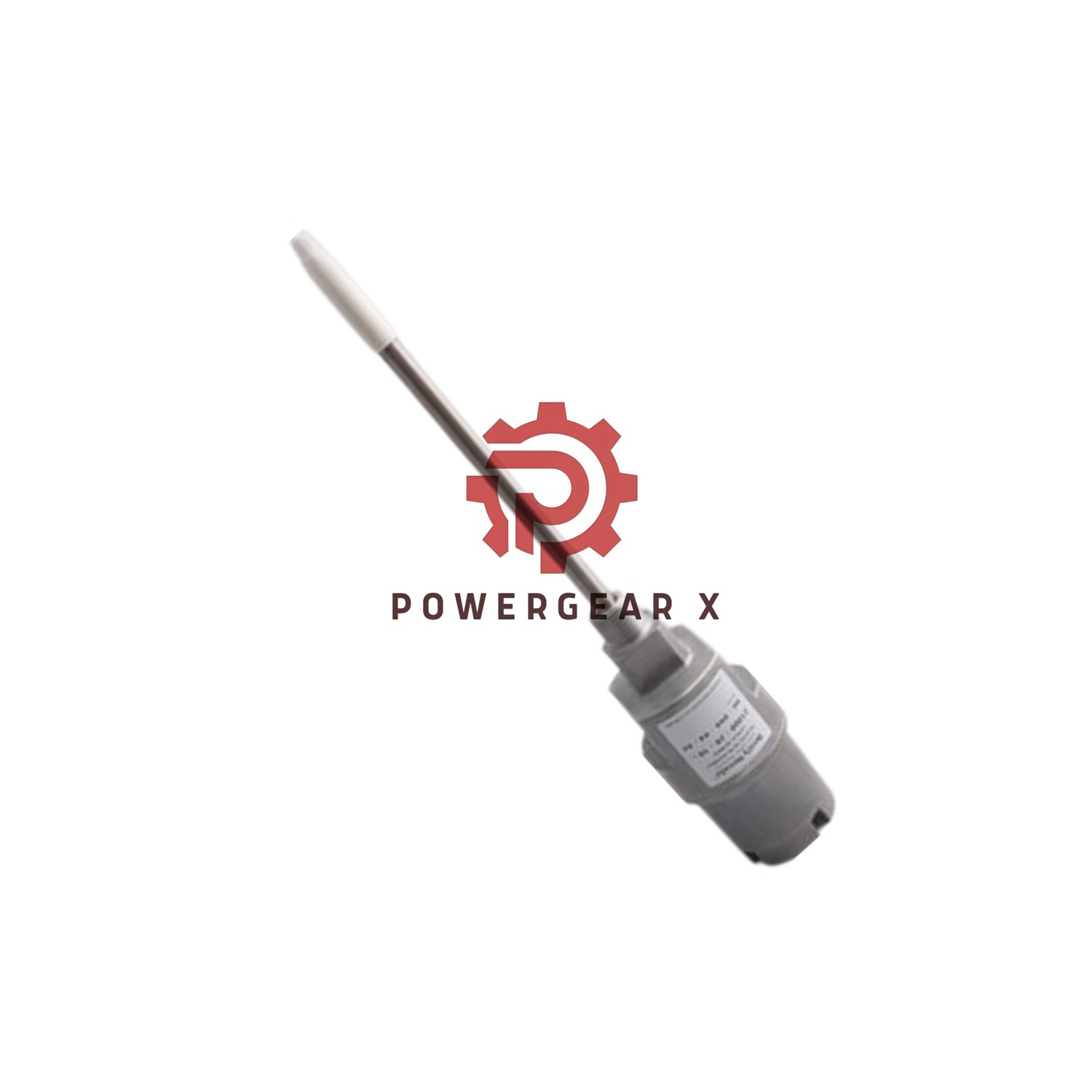

The Bently Nevada 21000-28-05-20-035-04-02 Proximity Probe Housing Assemblies are designed to support precision measurement and monitoring in industrial applications. Manufactured with an aluminum body and a 304 stainless steel sleeve, these assemblies offer durability and reliable performance. Ideal for hazardous environments, they are explosion-proof and CSA certified for use in intrinsically safe applications. The system includes a dome cover, threaded ports, O-rings, and a reverse mount proximity probe, ensuring ease of installation and long-lasting operation.

Ordering Information

The model code for the Proximity Probe Housing Assemblies is structured as follows:

• 21000 – Model designation for proximity probe housing
• A: Probe with connector (28 3300 XL 8 mm probe)
• B: Probe cable length (05: 0.5 meters)
• C: Standoff adapter length (20: 2 inches)
• D: Probe penetration (035: 3.5 inches)
• E: Fittings option (04: 3/4-14 NPT plug)
• F: Mounting thread option (-02: 3/4-14 NPT)

Technical Specifications

• Brand: Bently Nevada
• Model: 21000-28-05-20-035-04-02
• Material: Aluminum body with a 304 stainless steel sleeve
• Probe Cable Length: 0.5 meters (20 inches)
• Maximum Penetration (C+D): 13.5 inches (34.3 cm)
• Weight: 1.1 kg (2.4 lb) without fittings
• Certifications: CSA Type 4, API 670 compliant

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
