Proximity Probe Housing Assemblies 21000-34-05-30-30-01-02

Overview

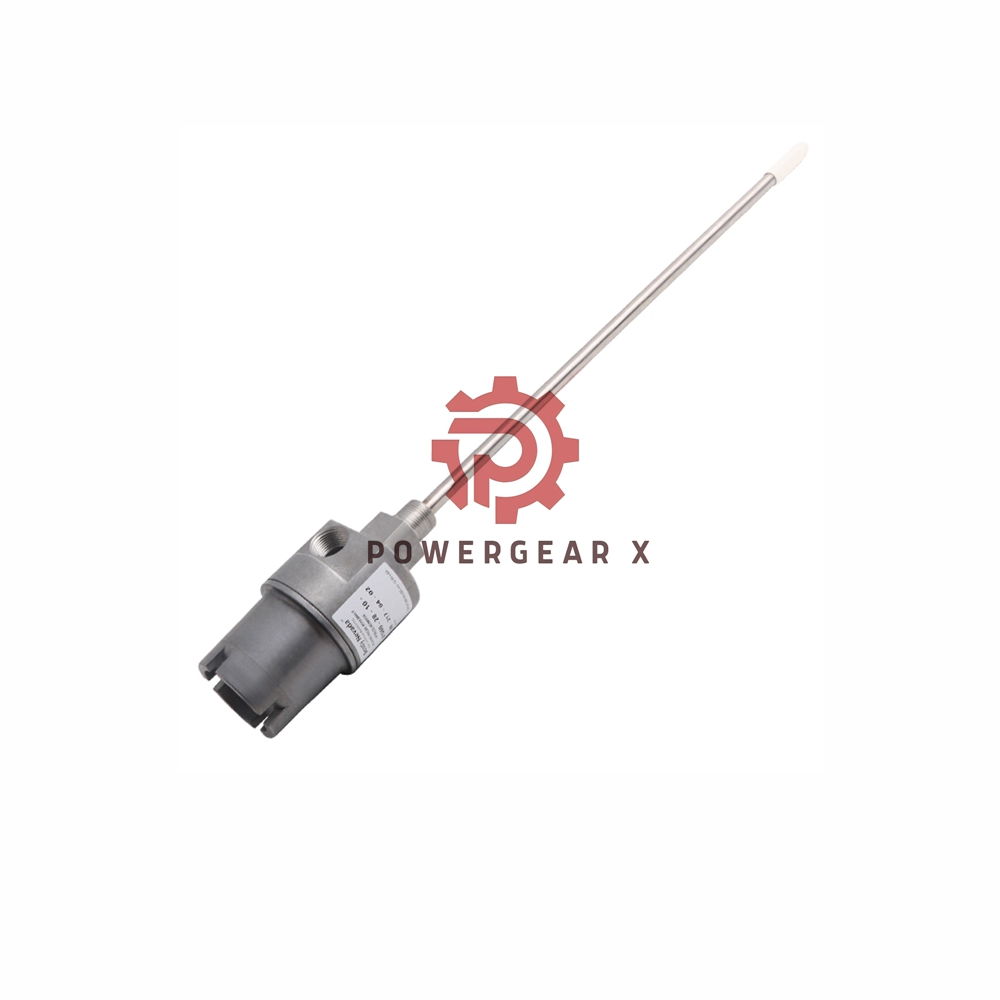

The Bently Nevada 21000-34-05-30-30-01-02 Proximity Probe Housing Assembly is a robust and versatile solution for housing reverse-mount proximity probes. Designed with durability in mind, it features a lightweight aluminum body with a 304 stainless steel sleeve, ensuring reliability in challenging industrial environments. This assembly is ideal for protecting probes in applications requiring explosion-proof fittings and precise mounting configurations.

Features

1. Robust Construction: Aluminum body with a stainless steel sleeve for corrosion resistance.
2. Customizable Configurations: Multiple probe cable length options, penetration depths, and standoff adapter lengths.
3. Explosion-Proof Fittings: Includes one explosion-proof fitting and one plug for safety in hazardous areas.
4. Connector Protection: Probe options include a 3300 XL 8 mm probe with a connector protector and multiple approvals.
5. Threaded Ports: Designed for secure conduit connections.
6. Optional Standoff Adapter: Provides flexibility in probe penetration and mounting thread options.

Technical Specifications

• Brand: Bently Nevada
• Model: 21000-34-05-30-30-01-02
• Material: Aluminum housing with 304 stainless steel sleeve
• Weight: 1.1 kg (2.4 lb) typical, without fittings
• Probe Option: 34 – 3300 XL 8 mm probe with connector protector
• Probe Cable Length: 05 – 0.5 m (20 in)
• Standoff Adapter: 30 – 3.0 in
• Probe Penetration: 30 – 3 in
• Fittings: 01 – One explosion-proof fitting and one plug
• Mounting Thread: 02 – 3/4-14 NPT (required if Standoff Adapter Length is not 00)

Suffix Definitions:

• 34: 3300 XL 8 mm probe with connector protector
• 05: 0.5-meter probe cable length
• 30: 3.0-inch standoff adapter length and penetration depth
• 01: One explosion-proof fitting and one plug
• 02: Mounting thread size of 3/4-14 NPT

Frequently Asked Questions (FAQ)

1. What type of probes can this housing accommodate?
It is designed for reverse-mount proximity probes, specifically the 3300 XL 8 mm model with connector protection.

2. Is this assembly explosion-proof?
Yes, it includes an explosion-proof fitting and plug for use in hazardous environments.

3. What is the maximum probe cable length supported?
This specific model supports a cable length of 0.5 meters (20 inches).

4. What mounting threads are compatible?
The 3/4-14 NPT thread is provided for secure mounting.

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
