Product details

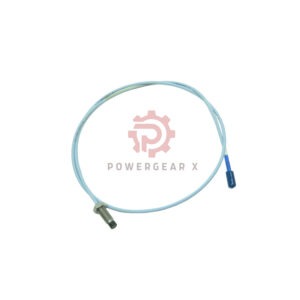

Bently Nevada 3300 XL 8 mm Probe: Model 330101-00-24-10-02-CN
Key Model: 330101-00-24-10-02-CN
Precision vibration monitoring probe with 3/8-24 UNF thread and 8 mm PPS tip. Equipped with patented CableLoc (330 N pull strength) and optional FluidLoc leak-proof cable. Ideal for machinery protection in extreme conditions.
Suffix Configuration
| 00 | 0.0 in unthreaded length |
| 24 | 2.4 in case length |
| 10 | 1.0 m (3.3 ft) total cable |
| 02 | Standard ClickLoc connector |
| CN | China-specific certifications |
Technical Specifications
| Brand | Bently Nevada |
| Resistance | 7.59Ω ±0.50 @1.0m |
| Temperature | -62°F to +500°F (cable/connector) |
| Linear Range | 0.25–2.3 mm (10–90 mils) |
| Accuracy | ±0.025mm deviation (1m/5m systems) |
| Case Material | AISI 303/304 stainless steel |
Key Features
- Rugged Build: 8mm PPS tip resists mechanical stress
- Humidity Resistance: <3% ASF drift @93% RH (56 days)
- Long-Distance: Supports 1,000 ft shielded triad wiring
- Pressure Seal: Viton O-ring (testable on request)
Contact: Email [email protected] for technical queries or certifications.
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
