Overview

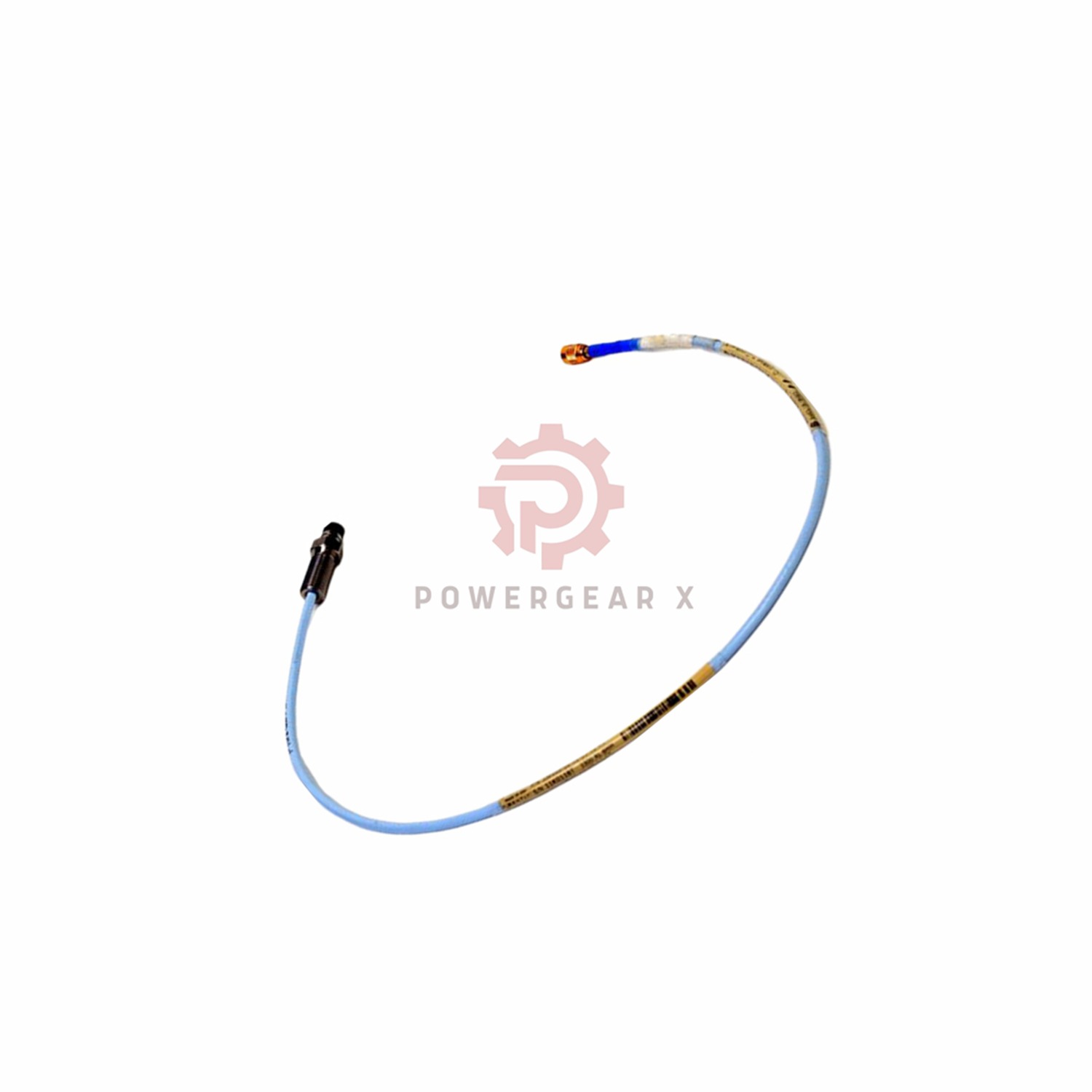

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330101-00-32-05-02-CN) is a high-performance vibration monitoring sensor designed for industrial applications. Featuring a robust 8 mm diameter, this probe ensures durability and reliability in harsh environments. Additionally, it incorporates advanced technologies such as TipLoc and CableLoc for enhanced performance. Moreover, it is available with optional FluidLoc for improved fluid resistance. The “CN” suffix indicates country-specific approvals, making it suitable for use in regions with specific regulatory requirements. The probe is designed with a 3.2-inch case length, making it ideal for applications requiring extended reach.

Technical Specifications

Model: 330101-00-32-05-02-CN

• Brand: Bently Nevada
• Product No.: 330101-00-32-05-02-CN
  • 00: Unthreaded Length (0.0 in)
  • 32: Overall Case Length (3.2 in)
  • 05: Total Length (0.5 meter / 1.6 feet)
  • 02: Miniature coaxial ClickLoc connector, standard cable
  • CN: Country-Specific Approval
• Thread Type: 3/8-24 UNF
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel
• Temperature Range:
  • Standard: -52°C to +177°C (-62°F to +350°F)
  • Extended: -52°C to +218°C (-62°F to +425°F)
• Linear Range: 2 mm (80 mils)
• Nominal Probe DC Resistance: 7.45 ± 0.50 Ω
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
• Weight: 323 g/m (11.4 oz)

• Deviation from Best Fit Straight Line (DSL):
  • Standard 5 or 1 meter System: Less than ±0.025 mm (±1 mil)
  • Standard 9 meter System: Less than ±0.038 mm (±1.5 mil)
  • Extended Temperature Range: Less than ±0.038 mm (±1.5 mil)

Contact Information

For any inquiries, please contact: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
