Proximity Probes | 330101-00-52-15-02-05 Bently Nevada

Overview

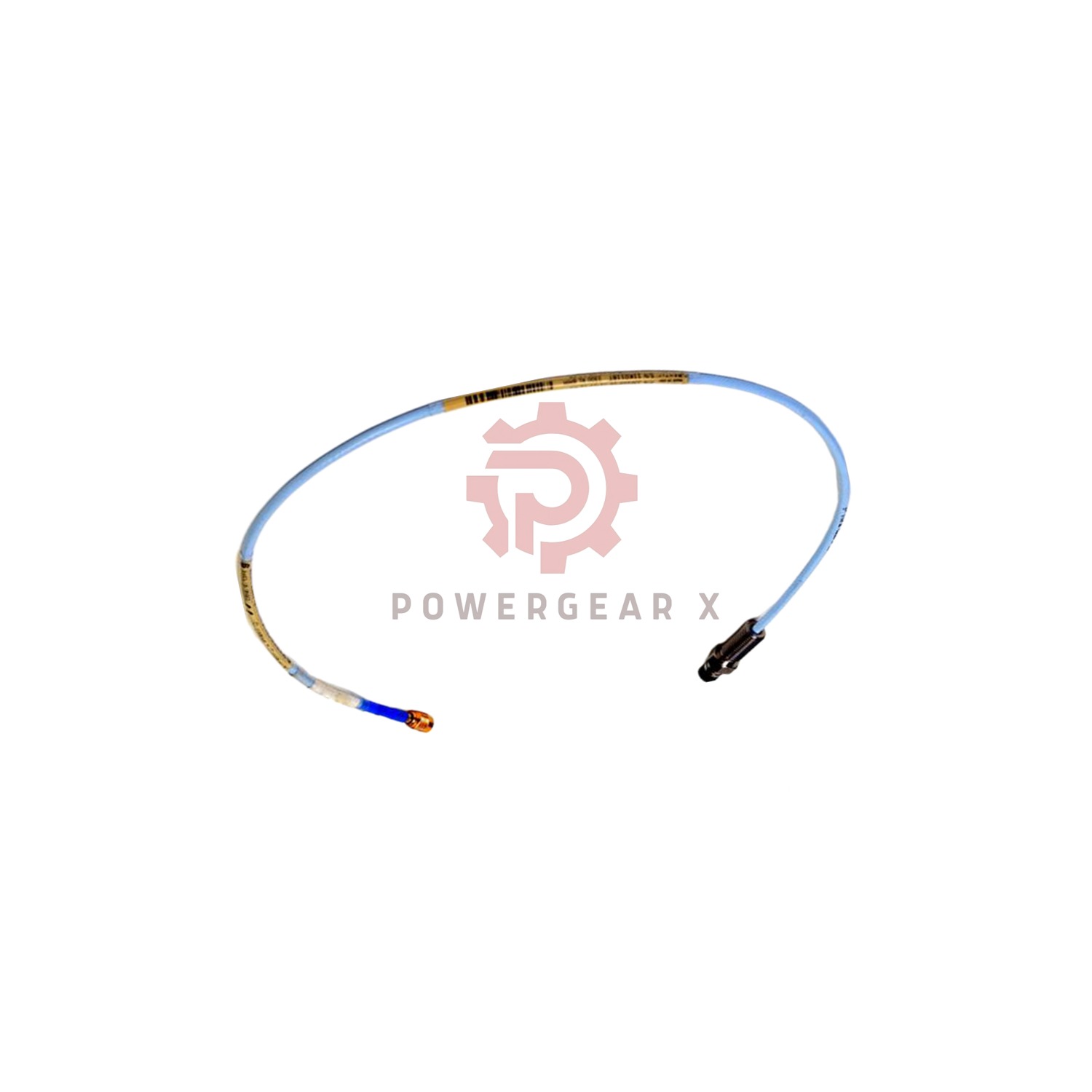

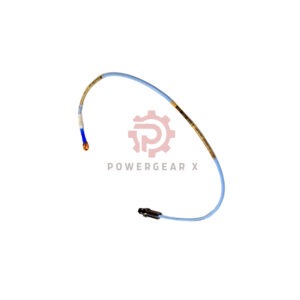

The Bently Nevada 330101-00-52-15-02-05 3300 XL 8 mm Probe is a top – tier product with notable enhancements. It builds on past designs, boasting a patented TipLoc molding method that strengthens the bond between the probe tip and body. The CableLoc design in the cable offers a secure attachment with high pull strength. With approvals like CSA, ATEX, and IECEx, and an option for a FluidLoc cable, it’s a reliable choice for various industrial applications.

Technical Specification

• Brand
  • Bently Nevada
• Model
  • 3300 XL 8 mm Probe
• Product No. 330101-00-52-15-02-05 Details
  • “00” represents an unthreaded length of 0.0 in
  • “52” indicates an overall case length of 5.2 in
  • “15” stands for a total length of 1.5 meters
  • “02” denotes a Miniature coaxial ClickLoc connector with a standard cable
  • “05” implies CSA, ATEX, and IECEx Approvals
• Probe DC Resistance
  • At 1.5 m length, RPROBE is 7.73 ± 0.50 Ω
• Extension Cable Capacitance
  • 69.9 pF/m (21.3 pF/ft) typically
• Linear Range
  • 2 mm (80 mils), starting at approximately 0.25 mm (10 mils) from the target, ranging from 0.25 – 2.3 mm (10 – 90 mils) (about –1 to –17 Vdc)
• Probe Pressure
  • Seals differential pressure between the probe tip and case with a Viton® O ring. Probes are not pressure – tested before shipment.
• Probe Relative Humidity
  • Less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity according to IEC standard 68 2 3 for up to 56 days.

Contact Information

For inquiries, please reach out to: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
