Product details

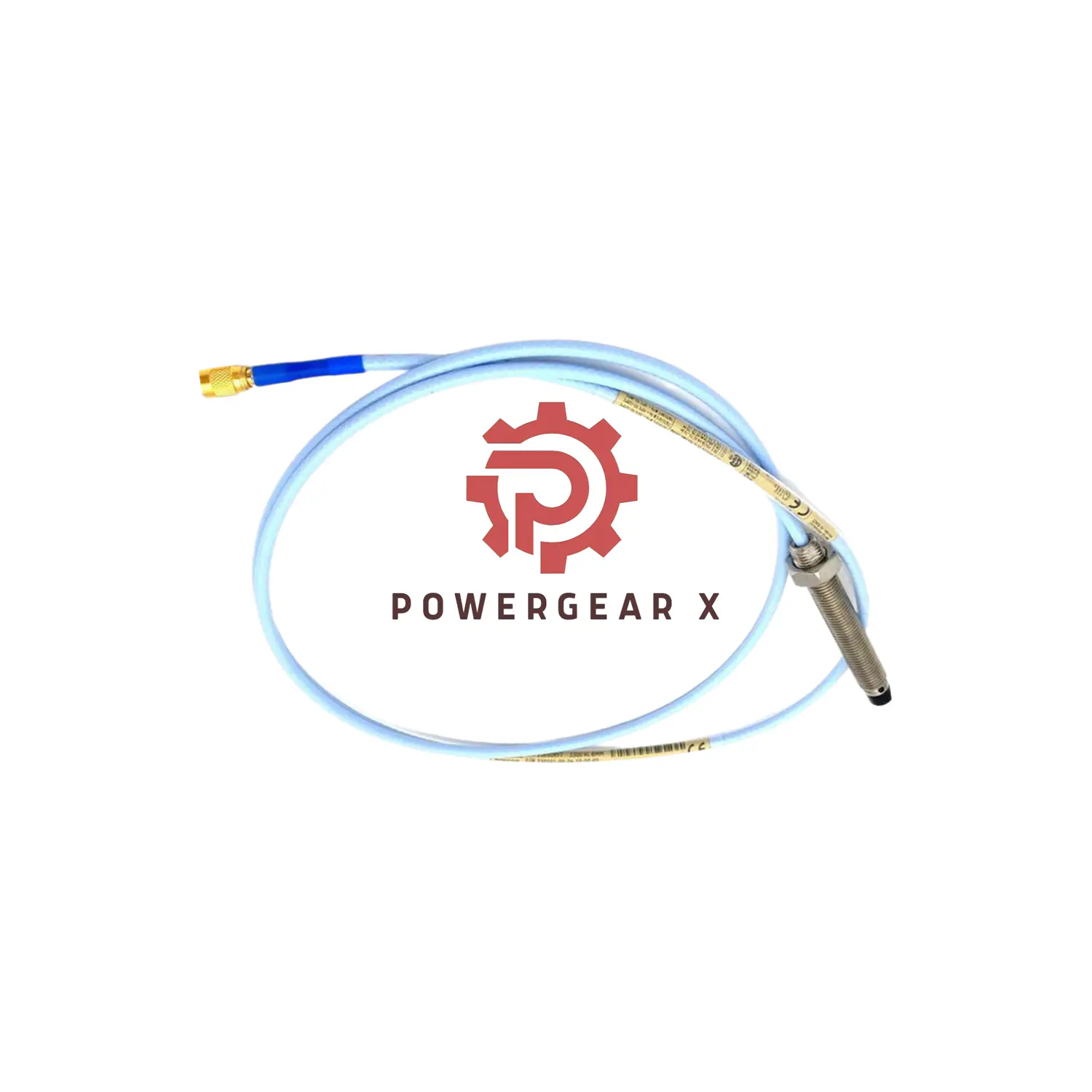

Bently Nevada 3300 XL 8 mm Probe: Model 330101-46-65-10-02-CN
Key Identifier: 330101-46-65-10-02-CN
High-performance vibration monitoring probe with 3/8-24 UNF thread and 8 mm PPS tip. Features patented CableLoc/TipLoc technology (330 N pull strength) and optional FluidLoc leak-proof cable for industrial applications.
Suffix Configuration
| 46 | 4.6 in unthreaded length |
| 65 | 6.5 in case length |
| 10 | 1.0 m (3.3 ft) total cable |
| 02 | Standard ClickLoc connector |
| CN | China-specific certifications |
Technical Specifications
| Brand | Bently Nevada |
| Resistance | 7.59Ω ±0.50 @1.0m |
| Temperature Range | -62°F to +500°F (cable/connector) |
| Linear Range | 0.25–2.3 mm (10–90 mils) |
| Accuracy | ±0.025mm linear deviation |
| Housing | AISI 303/304 stainless steel |
Key Features
- Durability: 8mm PPS tip resists mechanical stress
- Humidity Stability: <3% ASF drift @93% RH (56 days)
- Long-Distance Support: 305m shielded triad cables
- Sealing: Viton O-ring (custom pressure testing available)
Contact: For technical queries or certifications: [email protected]
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
