Product Overview

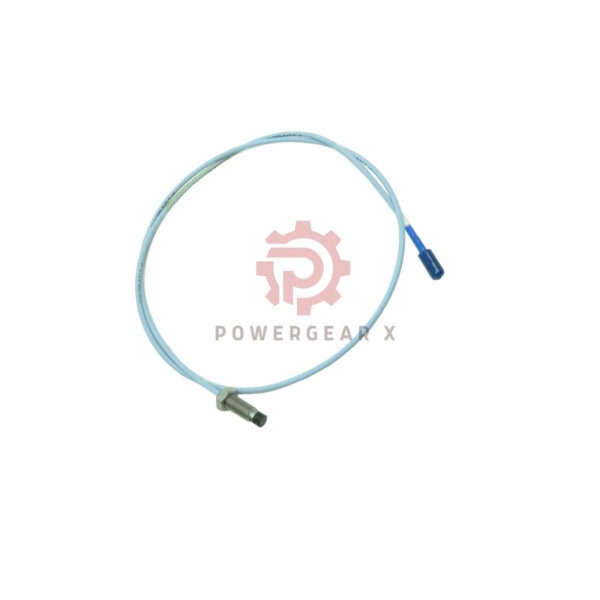

The Bently Nevada 330103-00-03-10-02-05 is a premium 8mm proximity probe designed for precision vibration monitoring in hazardous environments. Featuring a compact 3mm case design and ATEX/IECEx certifications, this industrial-grade sensor delivers reliable performance in critical applications including turbines, compressors, and generators.

Technical Specifications

Basic Information

• Brand: Bently Nevada (Baker Hughes)
• Model: 330103-00-03-10-02-05
• Series: 3300 XL Vibration Monitoring System
• Sensor Type: 8mm Proximity Probe

Model Number Decoding

• 330103: Base model (3300 XL 8mm probe)
• 00: 0mm unthreaded length
• 03: 3mm overall case length
• 10: 1.0 meter cable length
• 02: Miniature coaxial ClickLoc connector
• 05: CSA, ATEX, and IECEx approvals

Electrical Characteristics

• Nominal Resistance: 7.59Ω ±0.50 (center to outer conductor)
• Linear Range: 0.25-2.3mm (10-90 mils)
• Output Range: -1 to -17 Vdc
• Recommended Gap: -9 Vdc (1.27mm/50 mils)
• Max Cable Length: 305m (1000ft) to proximitor

Mechanical Specifications

• Thread Type: M10x1 metric
• Max Thread Engagement: 15mm
• Probe Tip: Polyphenylene sulfide (PPS)
• Case Material: AISI 303/304 stainless steel
• Weight: 323g/m (11.4oz)
• Seal: Viton® O-ring (not pressure tested)

Contact Information

For any inquiries, please contact: sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
