Proximity Probes – Bently Nevada 330101-00-15-05-01-CN

Overview

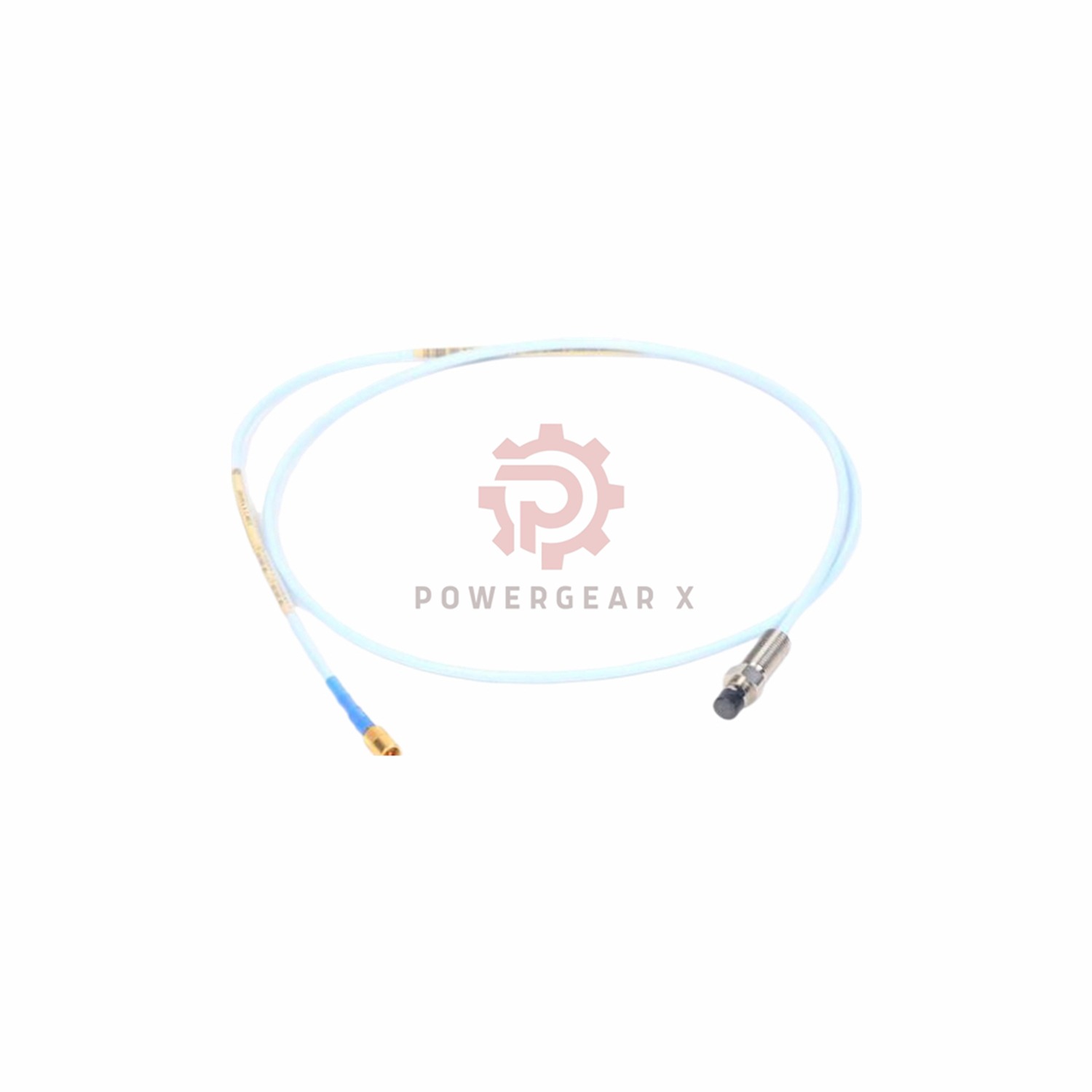

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330101-00-15-05-01-CN) is a high-performance vibration monitoring sensor designed for industrial applications. Featuring a robust 8 mm diameter, this probe ensures durability and reliability in harsh environments. Additionally, it incorporates advanced technologies such as TipLoc and CableLoc for enhanced performance. Moreover, it is available with optional FluidLoc for improved fluid resistance. The “CN” suffix indicates country-specific approvals, making it suitable for use in regions with specific regulatory requirements.

Technical Specifications

Model: 330101-00-15-05-01-CN

• Brand: Bently Nevada
• Product No.: 330101-00-15-05-01-CN
  • 00: Unthreaded Length (0.0 in)
  • 15: Overall Case Length (1.5 in)
  • 05: Total Length (0.5 meter / 1.6 feet)
  • 01: Miniature coaxial ClickLoc connector with standard cable
  • CN: Country-Specific Approval

• Pull Strength: 330 N (75 lbf) for CableLoc design
• Recommended Gap Setting for Radial Vibration: -9 Vdc (~1.27 mm / 50 mils)
• Incremental Scale Factor (ISF):
  • Extended Temperature Range (ETR): 7.87 V/mm (200 mV/mil) ± 6.5%
• Deviation from Best Fit Straight Line (DSL):
  • Standard 5 or 1 meter System: Less than ±0.025 mm (±1 mil)
  • Extended Temperature Range: Less than ±0.038 mm (±1.5 mil)
• Field Wiring Requirements:
  • Maximum Length: 305 meters (1,000 feet)

Contact Information

For any inquiries, please contact: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
