Proximity Probes – Bently Nevada 330101-00-32-05-02-05

Overview

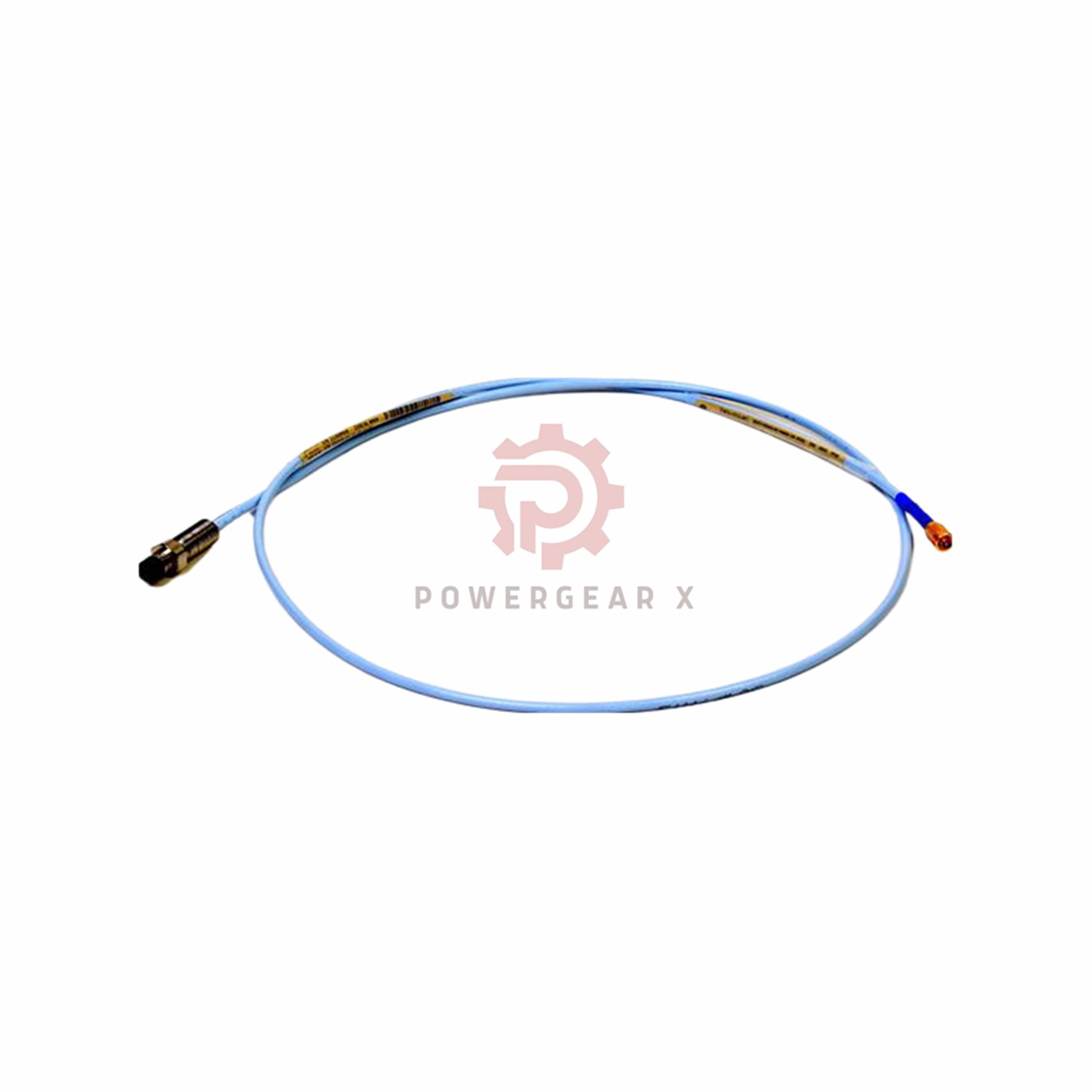

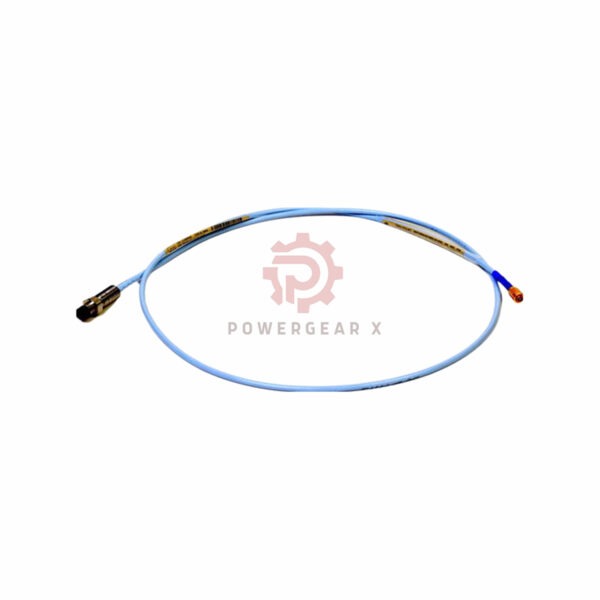

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330101-00-32-05-02-05) is a high-performance vibration monitoring sensor designed for industrial applications. Featuring a robust 8 mm diameter, this probe ensures durability and reliability in harsh environments. Additionally, it incorporates advanced technologies such as TipLoc and CableLoc for enhanced performance. Moreover, it is available with optional FluidLoc for improved fluid resistance. The “05” suffix indicates CSA, ATEX, and IECEx approvals, making it suitable for use in hazardous and regulated environments. The probe is designed with a 3.2-inch case length, making it ideal for applications requiring extended reach.

Technical Specifications

Model: 330101-00-32-05-02-05

• Brand: Bently Nevada
• Product No.: 330101-00-32-05-02-05
  • 00: Unthreaded Length (0.0 in)
  • 32: Overall Case Length (3.2 in)
  • 05: Total Length (0.5 meter / 1.6 feet)
  • 02: Miniature coaxial ClickLoc connector, standard cable
  • 05: CSA, ATEX, and IECEx Approvals
• Temperature Range:
  • Standard: -52°C to +177°C (-62°F to +350°F)
  • Extended: -52°C to +218°C (-62°F to +425°F)
• Linear Range: 2 mm (80 mils)
• Nominal Probe DC Resistance: 7.45 ± 0.50 Ω
• Weight: 323 g/m (11.4 oz)
• Pull Strength: 330 N (75 lbf) for CableLoc design
• Recommended Gap Setting for Radial Vibration: -9 Vdc (~1.27 mm / 50 mils)
• Incremental Scale Factor (ISF):
  • Standard 5 or 1 meter System: 7.87 V/mm (200 mV/mil) ± 5%
  • Standard 9 meter System: 7.87 V/mm (200 mV/mil) ± 6.5%
  • Extended Temperature Range (ETR): 7.87 V/mm (200 mV/mil) ± 6.5%

Contact Information

For any inquiries, please contact: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
