Proximity Probes | Bently Nevada | 330103-00-04-10-01-05

Overview

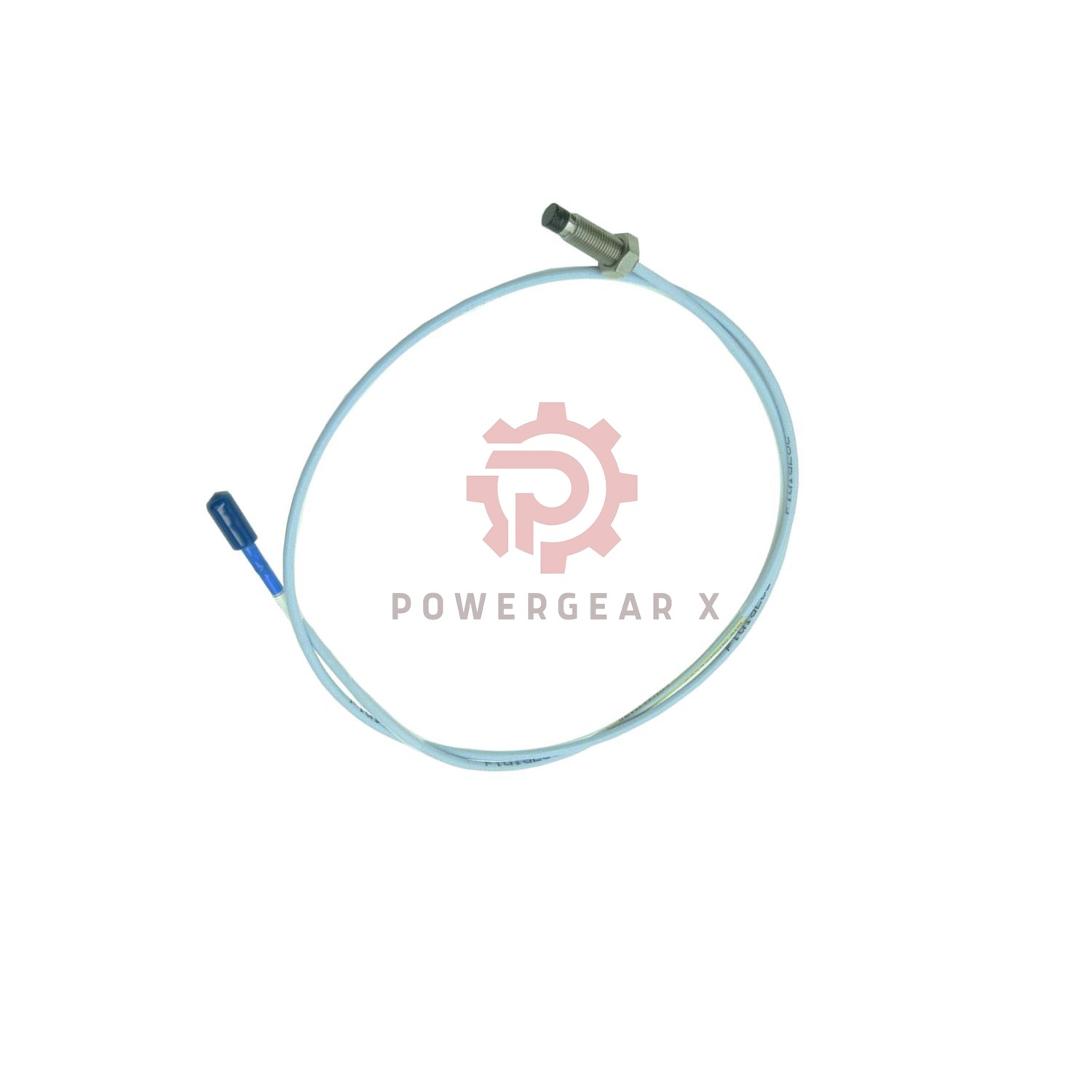

The Bently Nevada 330103-00-04-10-01-05 is a premium 8mm proximity probe designed for critical vibration monitoring in industrial applications. Featuring a rugged stainless steel construction and protected ClickLoc connector, this compact probe delivers reliable performance in demanding environments. With CSA, ATEX and IECEx certifications, it meets the strictest safety standards for hazardous area installations.

Key Features

• 8mm diameter sensing probe with PPS tip material
• Compact 4mm case length for space-constrained installations
• Integrated 1.0 meter cable with connector protector
• Viton® O-ring seal for pressure differential protection
• Certified for use in hazardous locations (Class I, Zone 0)
• Wide operating temperature range (-52°C to +177°C)

Technical Specifications

• Manufacturer: Bently Nevada
• Model: 3300XL 8mm Proximity Probe
• Part Number: 330103-00-04-10-01-05
• Electrical Resistance: 7.59Ω ±0.50 (1m cable)
• Linear Range: 0.25-2.3mm (-1 to -17Vdc output)
• Frequency Response: 0-10kHz (±3dB)
• Thread Specification: M10x1, 15mm minimum engagement
• Ingress Protection: IP67 when properly installed

Applications

Ideal for monitoring critical rotating equipment in:

• Oil & gas processing facilities
• Power generation turbines
• Compressor stations
• Heavy industrial machinery
• Hazardous area installations

Contact Information

For any inquiries, please contact: sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
