PROXPAC XL Proximity Transducer | 330880-16-00-025-03-02

Overview

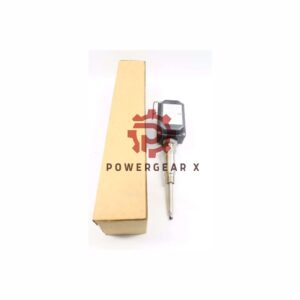

The Bently Nevada 330880-16-00-025-03-02 PROXPAC XL Proximity Transducer is a high-performance assembly designed for proximity measurement in harsh environments. The assembly integrates a 3300 XL 8 mm proximity probe with a self-contained Proximitor sensor, eliminating the need for an external sensor housing or extension cables. Constructed with Polyphenylene Sulfide (PPS) material, it offers superior durability and electrostatic charge dissipation. This robust design ensures reliable operation in extreme conditions, with ratings of Type 4X and IP66 for added protection.

Key Features

• Self-Contained System: Combines probe and Proximitor sensor in a single unit, reducing installation complexity.
• Advanced Material: Made from Polyphenylene Sulfide (PPS) for enhanced durability and electrostatic protection.
• Compact Design: Eliminates the need for extension cables and separate Proximitor housing.
• Harsh Environment Protection: Rated for Type 4X and IP66, ideal for severe conditions.
• Versatile Mounting: Compatible with 3/4-14 NPT fittings for flexible installation.

Technical Specifications

• Brand: Bently Nevada
• Model: 330880-16-00-025-03-02
• Product Type: PROXPAC XL Proximity Transducer
• Probe Length: 1 meter (RPROBE 7.59 ± 0.50 Ω)
• Weight: 1.44 kg
• Voltage Requirements: -17.5 Vdc to -26 Vdc (without barriers), -23 Vdc to -26 Vdc (with barriers)
• Operating Temperature: -39°C (-38°F) to 115°C (239°F)
• Frequency Response: 0 to 10 kHz (±3 dB at 305 meters)
• Housing Strength: Withstands 912 N (205 lbf) at a 38 mm (1.5 in) offset.
• Housing Impact Strength: Certified for 7 Joule (9.5 ft·lb) impact at room temperature and 4 Joule (5.4 ft·lb) at extreme temperatures.
• Mounting Thread: 3/4-14 NPT (for Standoff Adapter Option).
• Probe Penetration: 25 mm.
• Fitting Options: Includes one 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer, and two plugs.

Application

The Bently Nevada 330880-16-00-025-03-02 PROXPAC XL is ideal for use in industries requiring precise proximity measurements in environments with challenging conditions, such as power generation, petrochemical, and heavy industrial applications.

FAQ

Q1: What is the difference between this model and other proximity transducers?
This model integrates the 3300 XL probe with the Proximitor sensor in a single unit, eliminating the need for external components.

Q2: Can this transducer withstand extreme temperatures?
Yes, it has been certified to withstand extreme temperatures, from -39°C to 115°C.

Q3: Is this unit easy to install?
Yes, its self-contained design simplifies installation, as it eliminates the need for additional wiring or sensor housing.

Q4: What is the minimum target size for this probe?
The minimum target size is 15.2 mm (0.6 in) in diameter.

Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
