Reverse Mount Probes | 330907-05-30-05-02-05 Bently Nevada

Overview

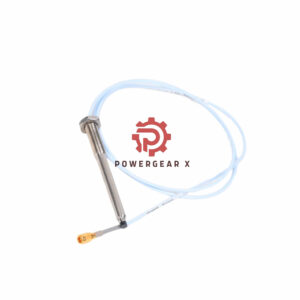

The Bently Nevada 330907-05-30-05-02-05 Reverse Mount Probe is a sophisticated and highly reliable sensing device, designed for process compressor applications. Notably, this probe features improved chemical resistance compared to the earlier 3300 RAM models. As a result, it is ideally suited for environments where challenging chemical exposure occurs. Moreover, with advanced side-view characteristics, the 3300 NSv probe surpasses the performance of the 3000-series 190 probe.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 NSv
• Product Number: 330907-05-30-05-02-05
• Ordering Information:
  • Thread Type: M10x1
  • Total Length Options:
    • 05 = 0.5 meter (20 inches)
  • Connector Options:
    • 02 = Miniature coaxial ClickLoc connector, standard cable
  • Agency Approval Options:
    • 05 = Multiple approvals
• Materials:
  • Probe Tip: Polyphenylene sulfide (PPS)
  • Probe Case: AISI 304 stainless steel (SST)
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Resistance:
  • 0.5m probe has a resistance of 4.0 ± 0.5 ohms

FAQ

1. What is the maximum length for field wiring?
   The maximum length for field wiring is 305 meters (1,000 feet).
2. What is the recommended gap setting?
   The recommended gap setting for optimal performance is 1.0 mm (40 mils).
3. What are the temperature limits for the probe?
   The probe operates effectively within -52°C to +177°C (-62°F to +351°F).

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
