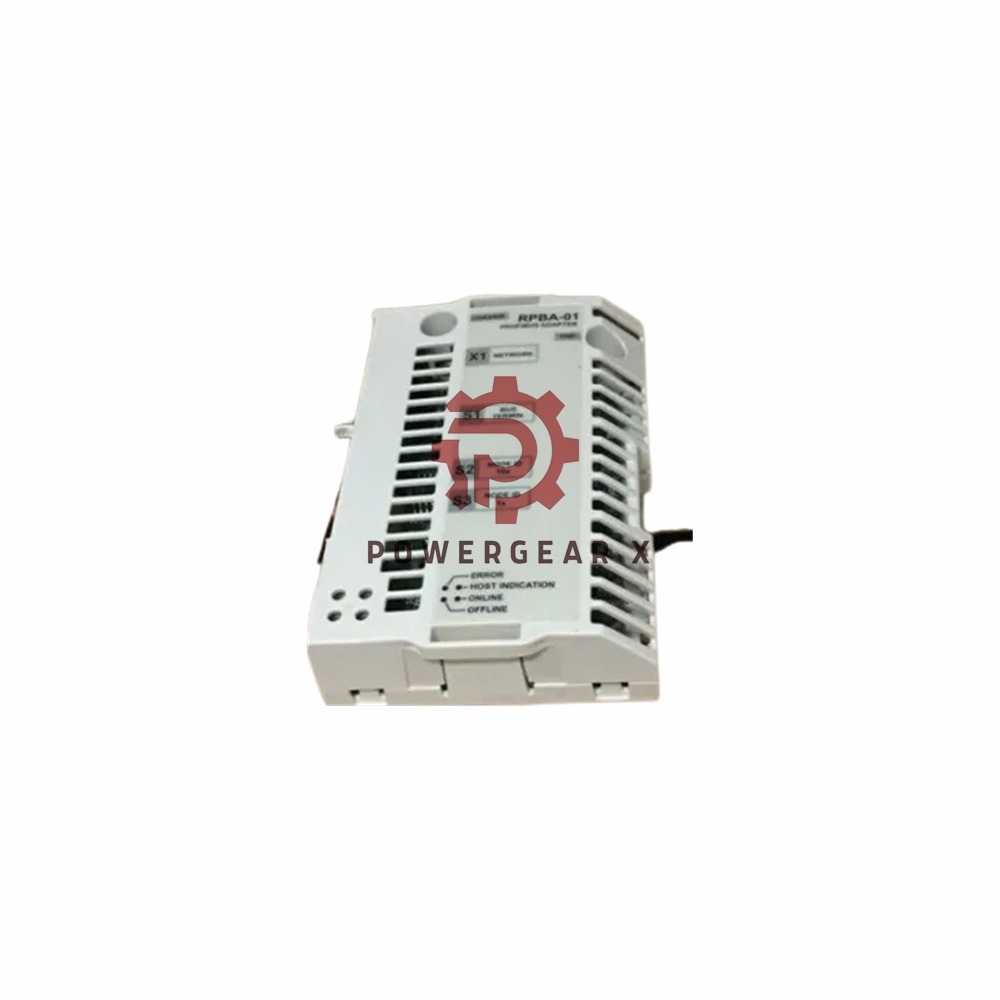

RPBA-01 ABB Profibus DP Communication Adaptor Module

Technical Specifications for RPBA-01:

• Brand: ABB
• Model: RPBA-01
• Suffix Meaning: RPBA denotes the Profibus Adapter, and “01” identifies the specific module variant for Profibus DP communication.
• Hardware Settings:
  • Rotary switches for node address selection (range 00-99).
  • DIP switch for bus termination selection.
• Software Settings:
  • Input/Output/User Parameter data/Diagnostics format.
  • Maximum Cyclic I/O Data Size:
    • 244 bytes (input), 244 bytes (output), 416 bytes total.
  • Maximum User Parameter/Data/Diagnostics Length: 237 bytes.
• Connectors:
  • 34-pin parallel bus connector.
  • 9-pin female DSUB connector for connection to the network.
• Estimated Lifetime: 100,000 hours, ensuring long-term reliability.
• Certifications: UL/CSA-approved materials, ensuring compliance with international standards.
• EMC Standards Compliance: Meets EN 50081-2 and EN 50082-2 standards for electromagnetic compatibility.

Application: This module is ideal for applications in automation systems where reliable communication with Profibus DP networks is required, such as in industrial drives, manufacturing processes, and system monitoring setups.

FAQ:

1. What is the function of the RPBA-01 module?
   • It enables Profibus DP communication for ABB drives, allowing integration into a Profibus network for data exchange and diagnostics.
2. How do I select the Profibus node address?
   • The node address is selected using the rotary switches on the module, with an address range from 00 to 99.
3. Can the module be used with other brands of drives?
   • The RPBA-01 module is specifically designed for use with ABB drives and may not be compatible with drives from other manufacturers.
4. What is the maximum I/O data size the module supports?
   • The module supports up to 244 bytes of input, 244 bytes of output, and a total of 416 bytes of cyclic I/O data.

For more detailed information: Profibus_Adapter_Manual
