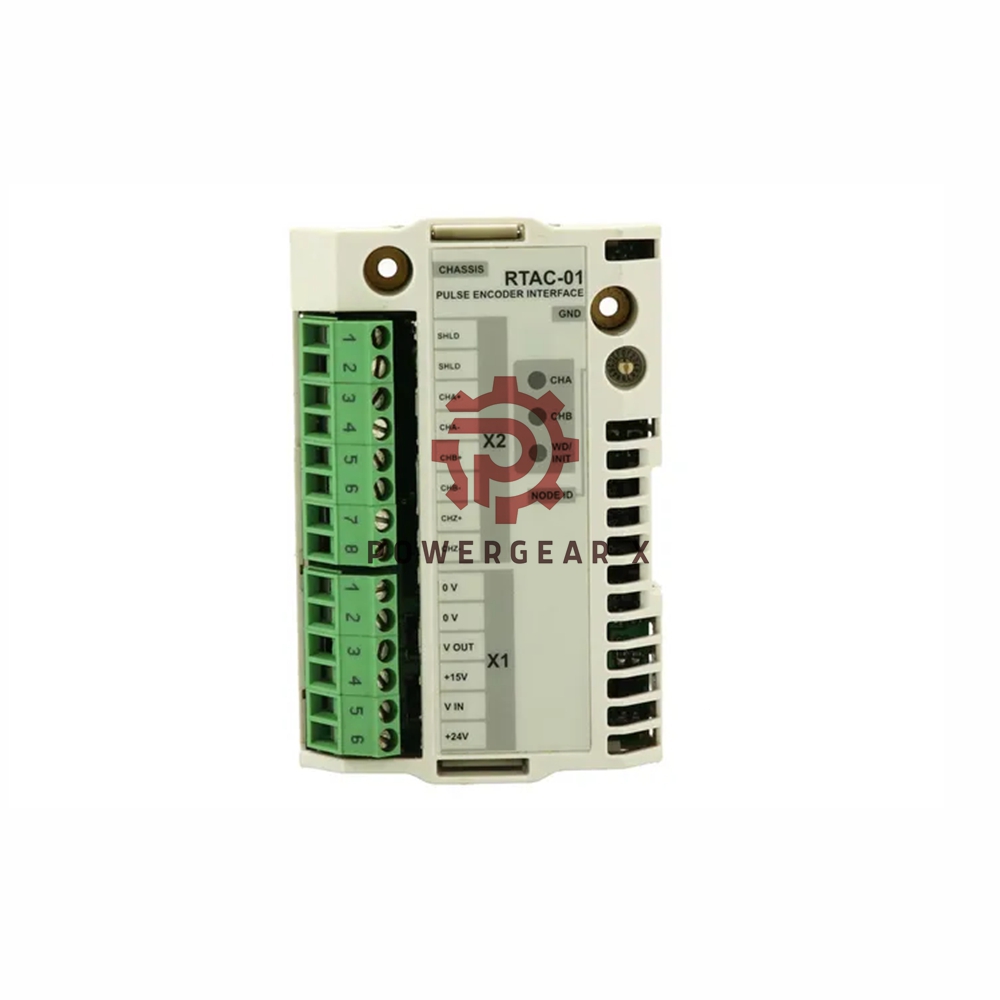

RTAC-01 ABB | 38 Pin Pulse Encoder Interface

Overview

The ABB RTAC-01 Pulse Encoder Interface is a high-performance solution designed for motion control and automation systems, delivering accurate speed and position feedback. It is suitable for use in demanding industrial environments, providing enhanced reliability and robust performance.

Key Features:

• Reliable position and speed feedback
• Suitable for motion control and process monitoring
• Designed to operate in challenging industrial conditions
• High accuracy and long service life (up to 100,000 hours)
• UL/CSA approved materials for compliance with safety standards

Technical Specifications:

• Brand: ABB
• Model: RTAC-01
• Power Supply:
  • Output 1: +24 V DC ±10%, 5 W max., short-circuit proof
  • Output 2: +15 V DC ±10%, 5 W max., short-circuit proof
• Signal Levels:
  • “1” >7.6 V, “0” < 5 V (for 15 V supply)
  • “1” >12.2 V, “0” < 8 V (for 24 V supply)
• Frequency: 200 kHz (maximum)
• Max Power Consumption: 140 mA (5 V) + 55 mA (24 V)
• Test Voltage: 1.5 kV AC, 1 minute
• Life Expectancy: 100,000 hours
• UL/CSA Approval: Materials compliant with UL/CSA standards

FAQ:

1. What is the maximum frequency of the ABB RTAC-01 Pulse Encoder Interface?
   • The maximum frequency is 200 kHz.
2. What is the life expectancy of this interface?
   • The life expectancy is up to 100,000 hours.
3. Is the RTAC-01 Pulse Encoder Interface UL/CSA approved?
   • Yes, the materials used are compliant with UL/CSA standards.

For more detailed information: Pulse Encoder Interface Module
