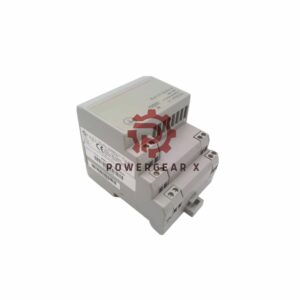

TC-FCCN01 Honeywell ControlNet Gateway Non-Redundant

Overview

The TC-FCCN01 is a ControlNet Gateway designed for use in non-redundant media applications. It facilitates seamless communication within ControlNet networks and supports multiple modules for flexible system integration. The device is engineered to meet industrial communication requirements with robust specifications and reliable performance.

Technical Specifications

• Brand: Honeywell
• Model: TC-FCCN01
• Input Voltage Rating: 24V DC nominal, with a range of 19.2V to 31.2V DC (includes 5% AC ripple).
• Power Supply: Requires Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV) power supply for CE compliance.
• Isolation Voltage: 500V AC between user power and flexbus.
• Power Dissipation: 4.6W maximum at 19.2V DC.
• Dimensions: 87mm x 94mm x 69mm (3.4in x 3.7in x 2.7in).
• Environmental Conditions:
  • Operating Temperature: 0 to 55°C (32 to 131°F).
  • Storage Temperature: -40 to 85°C (-40 to 185°F).
  • Humidity: 5% to 95%, non-condensing.
  • Shock Resistance: 30g peak acceleration with 11(±1)ms pulse width.
  • Vibration Resistance: 50g peak acceleration, 11(±1)ms pulse width.
  • Tested for 5g @ 10-500Hz (IEC 68-2-6).

ControlNet Cabling

• Compatible with Belden RG-6/U Quad Shield for optimal signal integrity.

Wire Specifications:

• Type: Copper (stranded or solid).
• Wire Size: Maximum of 12 gauge (4mm²) stranded.
• Insulation: Maximum of 3/64″ (1.2mm) inch insulation.

FAQ

1. What is the purpose of the TC-FCCN01 Gateway?
   • It serves as a bridge for ControlNet communication in non-redundant media configurations, ideal for industrial networks with a maximum of 8 modules.
2. What power supply is compatible with this unit?
   • The TC-FCCN01 requires a Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV) power supply to comply with CE Low Voltage Directives.
3. Can this gateway support redundant ControlNet cabling?
   • No, this version does not support redundant ControlNet cabling.
4. What is the maximum current available on the Flexbus?
   • The Flexbus output can provide a maximum of 640mA at 5V DC.
5. What are the environmental conditions for using this gateway?
   • The TC-FCCN01 operates in temperatures ranging from 0°C to 55°C (32°F to 131°F) and can be stored in temperatures from -40°C to 85°C (-40°F to 185°F). It also withstands 30g peak shock and 50g peak vibration.

For more detailed information, please check official datasheet: C200-introduction
